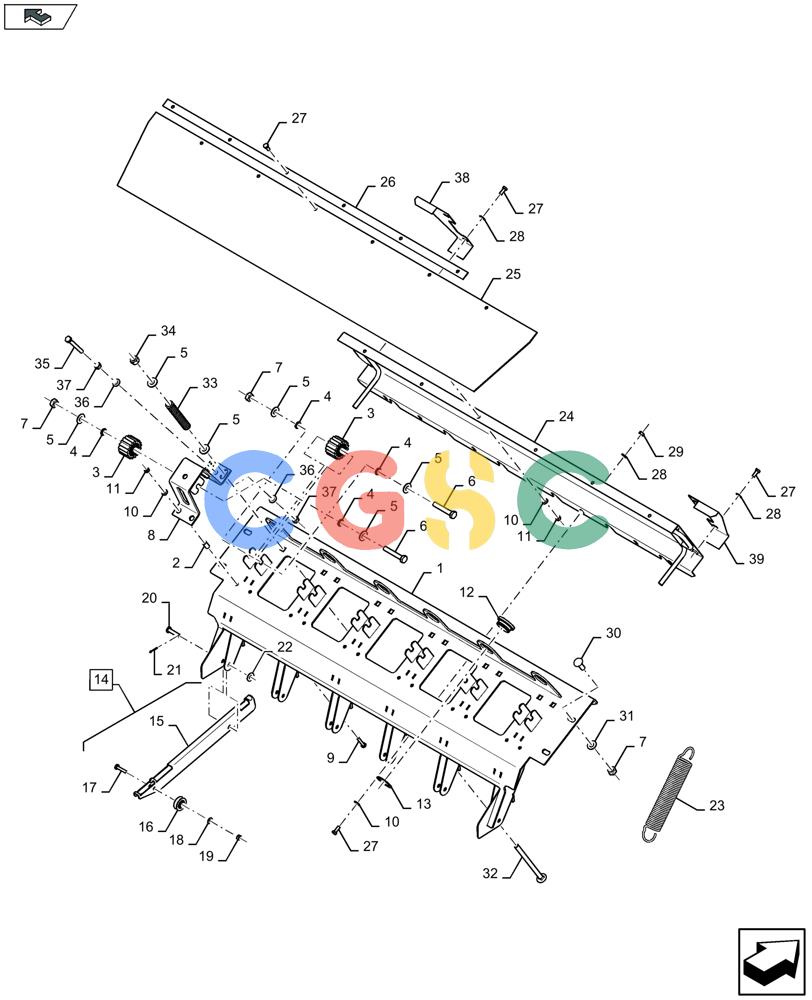

| 1. |
48028770
|
[1] |
MOUNTING PLATE
|
ZED
|
| 2. |
9838894
|
[12] |
SPACER,6.83mm ID x 10.29mm OD x 19mm L
|
ZED
|
| 3. |
87382295
|
[12] |
GEAR
|
ZED
|
| 4. |
87391155
|
[24] |
SPACER,10.5mm ID x 16mm OD x 3mm L
|
ZED
|
| 5. |
378244
|
[48] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 6. |
120070
|
[12] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
|
| 7. |
100016
|
[16] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
87528187
|
[6] |
BRACKET
|
ZED
Superseded by part number: 87528185
|
| 9. |
86977789
|
[12] |
BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8
|
ZED
|
| 10. |
140015
|
[25] |
WASHER,6.4mm ID x 14mm OD x 1.6mm Thk
|
NH
Superseded by part number: 9820463
|
| 11. |
353308
|
[18] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 12. |
84275921
|
[6] |
GUIDE
|
ZED
|
| 13. |
370004
|
[6] |
SNAP RING,M35 x 1.5mm Thk, External
|
NH
Superseded by part number: 11068376
|
| 14. |
84295034
|
[6] |
PLATE
|
ZED
Incl 15 - 19
|
| 15. |
84275888
|
[1] |
ARM
|
ZED
|
| 16. |
87521132
|
[1] |
ROPE GUIDE ROLLER,31.5mm OD x 12mm L
|
ZED
Superseded by part number: 47508395
|
| 17. |
120101
|
[1] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 18. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 20. |
412414
|
[6] |
CLEVIS PIN,M8 x 35
|
ZED
Superseded by part number: 10041211
|
| 21. |
9512667
|
[6] |
COTTER PIN,M2 x 20mm OAL
|
CUR
|
| 22. |
378243
|
[6] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 23. |
87729344
|
[6] |
TENSION SPRING
|
ZED
|
| 24. |
47982656
|
[1] |
PROTECTION PLATE
|
ZED
|
| 25. |
47982882
|
[1] |
CANVAS
|
ZED
|
| 26. |
84078865
|
[1] |
FIXING PLATE
|
ZED
|
| 27. |
86508568
|
[17] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 29. |
9706755
|
[7] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 30. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 31. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 32. |
84018757
|
[12] |
BOLT,M10 x 1.5 x 160mm, CL 4.6
|
ZED
|
| 33. |
9838888
|
[12] |
SPRING
|
ZED
Superseded by part number: 858027
|
| 34. |
412141
|
[12] |
NUT,M10 x 1.5, Cl 8
|
ZED
Superseded by part number: 190003888452
|
| 35. |
120062
|
[6] |
BOLT,Hex, M8 x 70mm, Cl 8.8
|
NH
Superseded by part number: 7120024
|
| 36. |
322358
|
[12] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 37. |
9706690
|
[12] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 38. |
47984657
|
[1] |
PROTECTION PLATE
|
ZED
|
| 39. |
47984660
|
[1] |
PROTECTION PLATE
|
ZED
|
