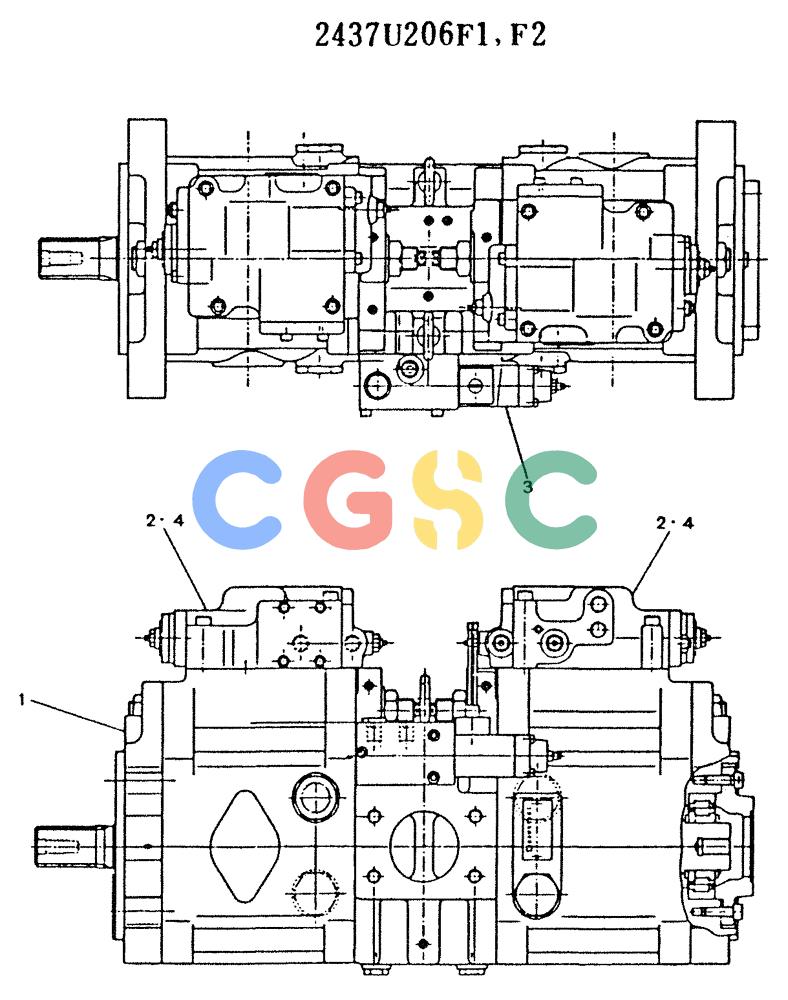

神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (11-019) - PUMP ASSY, 2437U206 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U206F1 | [1] | PUMP | KOBASSY, CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2437U206F3 |
| . . | 2437U206F2 | [1] | PUMP ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 1. | 2437U213F1 | [1] | PUMP | KOBASSY, SEE FIGURE 11-020 |
| 2. | 2436U1379F1 | [2] | REGULATOR ASSY, F1 ONLY, SEE FIGURE 11-018 | REGULATOR ASSY, F1 ONLY, SEE FIGURE 11-018 |
| 3. | 2436U1370F1 | [1] | VALVE ASSY, SOLENOID | VALVE ASSY, SOLENOID |
| 4. | 2436U1379F2 | [2] | REGULATOR ASSY, F2 ONLY | |
