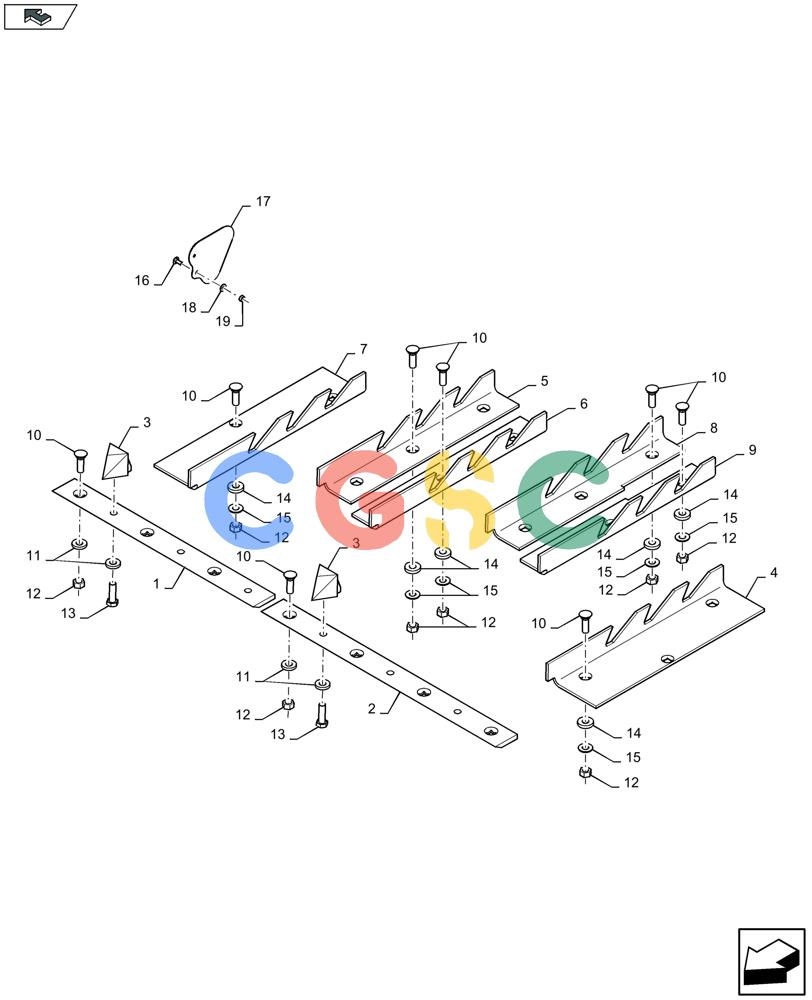

凯斯零件查询(LB424S XL) - BALER (11/16-) (70.200.045) - FIXED KNIFE AND HAY-DOGS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84814538
|
[1] |
KNIFE,540mm L x 60mm W x 10mm Thk
|
ZED
|
| 2. |
84814537
|
[1] |
KNIFE,630mm L x 60mm W x 10mm Thk
|
ZED
|
| 3. |
84607550
|
[6] |
GUIDE
|
ZED
|
| 3. |
48037183
|
[6] |
|
GUIDE
|
| 4. |
47954483
|
[1] |
GUIDE
|
ZED
|
| 5. |
47953070
|
[3] |
GUIDE
|
ZED
|
| 6. |
47953062
|
[3] |
GUIDE
|
ZED
|
| 7. |
47954463
|
[1] |
GUIDE
|
ZED
|
| 8. |
47953744
|
[2] |
GUIDE
|
ZED
|
| 9. |
47953780
|
[2] |
GUIDE
|
ZED
|
| 10. |
380420
|
[43] |
BOLT
|
NH
|
| 11. |
87376144
|
[13] |
WASHER,13mm ID x 28mm OD x 5mm Thk
|
FLX
|
| 12. |
9706685
|
[43] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 13. |
337563
|
[6] |
BOLT,M12 x 1.75 x 47.68mm, Cl 10.9
|
NH
|
| 14. |
86592713
|
[36] |
WASHER,13mm ID x 30mm OD x 6mm Thk
|
PLO
|
| 15. |
140046
|
[36] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 16. |
86512439
|
[1] |
CARRIAGE BOLT,M6 x 16mm, Cl 8.8
|
NH
|
| 17. |
48015457
|
[1] |
PLATE
|
ZED
|
| 18. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 19. |
9706755
|
[1] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
