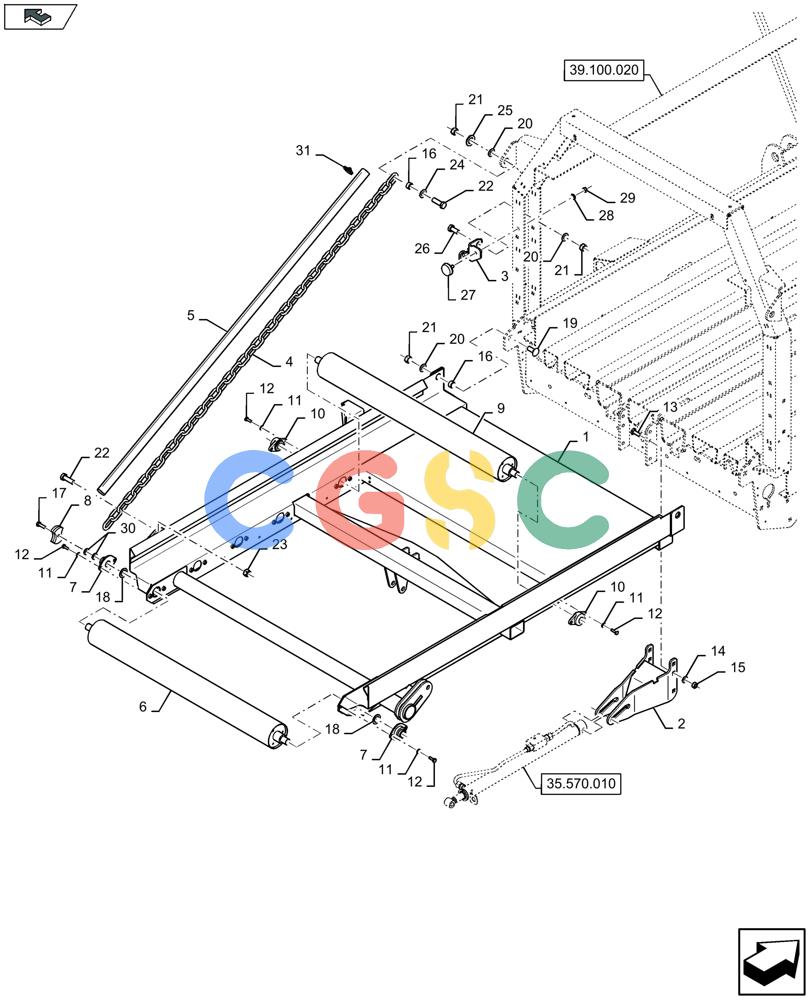

| 1. |
47402466
|
[1] |
CHUTE
|
ZED
|
| 2. |
47962336
|
[1] |
MOUNTING PLATE
|
ZED
|
| 3. |
47402068
|
[1] |
CATCH
|
ZED
|
| 4. |
84510155
|
[2] |
CHAIN,1885mm L
|
ZED
|
| 5. |
47730778
|
[2] |
COVER
|
ZED
|
| 6. |
84801337
|
[1] |
ROLLER,108mm OD x 1127mm L
|
ZED
|
| 7. |
9837806
|
[2] |
FLANGED BEARING,25mm ID
|
ZED
|
| 8. |
84583160
|
[1] |
PLATE
|
ZED
|
| 9. |
84032863
|
[4] |
ROLLER,108mm OD x 1127mm L
|
ZED
|
| 10. |
9839087
|
[8] |
NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk
|
ZED
|
| 11. |
322358
|
[20] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 12. |
43127
|
[20] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 13. |
328754
|
[6] |
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 14. |
140046
|
[6] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 15. |
9706685
|
[6] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 16. |
9837933
|
[4] |
SPACER,17mm ID x 25.4mm OD x 12.5mm L
|
ZED
|
| 17. |
9706704
|
[1] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 18. |
140104
|
[2] |
WASHER,26mm ID x 45mm OD x 3mm Thk
|
ZED
|
| 19. |
86595832
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 20. |
140048
|
[5] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 21. |
100020
|
[5] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 22. |
120090
|
[4] |
BOLT,Hex, M16 x 50mm, Cl 8.8
|
NH
|
| 23. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 24. |
378246
|
[2] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 25. |
87016608
|
[2] |
WASHER,25.8mm ID x 44.5mm OD x 5mm Thk
|
RAC
|
| 26. |
86508583
|
[1] |
BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 86529976
|
| 27. |
190029
|
[1] |
STOP,M10 x 1.0 x 20mm OD, Rubber
|
ZED
Superseded by part number: 84440416
|
| 28. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 29. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 30. |
447336
|
[2] |
WASHER,11mm ID x 25mm OD x 3.99mm Thk
|
ZED
|
| 31. |
84449335
|
[4] |
CABLE TIE,346mm L
|
ZED
|
