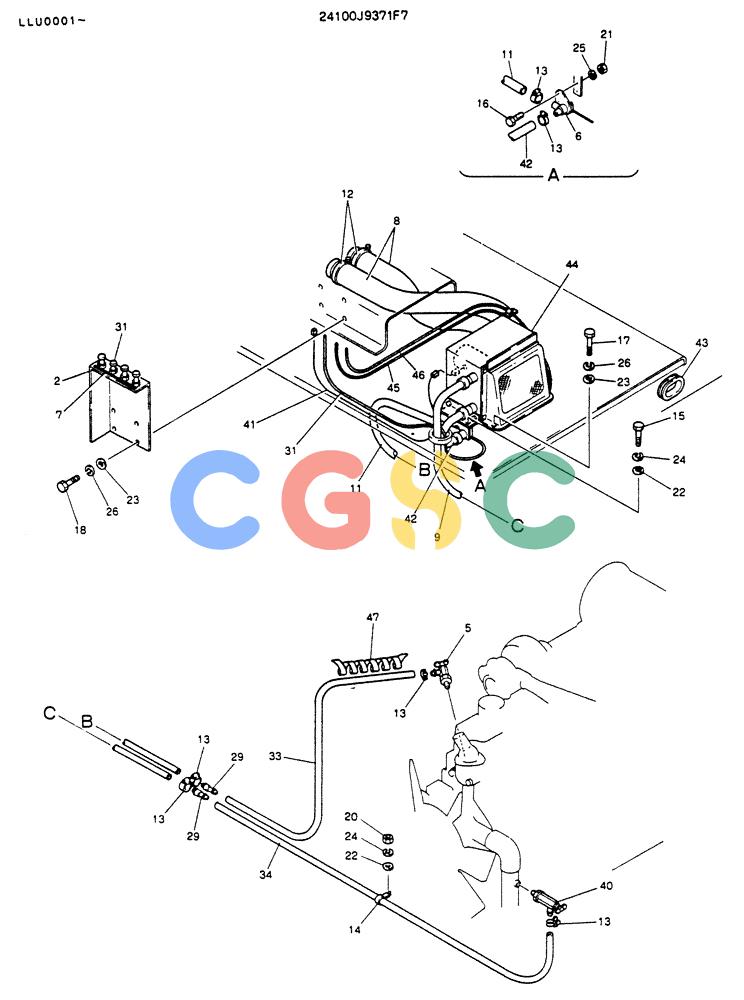

神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (05-011) - HEATER & DEFROSTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
295 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J9371F7 | [1] | HEATER & DEFROSTER | |
| 2. | 2416P12531 | [1] | BRACKET | KOB |
| 5. | R44T0180 | [1] | COCK | KOB |
| 6. | 2479Z961 | [1] | VALVE | KOB |
| 7. | 2418P12315 | [1] | PLATE | PLATE |
| 8. | 2444Z2354D2 | [2] | FLEXIBLE HOSE | KOB |
| 9. | 2444Z2220D1 | [1] | HOSE | KOB |
| 11. | 2444Z2220D5 | [1] | FLEXIBLE HOSE | KOB |
| 12. | ZC15X06000 | [4] | CLIP | KOB |
| 13. | ZC15X02300 | [10] | CLIP | KOB |
| 14. | ZC45X22011 | [2] | CLIP | KOBClamp -- Ø22mm Single Cable Superseded by part number: ZC46X22011 |
| 15. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 16. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 17. | ZS18C06025 | [2] | SCREW,Hex, M6 x 25mm | KOBM06x1.0x25mm |
| 18. | ZS18C06016 | [4] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 20. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 21. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 22. | ZW16X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 23. | ZW16X06000 | [6] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 24. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 25. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 26. | ZW26X06000 | [6] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 29. | 2418T10455 | [2] | PIPE | KOB |
| 31. | 2406R240 | [1] | FLEXIBLE CONTROL | KOBCABLE |
| 33. | R18T0026D2 | [1] | HOSE,12mm ID x 2700mm L | KOBID 12 x OD 22 x 2700mm |
| 34. | R18T0026D35 | [1] | HOSE | KOBID 12 x OD 22 x 3000mm |
| 40. | R44T0183 | [1] | HYD CONNECTOR | KOB |
| 41. | 2479Z1804 | [1] | WIRE HARNESS | KOB |
| 42. | 2444Z2220D7 | [1] | HOSE | KOB |
| 43. | 2420Z1188 | [1] | GROMMET | KOB |
| 44. | NSS | [1] | NOT SOLD SEPARAT | CONHEATER ASSY, SEE FIGURE 05-012 |
| 45. | 2406R241 | [1] | WIRE HARNESS | KOBCABLE, CONTROL |
| 46. | 2406R242 | [1] | WIRE HARNESS | KOBCONTROL |
| 47. | 2414Z199D025 | [2] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
