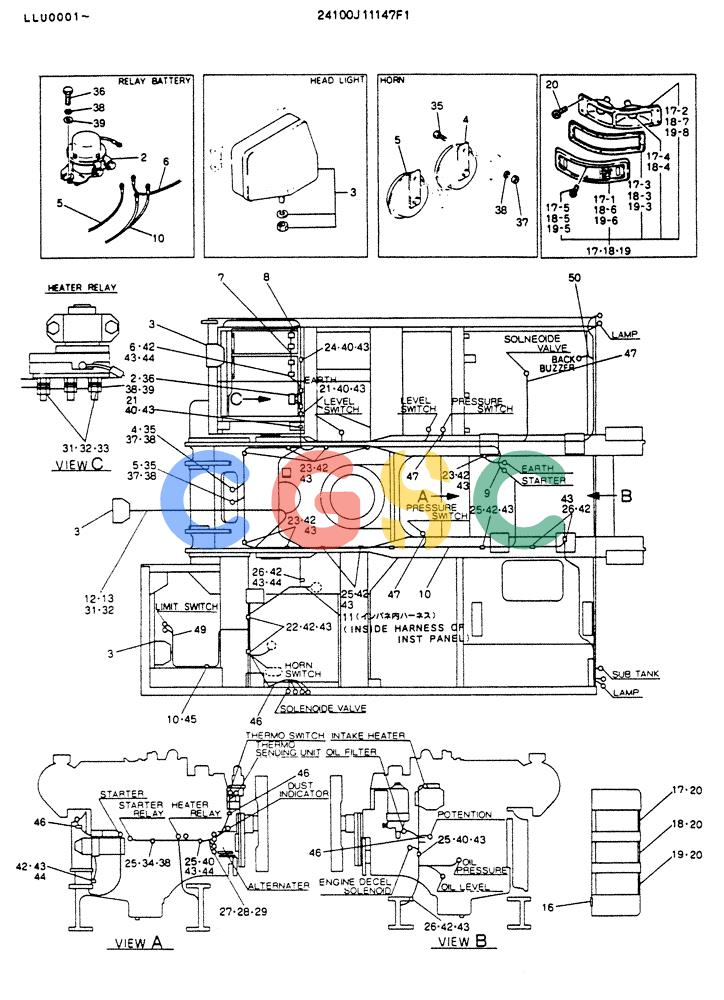

神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (05-013) - WIRING ASSY, ELEC Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11147F1 | [1] | WIRE HARNESS | KOBELEC |
| 2. | 2479R1368 | [1] | RELAY | KOBBATTERY |
| 3. | NSS | [3] | NOT SOLD SEPARAT | CONLIGHT ASSY, SEE FIGURE 05-015 |
| 4. | 2479U1009F1 | [1] | HORN,24V, 390HZ | KOBHigh (415Hz) Superseded by part number: CM53S00002F1 |
| 5. | 2479U1009F2 | [1] | HORN,24V, 350HZ | KOBLow (390Hz) Superseded by part number: CM53S00002F2 |
| 6. | 2486R73D1 | [1] | NEG BATTERY CABLE | KOB |
| 7. | 2486R74D1 | [1] | NEG BATTERY CABLE | KOB |
| 8. | 2486R75D1 | [1] | NEG BATTERY CABLE | KOB |
| 9. | 2486R76D2 | [1] | NEG BATTERY CABLE | KOB |
| 10. | 2479U1107 | [1] | HARNESS | KOBWIRING |
| 11. | 2479U1160 | [1] | WIRE HARNESS | KOB |
| 12. | 2479Z1005D3 | [1] | WIRE HARNESS | KOB |
| 13. | 2432Z270 | [5] | CLAMP | KOB |
| 16. | 2420R372D19 | [2] | GROMMET | KOB |
| 17. | 2456U75F1 | [2] | LAMP | KOB |
| 17-1. | 2456U75S1 | [1] | LENS | KOB |
| 17-2. | 2456U75S2 | [1] | HEADLAMP LENS | KOB |
| 17-3. | 2456U75S3 | [1] | PACKING | KOB |
| 17-4. | 2456U68S4 | [2] | BULB | KOBVALVE Superseded by part number: 2456U85S4 |
| 17-5. | 2456U68S5 | [6] | SCREW | KOBSET |
| 18. | 2456U75F2 | [2] | LAMP | KOB |
| 18-3. | 2456U75S3 | [1] | PACKING | KOB |
| 18-4. | 2456U68S4 | [2] | BULB | KOBVALVE Superseded by part number: 2456U85S4 |
| 18-5. | 2456U68S5 | [6] | SCREW | KOBSET |
| 18-6. | 2456U75S6 | [1] | LENS | KOB |
| 18-7. | 2456U75S7 | [1] | HEADLAMP LENS | KOB |
| 19. | 2456U75F3 | [2] | LAMP | KOB |
| 19-3. | 2456U75S3 | [1] | PACKING | KOB |
| 19-5. | 2456U68S5 | [6] | SCREW | KOBSET |
| 19-6. | 2456U75S6 | [1] | LENS | KOB |
| 19-8. | 2456U75S8 | [1] | HEADLAMP LENS | KOB |
| 20. | 2420Z1227D4 | [24] | SCREW | KOBM06x1.0x20mm |
| 21. | 2432R225D11 | [2] | CLIP | KOBClamp, Single -- ID 29 x 62.5mm Long Superseded by part number: ZC46X29011 |
| 22. | 2432R225D5 | [2] | CLIP | KOB Superseded by part number: ZC46X12011 |
| 23. | 2432R225D6 | [7] | CLIP | KOB |
| 24. | 2432R225D7 | [1] | CLIP | KOB Superseded by part number: ZC46X16011 |
| 25. | 2432R225D8 | [6] | CLIP | KOBClamp, Single -- ID 19.1 x 51.55mm Long Superseded by part number: ZC46X19011 |
| 26. | 2432R225D9 | [3] | CLIP | KOBClamp, Single -- ID 22 x 54mm Long Superseded by part number: ZC46X22011 |
| 27. | ZS31C05010 | [1] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 28. | ZW26X05000 | [1] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 29. | ZW16K05000 | [1] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 31. | ZN18C06005 | [7] | NUT | KOBM06x1.0mm |
| 32. | ZW26X06000 | [7] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 33. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 34. | ZS18C08014 | [1] | SCREW,Hex, M8 x 14mm | KOBM08x1.25x14mm |
| 35. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 36. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 37. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 38. | ZW26X08000 | [5] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 39. | ZW16K08000 | [2] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 40. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 42. | ZN18C10008 | [18] | NUT | KOBM10x1.50mm |
| 43. | ZW26X10000 | [22] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 44. | ZW16K10000 | [4] | WASHER | KOBID 10.5 x OD 18 x Th 2.0mm |
| 45. | 2432Z468 | [22] | CLIP | KOB |
| 46. | 2432Z290 | [4] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 47. | 2432Z290D3 | [4] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 49. | 2479Z1798 | [1] | WIRE HARNESS | KOB |
| 50. | 2479Z1799D3 | [1] | WIRE HARNESS | KOB |
