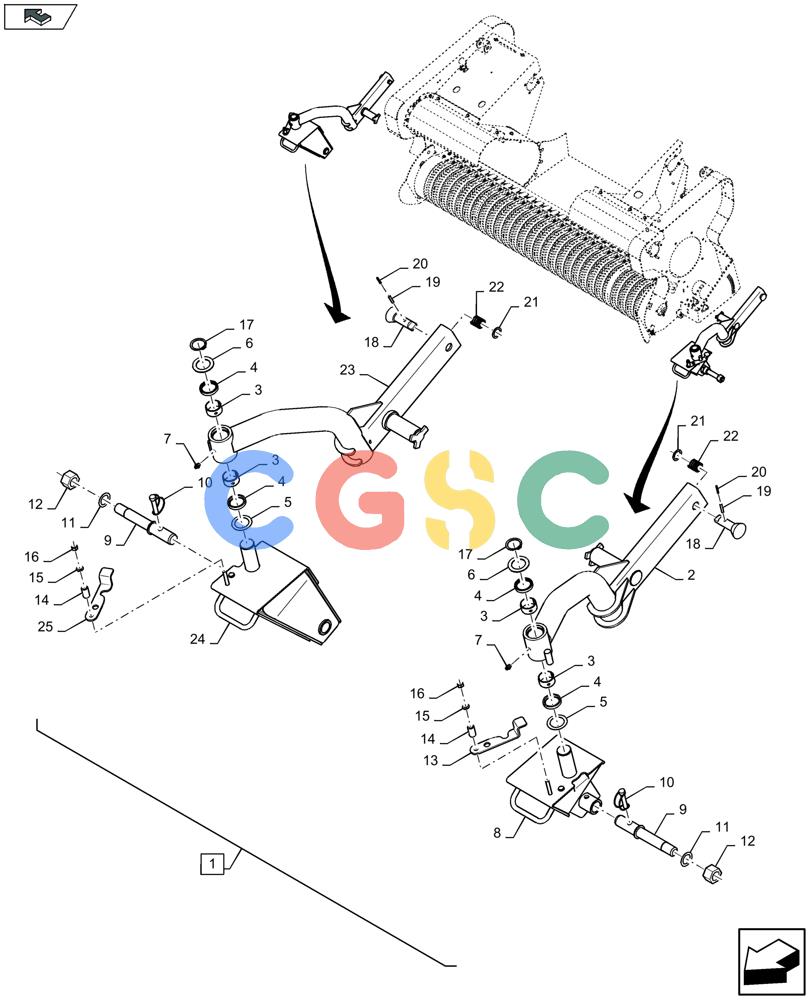

凯斯零件查询(LB424S XL) - BALER (11/16-) (88.044.001[01]) - DIA KIT: CASTER PICK-UP WHEELS SUPPORT - D137 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47677252
|
[1] |
DIA KIT, HARVESTER
|
ATT
Incl 2 - 25
|
| 2. |
47671391
|
[1] |
SWING CARRIAGE
|
ZED
|
| 3. |
9615969
|
[4] |
SLEEVE,35mm ID x 39mm OD x 20mm L
|
ZED
|
| 4. |
84041902
|
[4] |
SEALING ELEMENT
|
ZED
|
| 5. |
58630
|
[2] |
WASHER,.0299" Thk
|
NH
|
| 6. |
47529253
|
[2] |
WASHER,35.5mm ID x 53mm OD x 2mm Thk
|
PLO
|
| 7. |
62161
|
[2] |
LUBE NIPPLE,M8 x 1.25, Str
|
NH
|
| 8. |
47671293
|
[1] |
SWING CARRIAGE
|
ZED
|
| 9. |
47691011
|
[2] |
SHAFT
|
ZED
|
| 10. |
9838996
|
[2] |
COTTER PIN
|
NH
|
| 11. |
140103
|
[2] |
WASHER,26mm ID x 38mm OD x 1mm Thk
|
ZED
Superseded by part number: 140229
|
| 12. |
9837788
|
[2] |
NUT,M24 x 3, Cl 8.8
|
ZED
|
| 13. |
47671435
|
[1] |
LOCK
|
ZED
|
| 14. |
29524
|
[2] |
SPRING
|
PA
Superseded by part number: 86635755
|
| 15. |
83931520
|
[2] |
WASHER,8.4mm ID x 17mm OD x 2mm Thk
|
BAS
|
| 16. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 17. |
370004
|
[2] |
SNAP RING,M35 x 1.5mm Thk, External
|
NH
Superseded by part number: 11068376
|
| 18. |
84382672
|
[2] |
ADJUSTER
|
ZED
|
| 19. |
393871
|
[2] |
LOCK PIN,5mm OD x 30mm L, Slotted
|
WIN
|
| 20. |
84818466
|
[2] |
ROLL PIN,3mm OD x 26mm L, Slotted
|
ZED
|
| 21. |
794034
|
[2] |
WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk
|
NH
|
| 22. |
84383225
|
[2] |
COMPRESSION SPRING
|
ZED
|
| 23. |
47671400
|
[1] |
SWING CARRIAGE
|
ZED
|
| 24. |
47671284
|
[1] |
SWING CARRIAGE
|
ZED
|
| 25. |
47671421
|
[1] |
LOCK
|
ZED
|
| . . |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Grease Incl in 1
|
| . . |
86503661
|
[1] |
GREASE
|
GI
|
