神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (11-009) - VALVE ASSY, BRAKE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
457 次

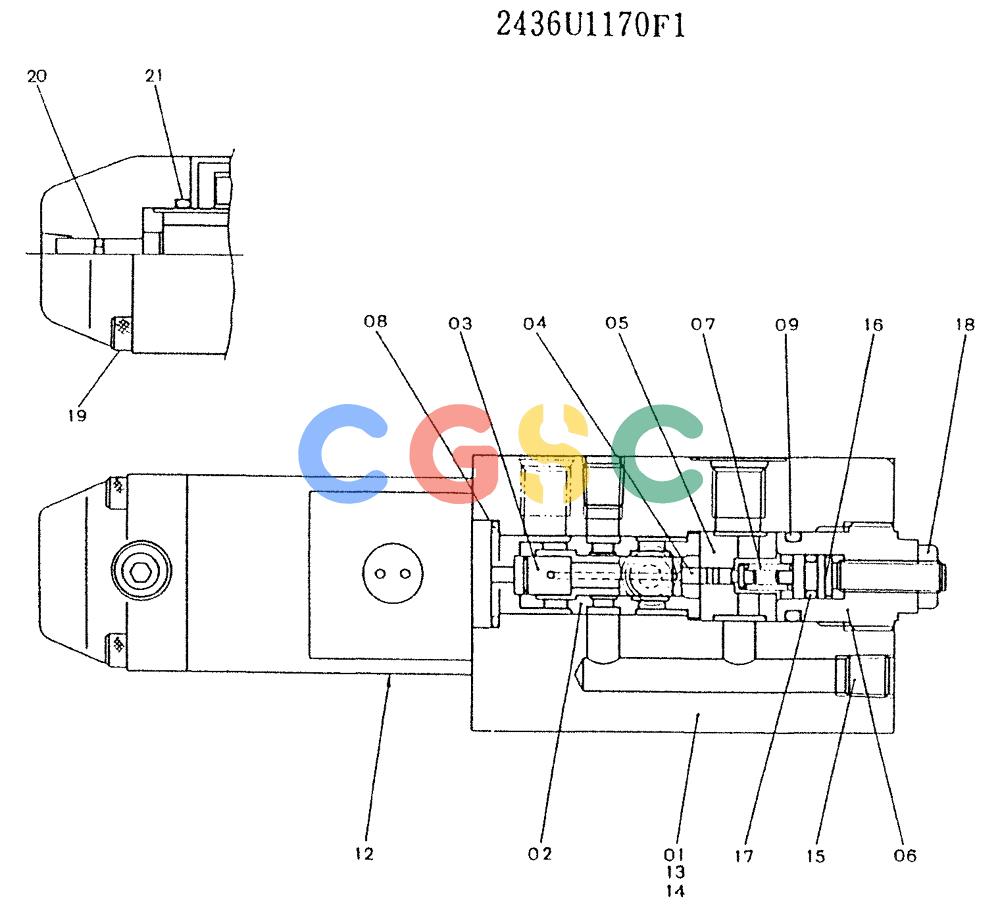

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1170F1 | [1] | CONTROL VALVE | KOBPRESS CONTROL |
| 1. | 2436U1170S01 | [1] | CASING | |
| 2. | 2436U1170S02 | [1] | SLEEVE | |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 4. | 2436U1170S04 | [1] | PISTON | |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 6. | 2436U1170S06 | [1] | SCREW | SCREW |
| 7. | 2436U1170S07 | [1] | SPRING | KOB |
| 8. | 2436U1170S08 | [1] | O-RING | O-RING |
| 9. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 12. | 2436U1170S12 | [1] | SOLENOID VALVE | KOB |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 14. | 2436U1170S14 | [4] | PIN | KOB |
| 15. | 2441U474S490 | [2] | PLUG | KOB |
| 16. | 2436U1170S16 | [1] | SPRING | KOB |
| 17. | ZD12P00500 | [1] | O-RING | KOB |
| 18. | 2436U1170S18 | [1] | CAPSCREW | CAPSCREW |
| 19. | 2436U1170S19 | [4] | CAPSCREW | |
| 20. | 2436U1170S20 | [1] | O-RING | KOB |
| 21. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
