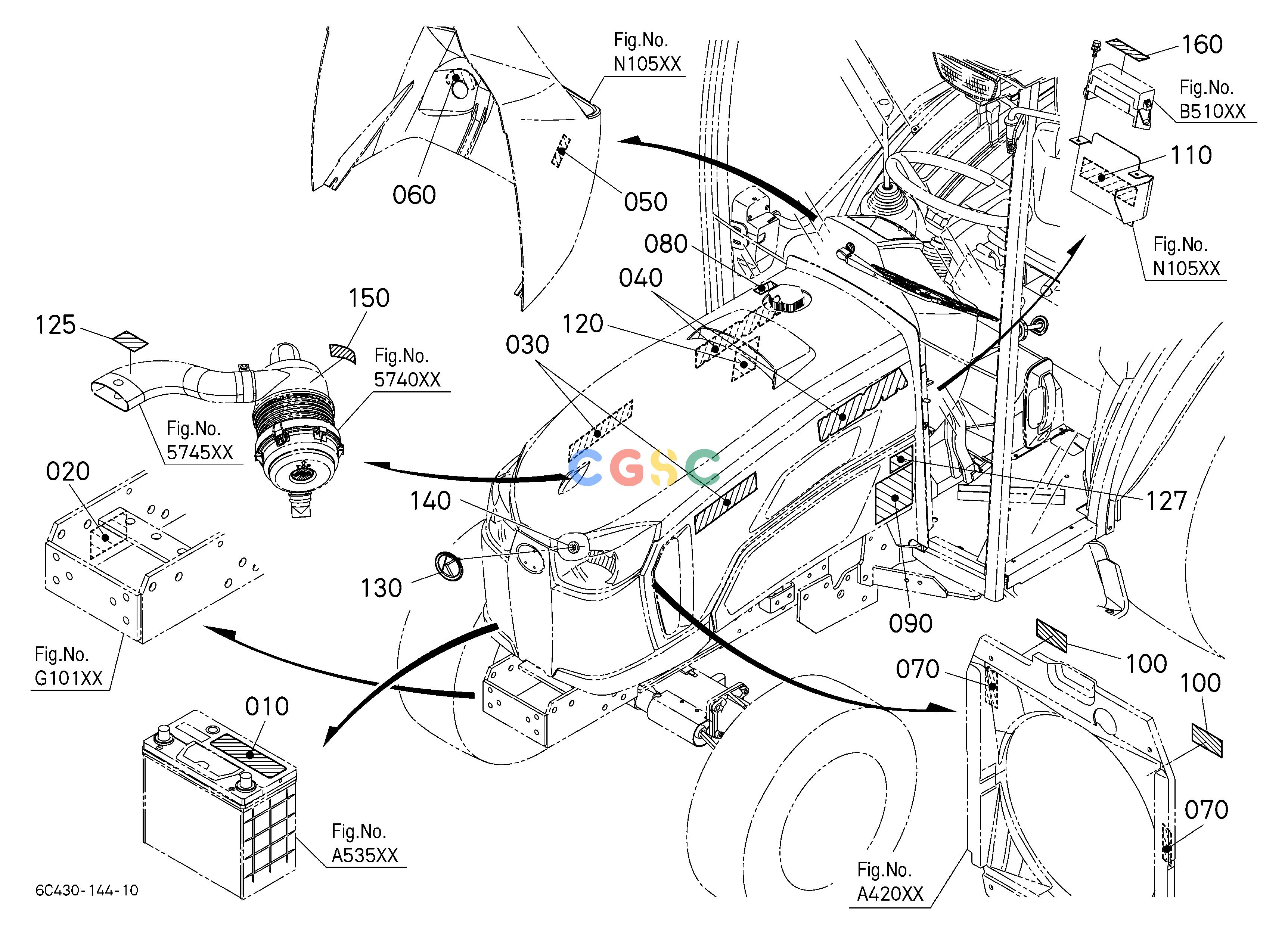

久保田零件查询S10203 LABEL (FRONT) [FRENCH] ## S.No.>=60001 S.No.>=60001 LABELSEPC Kubota online_久保田Kubota_工程机械

久保田零件查询S10203 LABEL (FRONT) [FRENCH] ## S.No.>=60001 S.No.;>=60001 LABELSEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 787 次

Pos.	Part No	Qty	Parts name	Comments
010.	6C30192122	[1]	LABEL,BATTERY	0.0022(lbs); 0.001
010.	6C43130120	[1]	LABEL(BATTERY,FR)	OUT OF USE 0.0176(lbs); 0.008
020.	99999-99999	[1]	NAME PLATE	0.0110(lbs); 0.005
030.	6C43047250	[2]	MARKING(B3350)	0.0176(lbs); 0.008
040.	6C43047210	[2]	LABEL(KUBOTA)	; <=62225 0.0132(lbs); 0.006
040.	6C43047220	[2]	LABEL(KUBOTA)	; >=62226 0.0132(lbs); 0.006
040.	6C43047230	[2]	LABEL(KUBOTA)	; >=70514 0.0132(lbs); 0.006
050.	TD17049460	[1]	LABEL,PARKING	0.0022(lbs); 0.001
060.	6C07047213	[1]	MARK,MAIN SWITCH	; <=71550 0.0022(lbs); 0.001
060.	6C43047430	[1]	MARKING(MAIN SWITCH)	; >=71551 0.0022(lbs); 0.001
070.	6C09049580	[2]	LABEL(FAN WARNING)	0.0022(lbs); 0.001
080.	TC41049560	[1]	LABEL(FILTER,E4,FR)	0.0022(lbs); 0.001
090.	6C43149650	[1]	LABEL(START CAUTION)	0.0132(lbs); 0.006
100.	6C43049590	[2]	LABEL(MUFFLER)	; <=71550 0.0022(lbs); 0.001
100.	6C43049592	[2]	LABEL(MUFFLER)	; >=71551 0.0022(lbs); 0.001
110.	6C23147430	[1]	LABEL,PARKING WARNI.	0.0022(lbs); 0.001
120.	3Y20198680	[1]	LABEL(DPF,CAUTION,FR)	0.0044(lbs); 0.002
125.	6C43149550	[1]	LABEL(HOSE,IMPORTANT,FR)	ORDER BY REF.No.125 NEW PART.; >=62124 0.0022(lbs); 0.001
125.	6C43149552	[1]	LABEL(HOSE,IMPORTANT,FR)	; >=70001 0.0022(lbs); 0.001
127.	6C43149570	[1]	LABEL(CLEANER,IMPORTANT,FR)	; >=70001 0.0022(lbs); 0.001
130.	K351149500	[1]	MARKING	0.0308(lbs); 0.014
140.	RA11143690	[3]	NUT	0.0022(lbs); 0.001
150.	6C43082540	[1]	LABEL(CAUTION)	; <=71550 0.0022(lbs); 0.001
150.	6C43082542	[1]	LABEL(CAUTION)	; >=71551 0.0022(lbs); 0.001
160.	6C43192110	[1]	LABEL(FUSE)	0.0022(lbs); 0.001
