神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (11-017) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
429 次

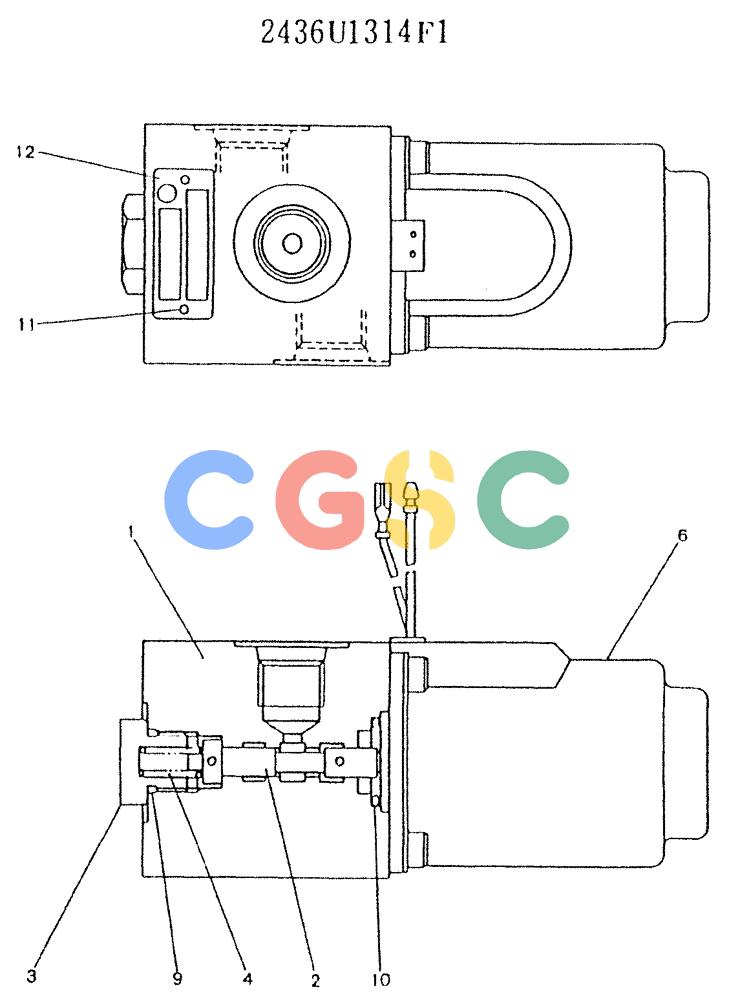

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1314F1 | [1] | VALVE | KOBASSY,SOLENOID |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | 2436U2159S3 | [1] | PLUG | KOB |
| 4. | 2436U2159S4 | [1] | SPRING | |
| 6. | 2436U1314S6 | [1] | SOLENOID | HIT |
| 9. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 10. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 11. | NSS | [2] | NOT SOLD SEPARAT | CONSCREW |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
