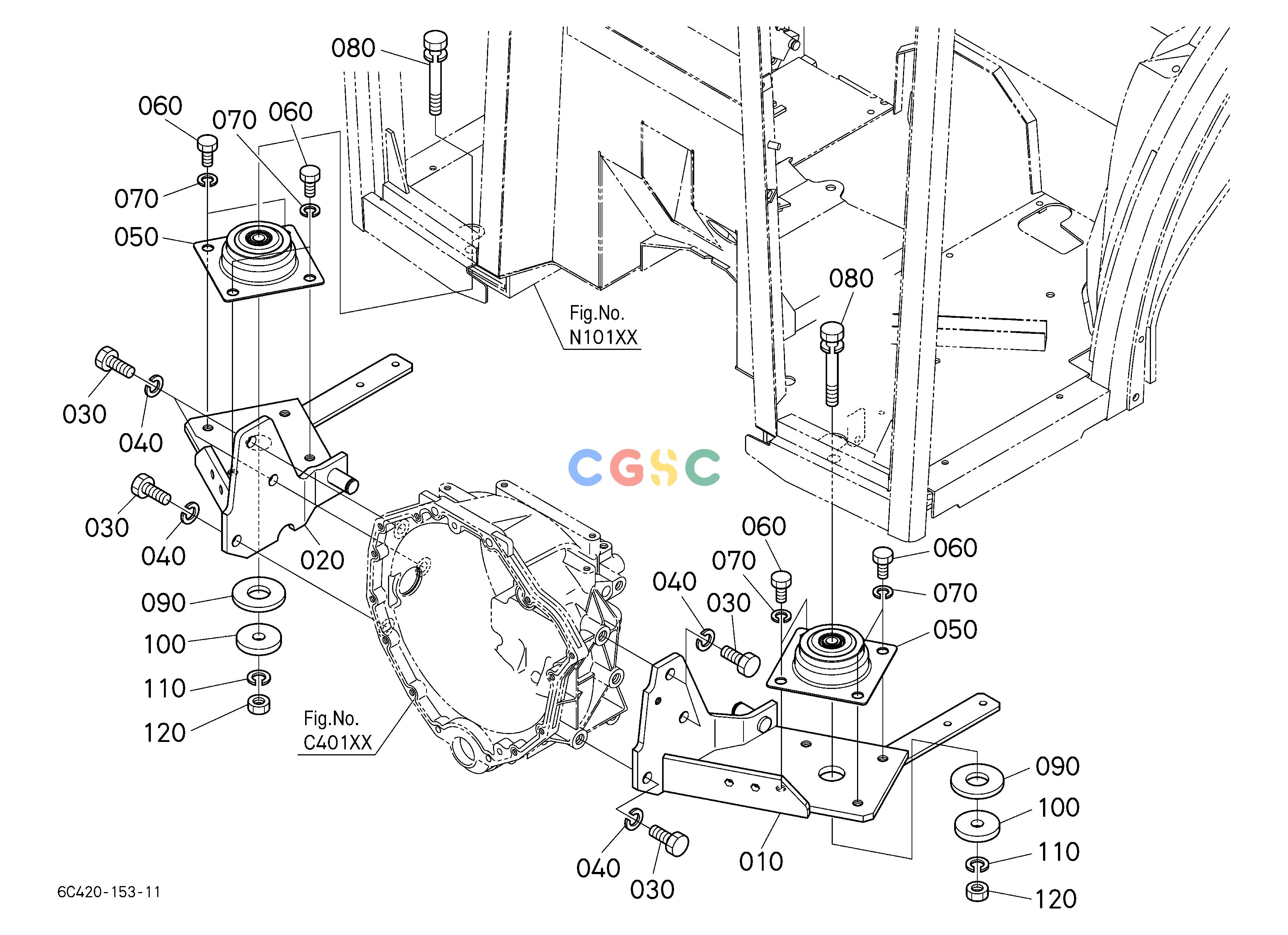

久保田零件查询U65700 CAB KIT 8 (CAB BRACKET FRONT) (W/G.No.B7075) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
- |
[1] |
FRAME(FRONT LH)
|
0.0000(lbs); 0.000
|
| 020. |
- |
[1] |
FRAME(FRONT RH)
|
0.0000(lbs); 0.000
|
| 030. |
0105351435
|
[6] |
HEX.BOLT
|
0.1364(lbs); 0.062
|
| 040. |
0451250140
|
[6] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
| 050. |
T368571734
|
[2] |
RUBBER,CAB
|
1.2320(lbs); 0.560
|
| 060. |
0117351220
|
[8] |
HEX.BOLT
|
0.0660(lbs); 0.030
|
| 070. |
0451250120
|
[8] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 080. |
0113351400
|
[2] |
BOLT,SEMS
|
0.2860(lbs); 0.130
|
| 090. |
6C43076170
|
[2] |
COLLAR(RUBER,MOUNT)
|
0.0550(lbs); 0.025
|
| 100. |
3A75171740
|
[2] |
WASHER
|
0.3190(lbs); 0.145
|
| 110. |
0451250140
|
[2] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
| 120. |
0217450140
|
[2] |
HEX.NUT
|
0.0308(lbs); 0.014
|
