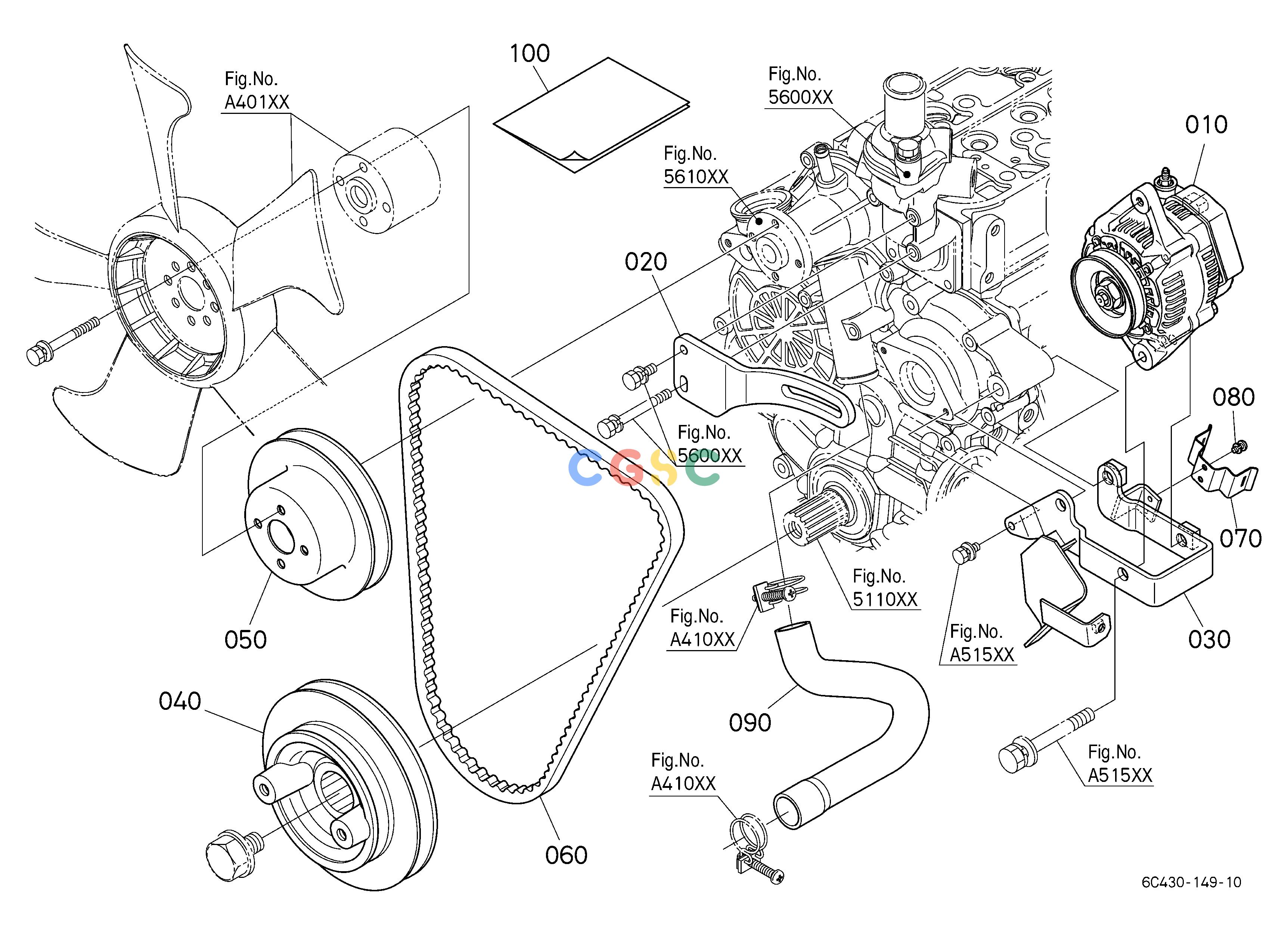

久保田零件查询U80000 ALTERNATOR KIT 4 [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1926064013
|
[1] |
ASSY ALTERNATOR
|
11.2200(lbs); 5.100
|
| 010. |
1926064014
|
[1] |
ASSY ALTERNATOR
|
11.2200(lbs); 5.100
|
| 020. |
1A46264420
|
[1] |
STAY(ALTERNATOR,90A)
|
0.4840(lbs); 0.220
|
| 030. |
6C43058662
|
[1] |
STAY(ALTERNATOR,90A)
|
1.0560(lbs); 0.480
|
| 040. |
1A46374280
|
[1] |
PULLEY,FAN DRIVE
|
3.2780(lbs); 1.490
|
| 050. |
1A46274250
|
[1] |
PULLEY,FAN
|
0.6534(lbs); 0.297
|
| 060. |
1748097010
|
[1] |
V BELT,A
|
0.5280(lbs); 0.240
|
| 070. |
6C43058680
|
[1] |
SPRING(HOLDER)
|
0.0462(lbs); 0.021
|
| 080. |
0302450408
|
[2] |
SCREW,SEMS(PAN HEAD)
|
0.0044(lbs); 0.002
|
| 090. |
6C43058620
|
[1] |
HOSE(WATER,3,90A)
|
0.5720(lbs); 0.260
|
| 100. |
99999-99999
|
[1] |
MANUAL,INST
|
0.0000(lbs); 0.000
|
