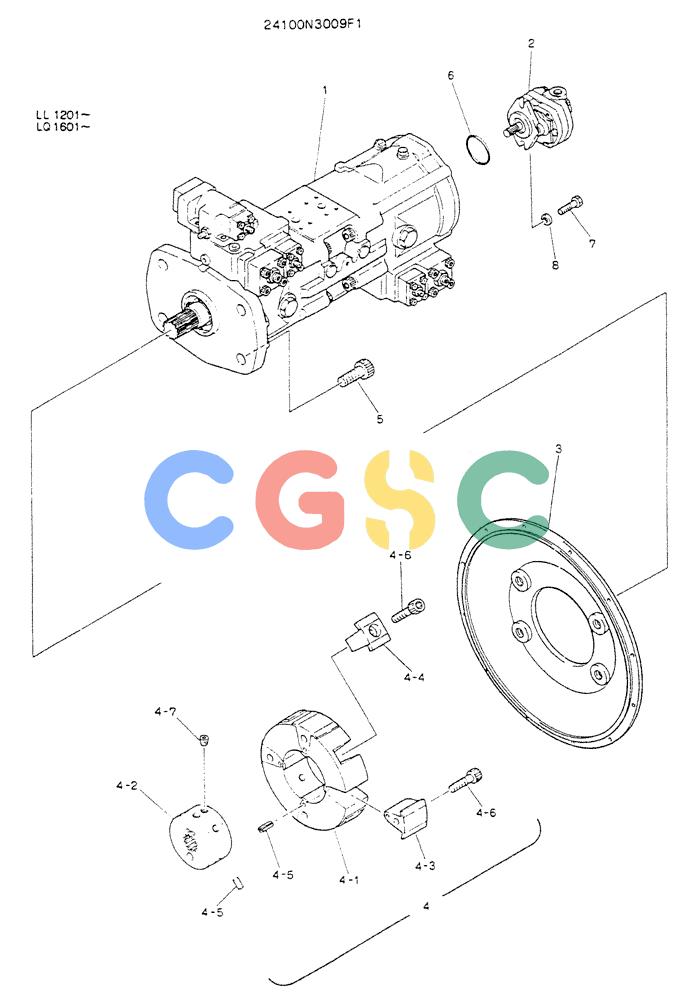

神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (05-004) - PUMP ASSY CONNECT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
515 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3009F1 | [1] | PUMP ASSY,CONNECT | |
| 1. | 2437U192F1 | [1] | PUMP | KOB |
| 2. | 2441U291F2 | [1] | HYDRAULIC PUMP | KOBGEAR |
| 3. | 2416N3333 | [1] | U-BRACKET | KOB |
| 4. | 2418R219F1 | [1] | COUPLING | KOB |
| 4-1. | 2418R214S1 | [1] | ELEMENT | |
| 4-2. | 2418R227 | [1] | HUB | KOBCLAMPING |
| 4-3. | 2418R214S3 | [4] | INSERT,ALM1NUM | |
| 4-4. | 2418R214S4 | [4] | INSERT,ALXINUM | |
| 4-5. | ZP26D05010 | [12] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 4-6. | 2418R214S6 | [8] | CAPSCREW | |
| 4-7. | ZS73C16025 | [2] | SET SCREW | KOBScrew, Set -- M16x2.0x25mm |
| 5. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 6. | ZD12G05500 | [1] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO -- ID 54.40 ± 0.49 x OD 60mm |
| 7. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 8. | ZW11K10000 | [2] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
