神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (05-011) - CONTROL ASSY ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
706 次

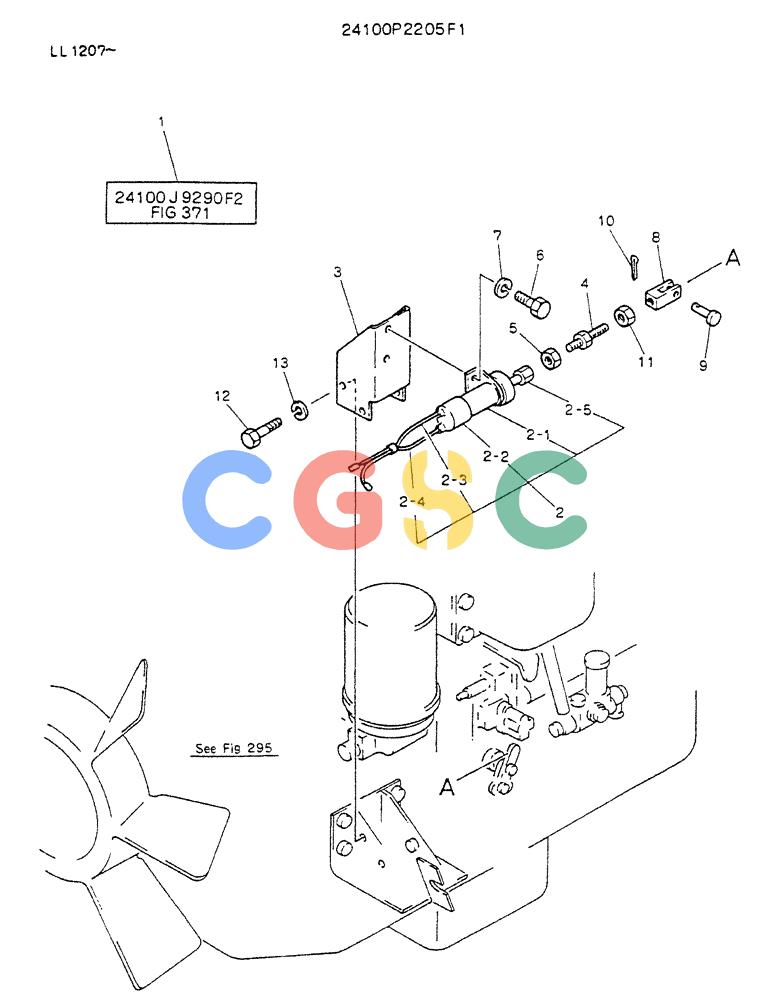

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2205F1 | [1] | CONTROL UNIT | KOB |
| 1. | 24100J9290F2 | [1] | CONTROL UNIT | KOB |
| 2. | 2480R157F1 | [1] | SOLENOID | KOB |
| 2-1. | 2479U722 | [1] | SOLENOID | KOB |
| 2-2. | 2414Z284 | [1] | BOOT | KOB Superseded by part number: 2414Z287 |
| 2-3. | 2479Z1432 | [1] | WIRE HARNESS | KOB |
| 2-4. | 2479Z1431 | [1] | HARNESS | HARNESS |
| 2-5. | 2420Z1213 | [1] | FLEXIBLE JOINT | KOBSWIVEL |
| 3. | 2416T20453 | [1] | BRACKET | KOB |
| 4. | 2420T4576 | [1] | ROD | KOB |
| 5. | ZN18C06005 | [1] | NUT | KOBM06x1.0mm |
| 6. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 7. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 8. | R06T0042D3 | [1] | ROD | KOBEND |
| 9. | 2419T3314 | [1] | PIN | KOB |
| 10. | ZP15K01610 | [1] | COTTER PIN | KOBSPLIT,PIN Superseded by part number: ZP15K01615 |
| 11. | 2420T4495 | [1] | NUT | KOB |
| 12. | ZS18C10025 | [3] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 13. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
