神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (05-013) - PANEL ASSY INST, 241000N5386F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
414 次

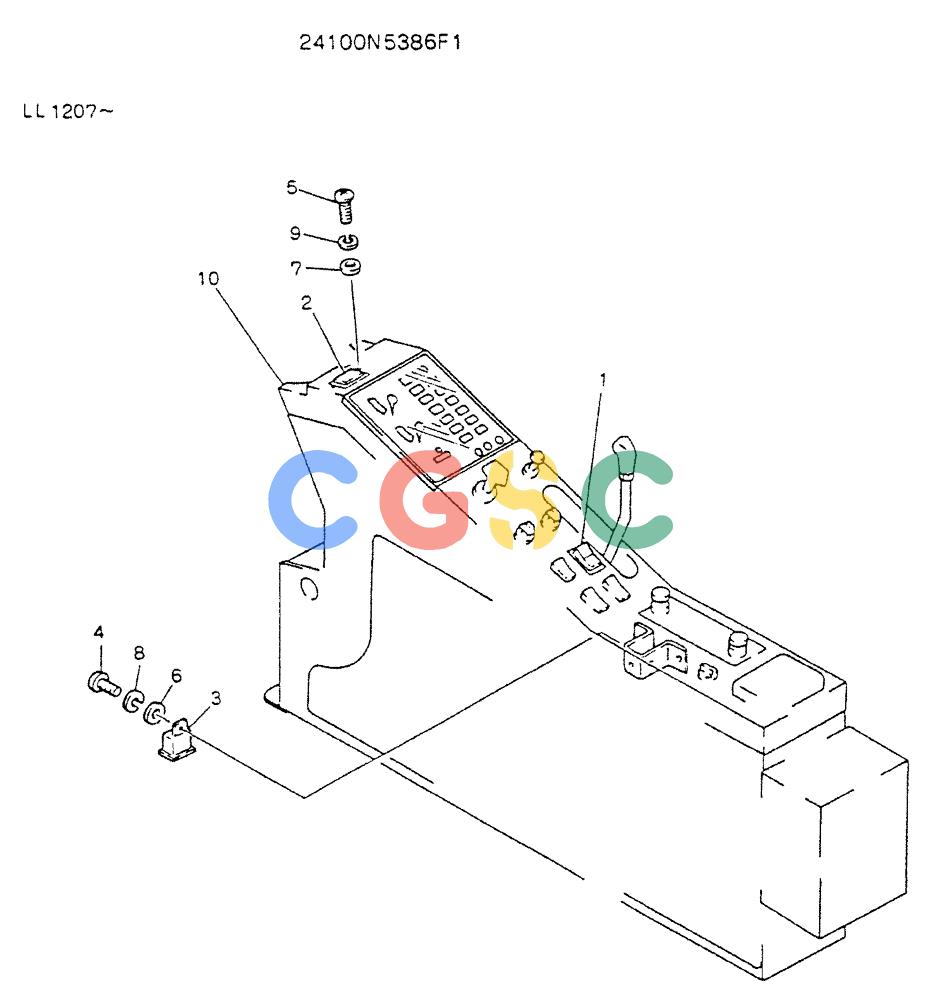

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5386F1 | [1] | PANEL ASSY, INST | PANEL ASSY, INST |
| 1. | 2479U743F5 | [1] | SWITCH | KOBDECEL CANCEL |
| 2. | 2479Z1085 | [1] | SWITCH | KOBDECEL SELECT |
| 3. | 2479U229 | [1] | RELAY | KOBASSY |
| 4. | ZS31C06012 | [1] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 5. | 2420Z1225D1 | [2] | SCREW | KOB |
| 6. | ZW16K06000 | [1] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 7. | 2418Z725D1 | [2] | WASHER | KOBID 03 x OD 06.0 x Th 0.5mm |
| 8. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 9. | 2418Z726D1 | [2] | LOCK WASHER | KOBID 03 x OD 5.9 x Th 0.7mm Superseded by part number: ZW26X03000 |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONPANEL ASSY, INST REF SEE FIG 05-013 |
