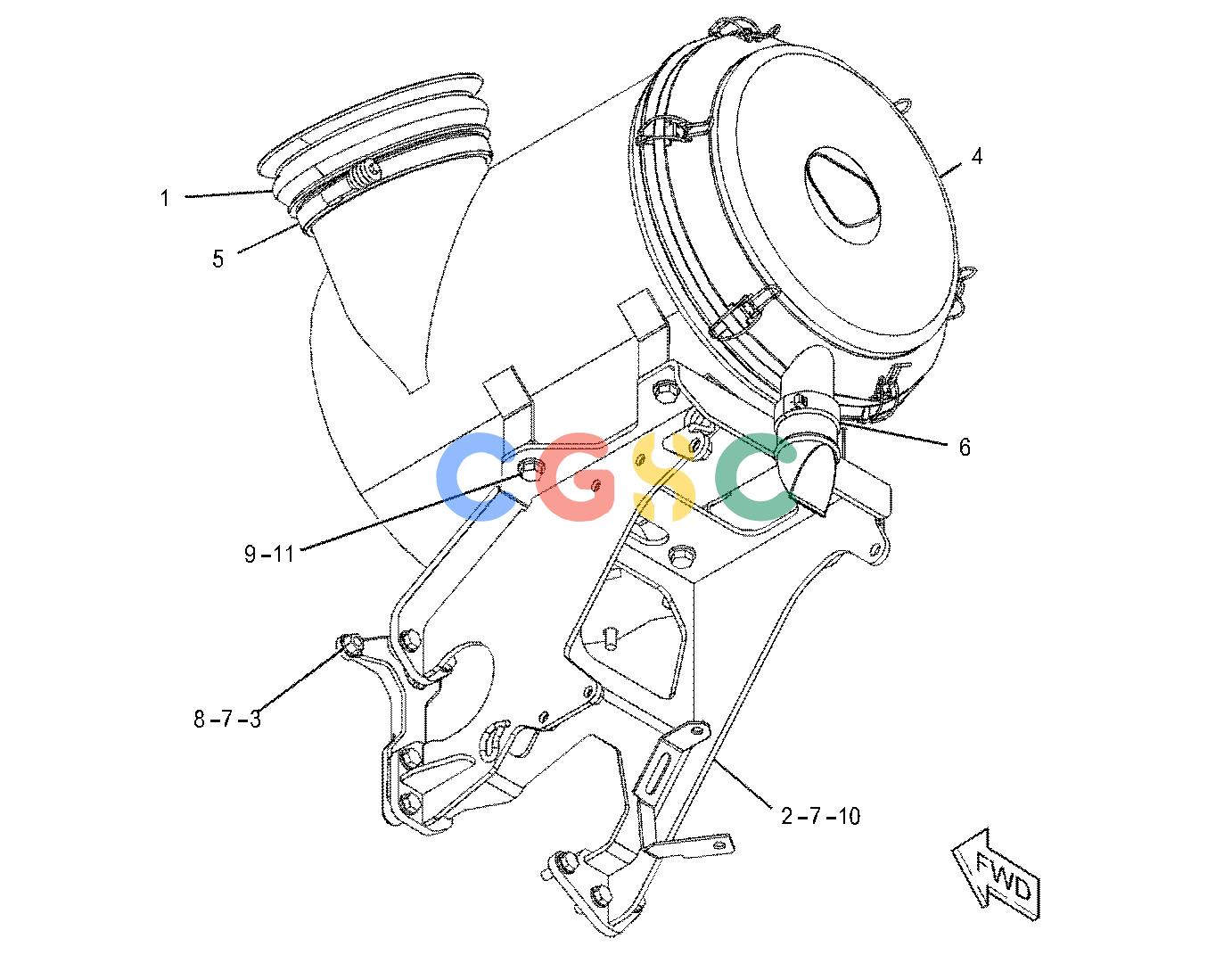

卡特零件查询（730C） 364-4049: AIR CLEANER GP
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 220-8497 | [1] | SEAL-AIR CLEANER | |
| 2. | 457-6219 | [1] | BRACKET AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 3. | 394-6124 | [1] | BRACKET-MOUNTING | |
| 4. | 439-5331Y | [1] | AIR CLEANER GP | |
| 5. | 124-2732 | [1] | CLAMP-HOSE | |
| 6. | 7K-1181 | [1] | STRAP-CABLE | |
| 7. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 9. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 10. | 8T-4195M | [11] | BOLT(M10X1.5X30-MM) | |
| 11. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
