神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (06-008) - BEARING ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
872 次

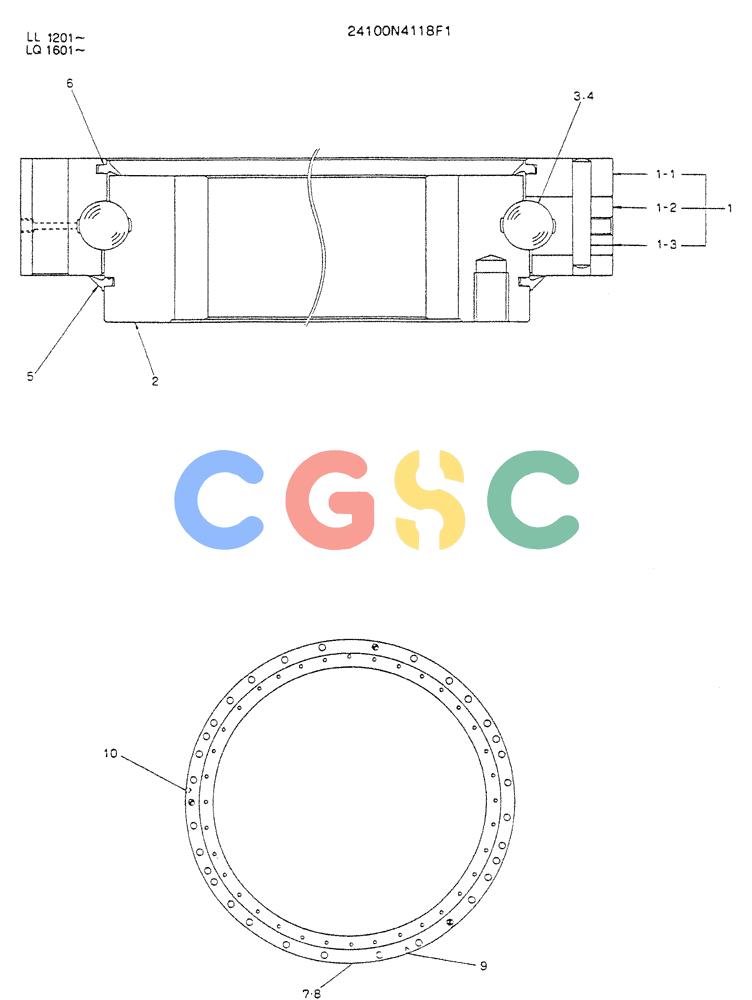

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4118F1 | [1] | SLEWING RING | KOBBEARING ASSY |
| 1. | 2425N349F1 | [1] | RACE,OUTER | |
| 1-1. | 2425N349 | [1] | RACE, OUTER | RACE, OUTER |
| 1-2. | 2420T4512 | [1] | PLUG | KOB |
| 1-3. | 2419T1964D2 | [1] | PIN | KOBTaper -- OD 10 x 80mm Long |
| 2. | 2401N448 | [1] | RACE, INNER | RACE, INNER |
| 3. | 2425T261 | [92] | BALL | KOB |
| 4. | 2425T382 | [92] | RETAINER COLLAR | KOB |
| 5. | 2445P165D4 | [1] | SEAL | KOB4068 mm, Lower Superseded by part number: YN40F01024D4 |
| 6. | 2445P165D3 | [1] | SEAL | KOB4056 mm, Upper Superseded by part number: YN40F01024D4 |
| 7. | 2432T1265 | [1] | LABEL | KOBNAME-PLATE Superseded by part number: YN22T00191P1 |
| 8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 9. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 10. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT |
