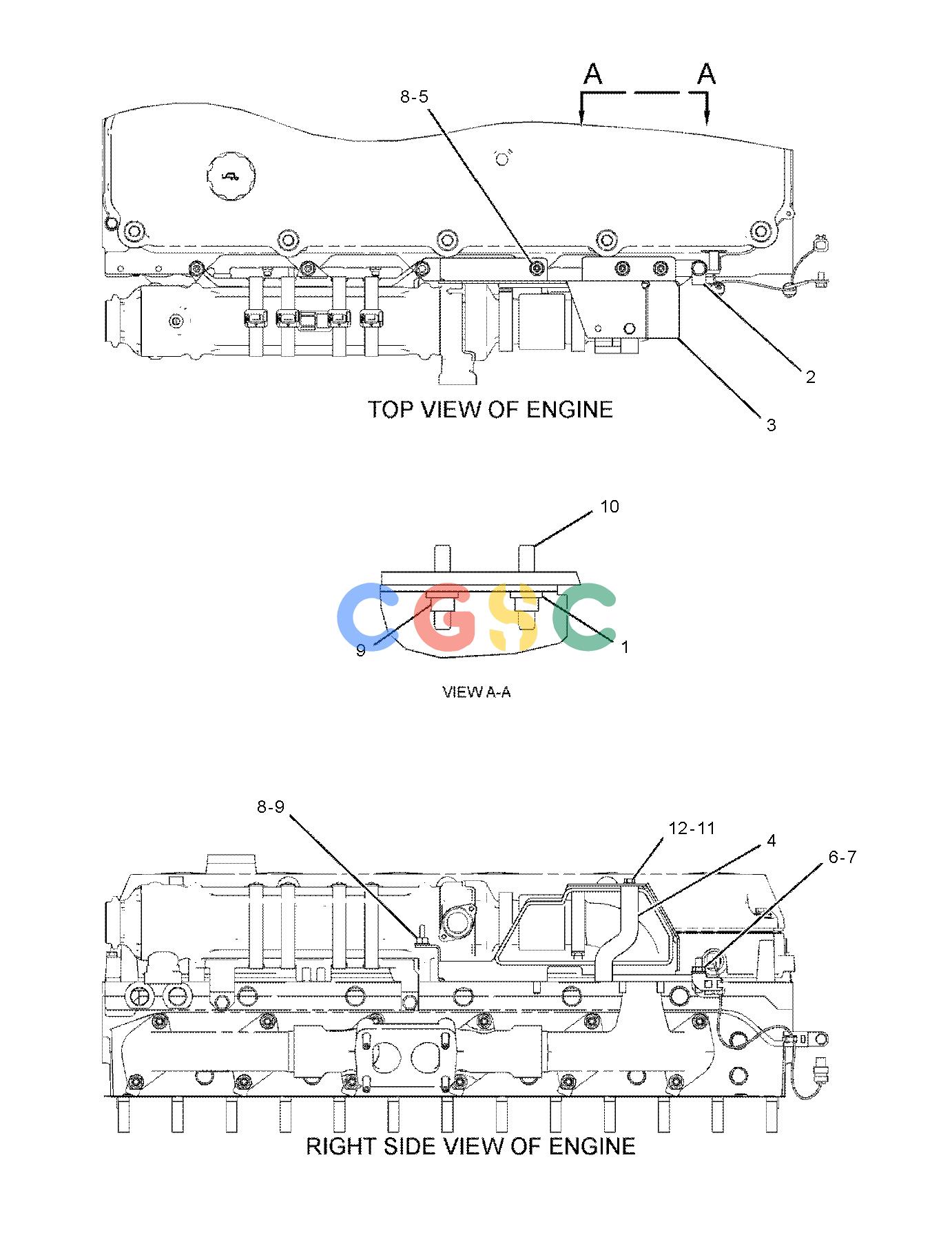

卡特零件查询（730C） 376-9420: SHIELD GP-HEAT
广数供应链运营团队, 15 02月, 2025，浏览：
909 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-7934 | [2] | WASHER-HARD(11X21X5-MM THK) | |
| 2. | 349-7699 | [1] | BRACKET | |
| 3. | 376-4841 | [1] | SHIELD AS-HEAT | |
| 4. | 376-9421 | [1] | BRACKET AS | |
| 5. | 101-3129M | [1] | STUD(M10X1.5-THD) | |
| 6. | 6V-1820M | [1] | BOLT(M10X1.5X30-MM) | |
| 7. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 8. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 10. | 180-3998M | [2] | STUD(M10X1.5X55-MM) | |
| 11. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
