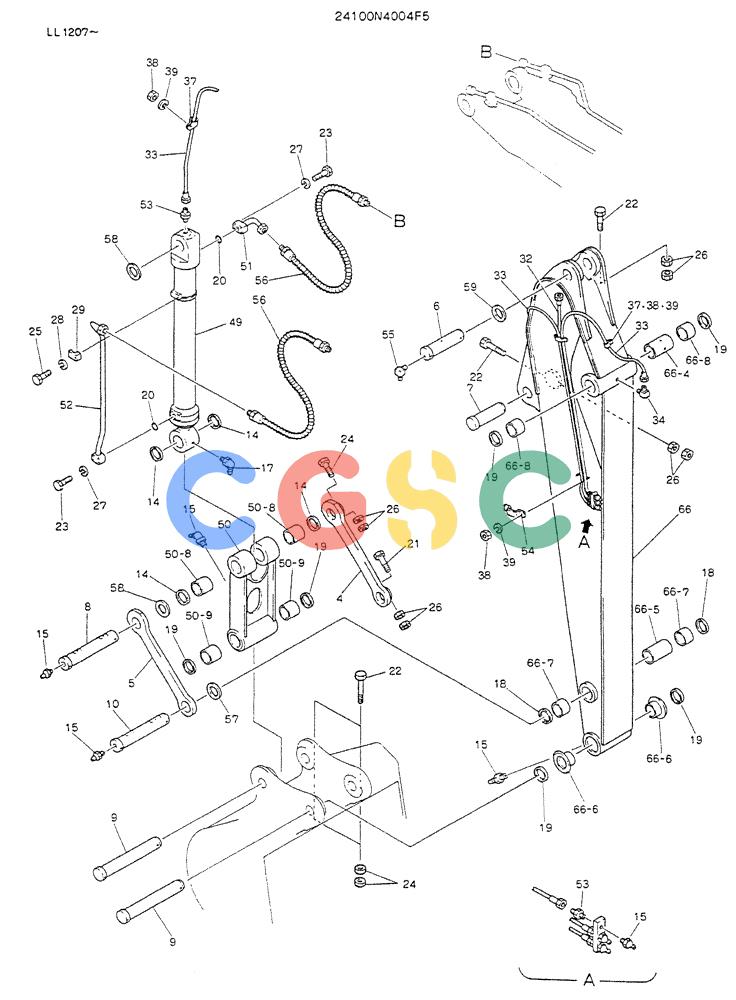

| . . | 24100N4004F5 | [1] | ARM ASSY | |
| 4. | 2406P2617D1 | [1] | LINK CONROD | KOB |
| 5. | 2406P2617D2 | [1] | LINK CONROD | KOB |
| 6. | 2419P1727 | [1] | PIN | KOB |
| 7. | 2419P1709D2 | [1] | PIN | KOB |
| 8. | 2419P1710D2 | [1] | PIN | KOB |
| 9. | 2419T4684D1 | [2] | PIN,90mm OD x 500mm L | KOBPIN Superseded by part number: 2419T7611D1 |
| 10. | 2419P1679D1 | [1] | PIN | KOB |
| 14. | 2445R372D2 | [4] | DUST CAP | KOBSEAL |
| 15. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 17. | ZG91V02000 | [1] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
| 18. | 2445R372D1 | [2] | DUST CAP | KOB |
| 19. | 2445R372D4 | [6] | DUST CAP | KOBSEAL |
| 20. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 21. | ZS13C16130 | [1] | SCREW | KOB |
| 22. | 2420T4330D2 | [4] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm Superseded by part number: HS18C16150G1 |
| 23. | ZS23C10070 | [2] | SCREW,Hex Socket Head, M10 x 70mm | KOBM10x1.50x70mm Superseded by part number: ZS28C10070 |
| 24. | ZS13C16140 | [6] | SCREW | KOBM16x2.0x140mm |
| 25. | ZS13C10055 | [2] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 26. | ZN12C16013 | [12] | NUT | KOBM16x2.0mm |
| 27. | ZW22K10000 | [8] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 28. | ZW22X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 29. | 2432T1187 | [1] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 32. | 2420R349D7 | [1] | HOSE | KOBHOSE Superseded by part number: 2420R349D200 |
| 33. | 2420R349D245 | [2] | HOSE | KOB2450mm Long (96-29/64 in) |
| 34. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 37. | ZC45X10009 | [4] | CLIP | KOBCLAMP Superseded by part number: ZC46X10009 |
| 38. | ZN11C06005 | [4] | NUT | KOBNUT M06x1.0mm Superseded by part number: ZN18C06005 |
| 39. | ZW22X06000 | [4] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 49. | 2438U959F1 | [1] | CYLINDER | KOBCYLINDER |
| 50. | 2406N808F1 | [1] | LINK, BUCKET | LINK, BUCKET |
| 50-8. | 2405T1263 | [2] | BUSHING | KOB |
| 50-9. | 2405T1264 | [2] | BUSHING | KOB |
| 51. | 2418T18163 | [1] | RIGID TUBE | KOB |
| 52. | 2418T17669 | [1] | RIGID TUBE | KOB |
| 53. | 2444Z2002 | [4] | HYD CONNECTOR | KOB1/8"PTx1/4"PFx32mm Long |
| 54. | 2416T3655 | [2] | CLAMP | KOB |
| 55. | ZH32Z04000 | [1] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 56. | ZX56N12130 | [2] | HOSE | KOB |
| 57. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 58. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 59. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 66. | 2411N1478F1 | [1] | ARM | ARM |
| 66-4. | 2418T17900 | [1] | SPACER | KOB |
| 66-5. | 2418T17497 | [1] | SPACER | KOB |
| 66-6. | 2405T1293 | [2] | BUSHING | KOB |
| 66-7. | B05T0041C2 | [2] | BUSHING | KOB |
| 66-8. | 2405T585C2 | [2] | BUSHING | KOB |
