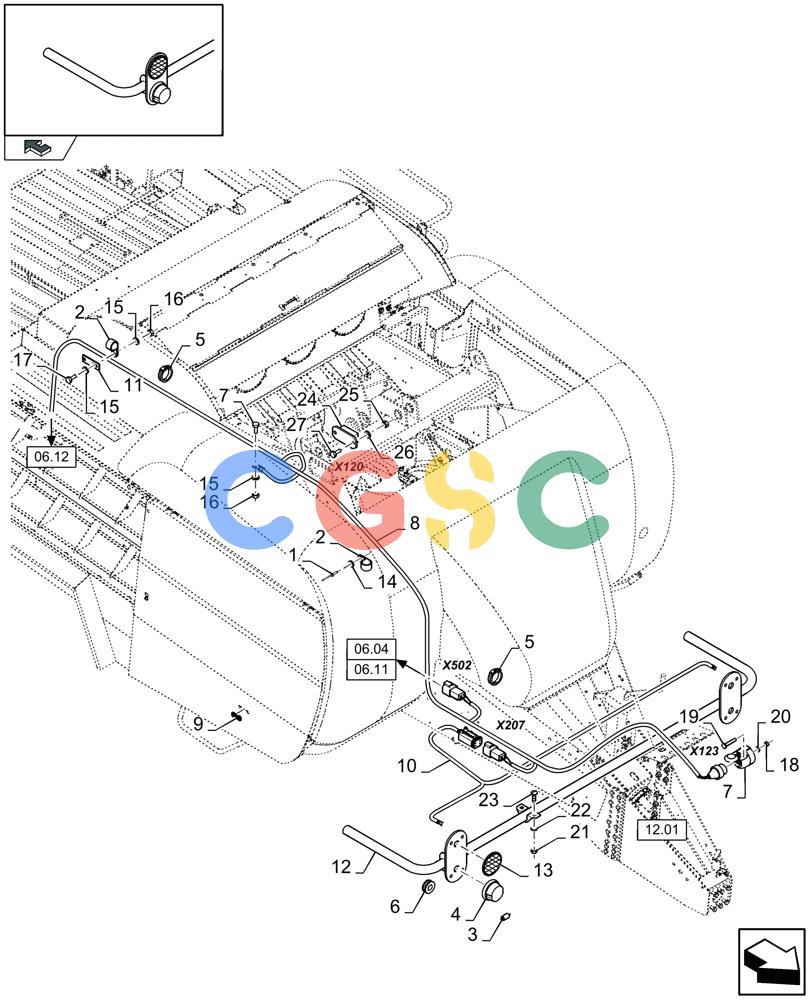

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (06.02[01]) - ROAD LIGHTS, FRONT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
443 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89512289
|
[5] |
RIVET
|
ZED
Superseded by part number: 9512289
|
| 2. |
84818443
|
[6] |
CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 3. |
470016
|
[2] |
BULB
|
NH
Superseded by part number: E35556
|
| 4. |
336483
|
[2] |
POSITION LAMP
|
NH
LIGHT, TAIL
|
| 5. |
9993154
|
[13] |
ELASTIC STRAP
|
PLO
Superseded by part number: 86566990
|
| 6. |
411809
|
[4] |
GROMMET
|
ZED
|
| 7. |
398224
|
[1] |
MULTIPOLE CONNECTOR,7 Pin
|
ZED
Superseded by part number: 83959716
|
| 8. |
84459691
|
[1] |
WIRE HARNESS
|
ZED
|
| 8. |
84072224
|
[1] |
WIRE HARNESS
|
ZED
|
| 9. |
9839002
|
[2] |
EXTERNAL REFLECTOR
|
ZED
|
| 10. |
84076074
|
[1] |
WIRE HARNESS
|
ZED
|
| 11. |
84007699
|
[1] |
COVER PLATE
|
ZED
|
| 12. |
84078427
|
[1] |
CENTRAL RAIL
|
ZED
|
| 12. |
84078429
|
[1] |
CENTRAL RAIL
|
ZED
|
| 13. |
799266
|
[2] |
LAMP REFLECTOR
|
NH
|
| 14. |
322356
|
[3] |
BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk
|
ZED
|
| 15. |
322357
|
[3] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 16. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 17. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 18. |
100012
|
[3] |
NUT,M4 x 0.7, Cl 8
|
NH
Superseded by part number: 57121
|
| 19. |
322355
|
[3] |
BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk
|
NH
|
| 20. |
301572
|
[3] |
SCREW,Cross Pan Hd, M4 x 35
|
ZED
Superseded by part number: 86585707
|
| 21. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 22. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 23. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 24. |
86561136
|
[1] |
MODULE
|
NH
|
| 26. |
412618
|
[2] |
WASHER,6.4mm ID x 18mm OD x 1.6mm Thk
|
ZED
|
| 27. |
9706703
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
