纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (04-001) - TOOL & ACCESSORIES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
677 次

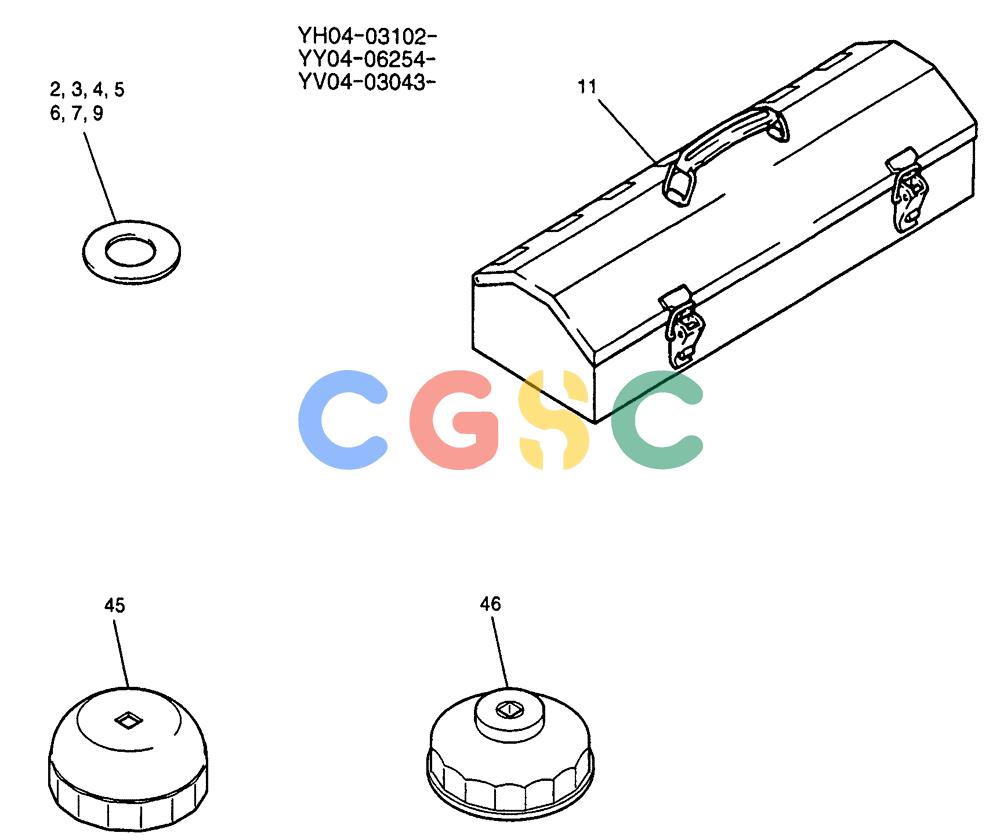

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY01T00001F7 | [1] | TOOL & ACCESSORY | |
| 2. | B16T0442D1 | [5] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOB(1.2) |
| 3. | B16T0442D2 | [3] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOB(1.6) |
| 4. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOB(2.3) |
| 5. | B16T0442D19 | [1] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOB(1.6) |
| 6. | B16T0442D20 | [1] | SHIM,100mm OD x 62mm ID x 2.3mm Thk | KOB(2.3) |
| 7. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOB(1.2) |
| 9. | B16T0442D30 | [1] | SHIM,100mm OD x 62mm ID x 2.0mm Thk | KOB(2.0) |
| 11. | YW01TU0001F1 | [1] | TOOL BOX | KOBASSY, SEE FIG. 04-002 |
| 45. | YY01T01009P1 | [1] | ADJUSTING WRENCH | KOBBOX |
| 46. | YY01T01014P1 | [1] | ADJUSTING WRENCH | KOBBOX |
