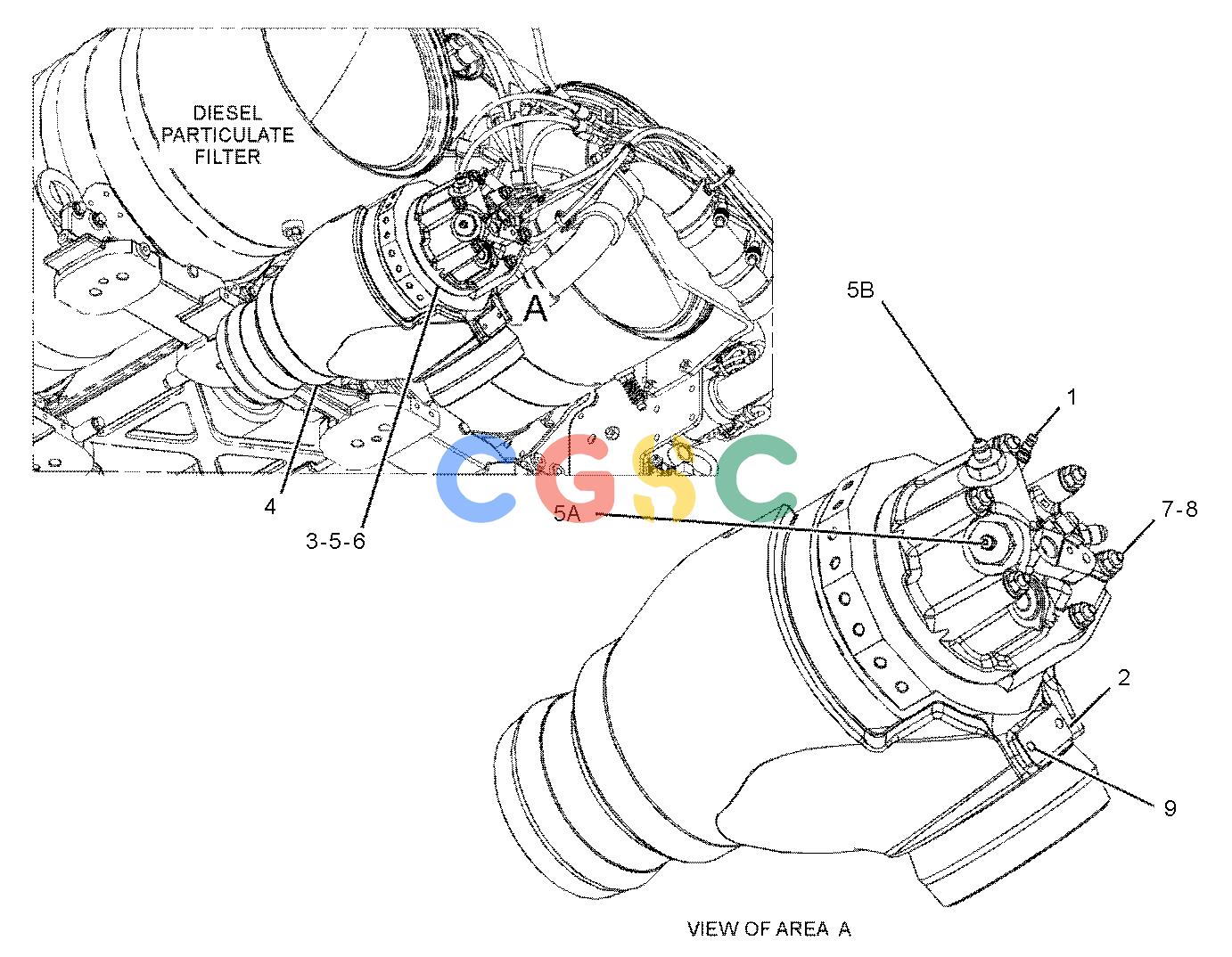

卡特零件查询（730C） 355-0875: COMBUSTION GP-EXHAUST
广数供应链运营团队, 15 02月, 2025，浏览：
595 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 295-3099 | [1] | SPARK PLUG | |
| 2. | 342-1490 | [1] | PLATE-INFORMATION(EXHAUST COMBUSTION) | |
| 3. | 348-3364 | [1] | TUBE | |
| 4. | 348-3392 | [1] | BODY AS-EXHAUST COMBUSTION | |
| 5. | 348-3402JY | [1] | HEAD GP-COMBUSTION(EXHAUST)(24-VOLT) | |
| 6. | 348-3425 | [2] | GASKET | |
| 7. | 291-5204M | [6] | LOCKNUT(M8X1.25-THD) | |
| 8. | 293-4967M | [6] | STUD-TAPERLOCK(M8X1.25X115-MM) | |
| 9. | 2K-3219 | [2] | SCREW-DRIVE(NO 6X0.25-IN) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 359-7418AJ | [1] | KIT-COMBUSTION HEAD | |
| | | | (KIT INCLUDES HEAD AS, BOLTS, GASKETS, LOCKNUTS, & SEALS) |
| | A | | NOT PART OF THIS GROUP |
| | J | | KIT SERVICES COMPONENTS OF GROUP MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
