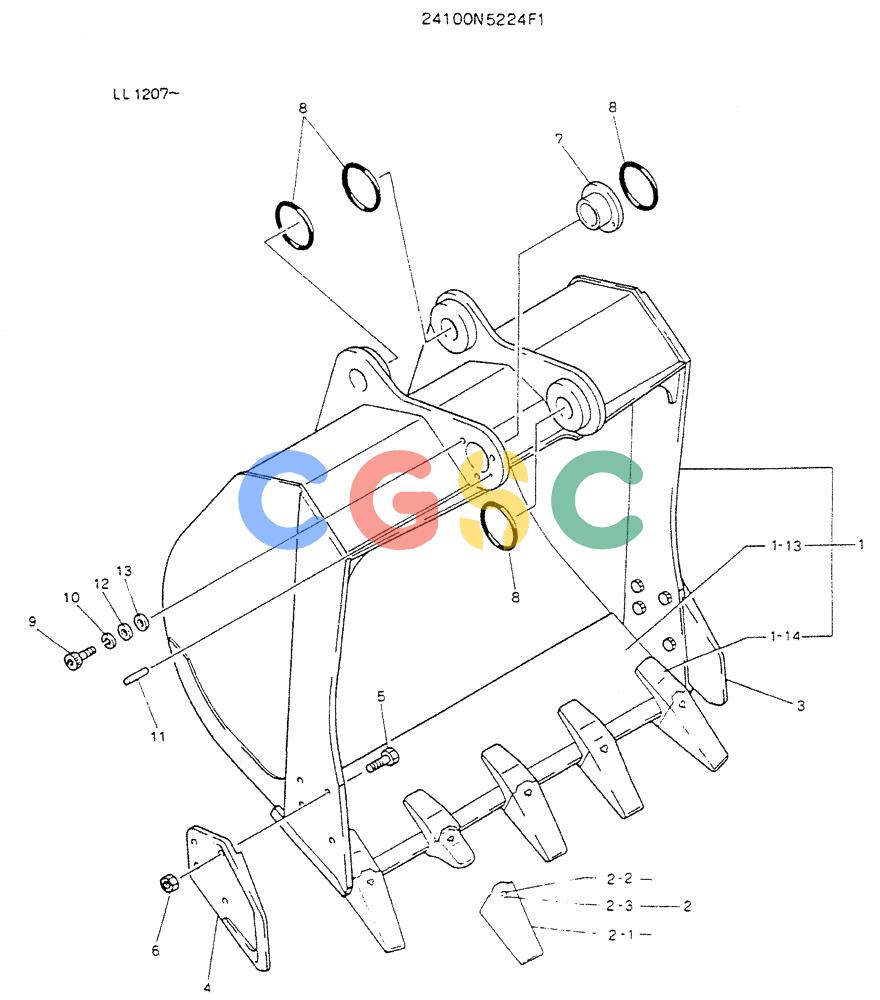

神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (09-010) - BUCKET ASSY, 0.65M3 (50FT LONG RANGE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
293 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5224F1 | [1] | BUCKET ASSY,0.65M3 | |
| 1. | 2412J819 | [1] | BUCKET | |
| 1-13. | 2412P521D15 | [1] | EDGE,CUTTING | |
| 1-14. | 2412U47 | [5] | ADAPTER | KOB |
| 2. | 2412U16F1 | [5] | TOOTH | KOB |
| 2-1. | 2412U16S1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 3. | 2412N278D11 | [1] | BLADE | KOB |
| 4. | 2412N278D21 | [1] | BLADE | KOB |
| 5. | ZS13C20050 | [8] | SCREW | KOBM20x2.50x50mm |
| 6. | ZN12C20016 | [8] | NUT | KOBM20x2.50mm |
| 7. | 2405T1052 | [1] | BUSHING | KOB |
| 8. | 2445Z887 | [4] | O-RING | KOBID 104.5 ± 0.40 x OD 123.1mm |
| 9. | ZS23C14030 | [3] | SCREW,Hex Socket Head, M14 x 30mm | KOBM14x2.0x30mm |
| 10. | ZW22K14000 | [3] | LOCK WASHER | KOBID 14.2 x OD 21.8 x Th 3.5mm |
| 11. | 2419T3772D2 | [1] | RIGID TUBE | KOB |
| 12. | 2418T12260D2 | [3] | SHIM | KOB |
| 13. | 2418T12260D1 | [21] | SHIM | KOB |
