神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (01-005) - COUNTER WEIGHT ASSY (24100P2221F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
229 次

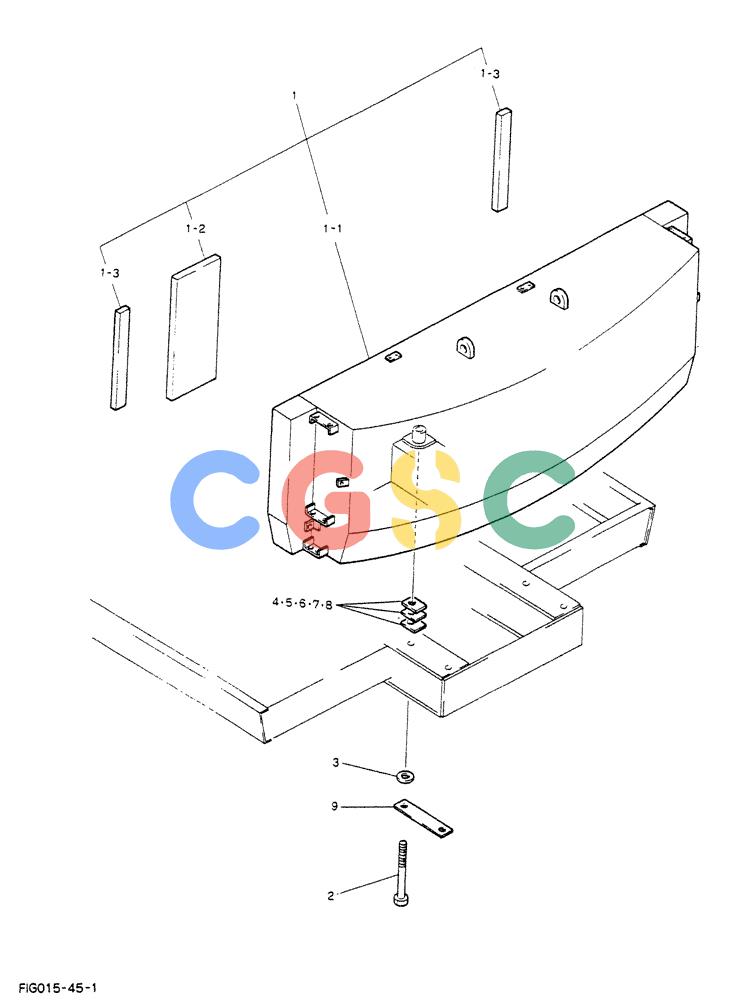

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2221F1 | [1] | COUNTER-WEIGHT ASSY | |
| 1. | 24100P2228F1 | [1] | COUNTERWEIGHT ASSV | |
| 1-1. | 2422J2720 | [1] | COUNTERWEIGHT | |
| 1-2. | 2479T1722 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 1-3. | 2427T1837 | [2] | INSULATION, SOUND | INSULATION, SOUND |
| 2. | R20P0021D18 | [4] | SCREW | KOB |
| 3. | R16T0152D6 | [4] | WASHER | KOBFlat -- ID 37 x OD 66 x Th 6.0mm |
| 4. | 2420T6013D1 | [14] | SHIM | KOB130x80x0.4mm |
| 5. | 2420T6013D5 | [2] | SHIM | KOB130x80x3.2mm |
| 6. | 2420T6013D6 | [2] | SHIM | KOB130x80x4.5mm |
| 7. | 2420T6013D4 | [2] | SHIM | KOB130x80x2.3mm |
| 8. | 2420T6013D3 | [2] | SHIM | KOB |
| 9. | 2418T17679 | [2] | PLATE | KOB |
