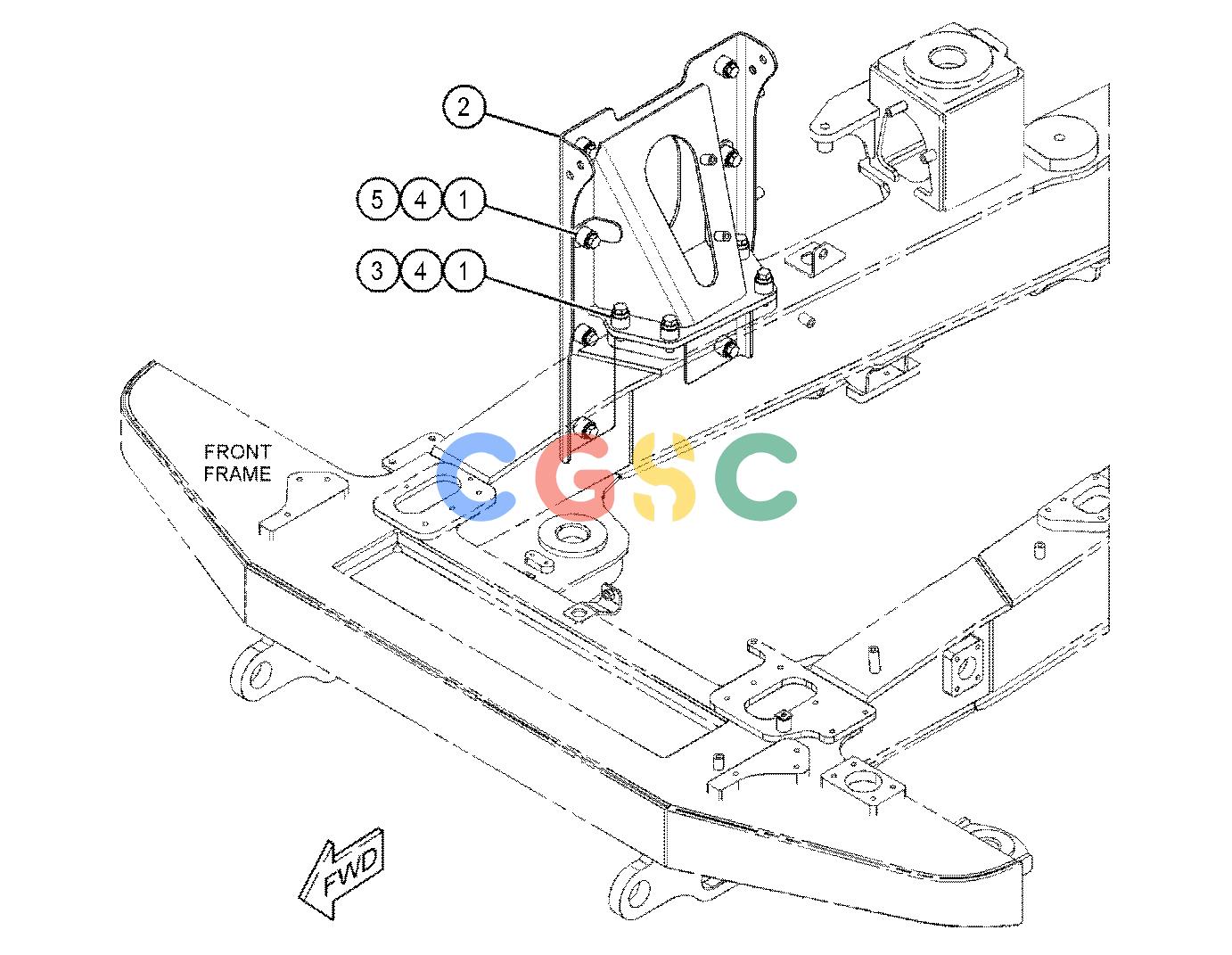

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 305-4173 | [12] | SPACER(17.5X38X25-MM THK) | |
| 2. | 453-2962 | [1] | BRACKET AS | |
| 3. | 198-4768 | [4] | WASHER-HARD(17.5X32X8-MM THK) | |
| 4. | 8T-0357M | [12] | BOLT(M16X2X70-MM) | |
| 5. | 9X-8268 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
广数供应链运营团队, 15 02月, 2025，浏览： 472 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 305-4173 | [12] | SPACER(17.5X38X25-MM THK) | |
| 2. | 453-2962 | [1] | BRACKET AS | |
| 3. | 198-4768 | [4] | WASHER-HARD(17.5X32X8-MM THK) | |
| 4. | 8T-0357M | [12] | BOLT(M16X2X70-MM) | |
| 5. | 9X-8268 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
