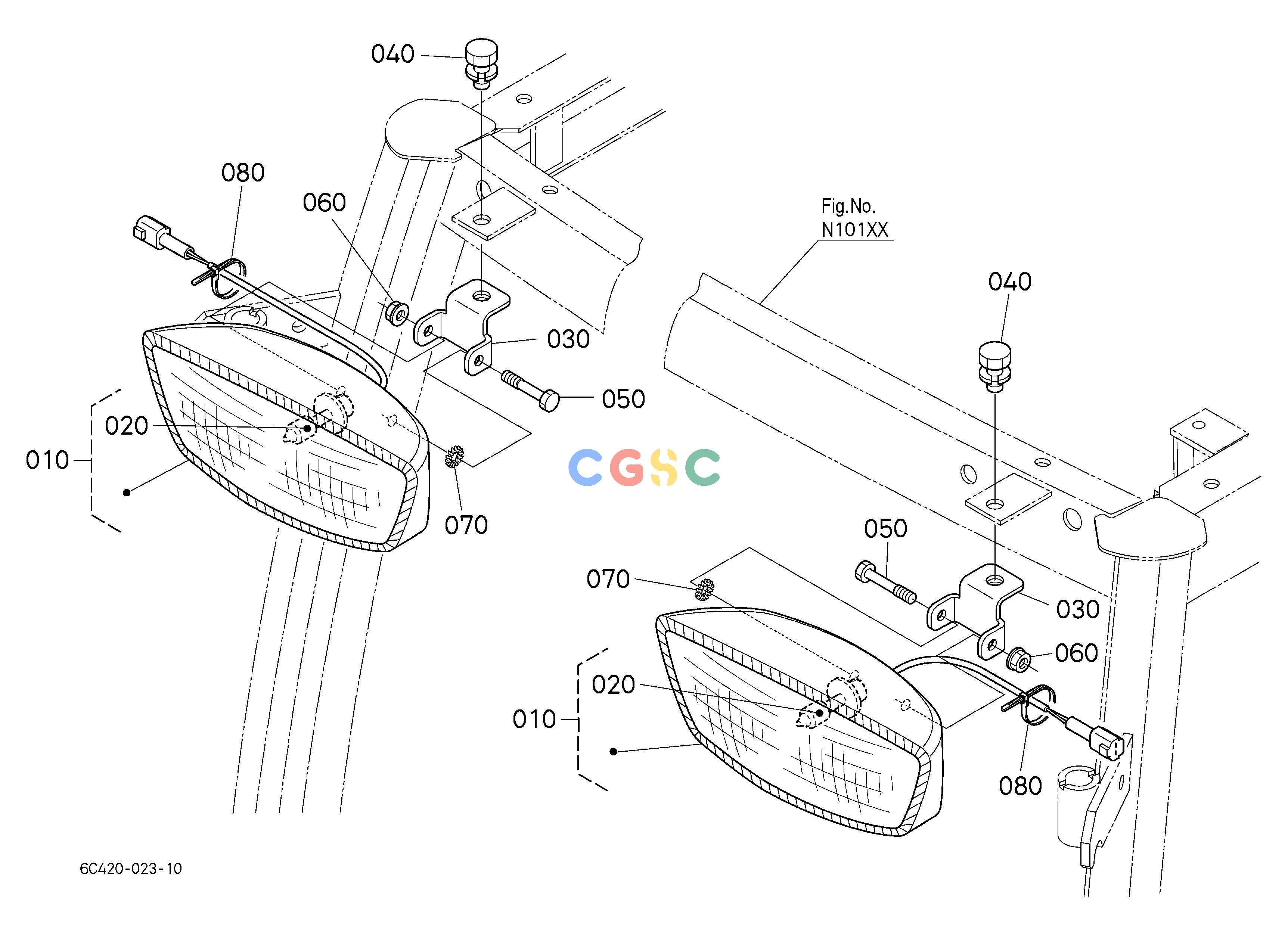

久保田零件查询B32000 WORK LIGHT ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17075300
|
[2] |
LIGHT,WORK
|
0.9460(lbs); 0.430
|
| 020. |
T127591060
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 030. |
T185575310
|
[2] |
STAY,WORKING LIGHT
|
0.1650(lbs); 0.075
|
| 040. |
0113351020
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
T027086210
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 060. |
T027086220
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 070. |
0441350060
|
[2] |
WASHER,TOOTH COMB.
|
0.0022(lbs); 0.001
|
| 080. |
5358164150
|
[2] |
BAND,CORD
|
0.0044(lbs); 0.002
|
