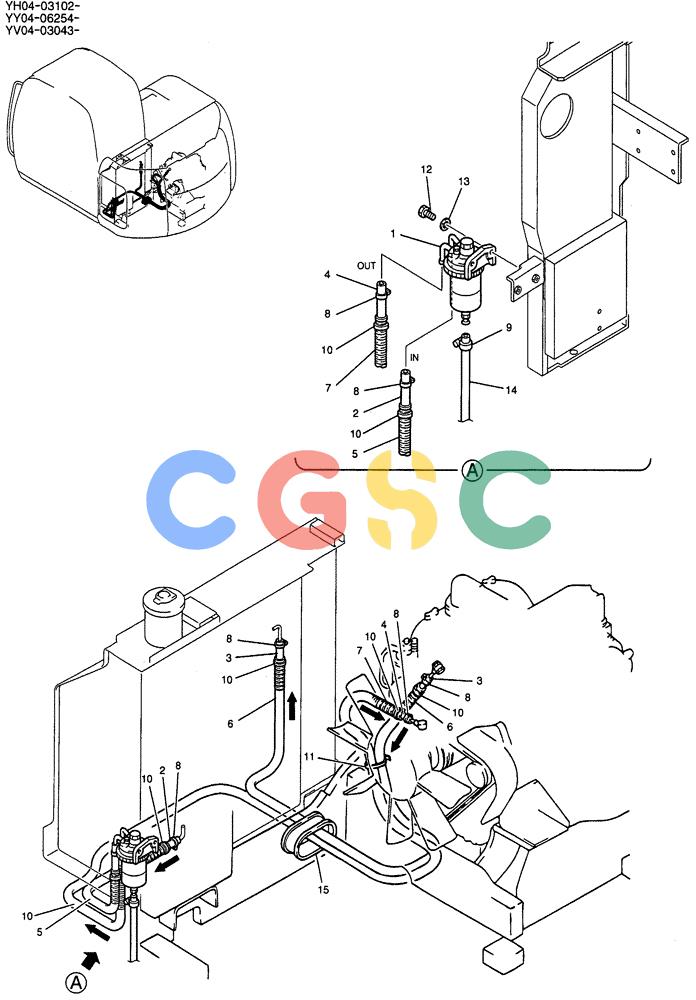

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-012) - FUEL LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY21P00005F1 | [1] | FUEL LINES | |
| 1. | YM02P01039F1 | [1] | SEPARATOR | KOBASSY, WATER (SEE FIG 01-013) |
| 3. | 2444R2492D150 | [1] | HOSE | KOB |
| 5. | LS21P01001DE | [1] | RIGID TUBE | KOB |
| 6. | 2418Z1333D6 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1400mm Length | KOB |
| 7. | LS21P01001D6 | [1] | RIGID TUBE | KOB |
| 8. | ZC16X01800 | [6] | CLIP | KOB |
| 9. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| 10. | PY01P01043D3 | [6] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 11. | PY01P01043D5 | [1] | CABLE TIE,301mm L | KOB |
| 12. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOBCAP |
| 13. | ZW16X08000 | [2] | WASHER | KOB |
| 15. | YX21P01004P1 | [1] | GROMMET | KOB |
