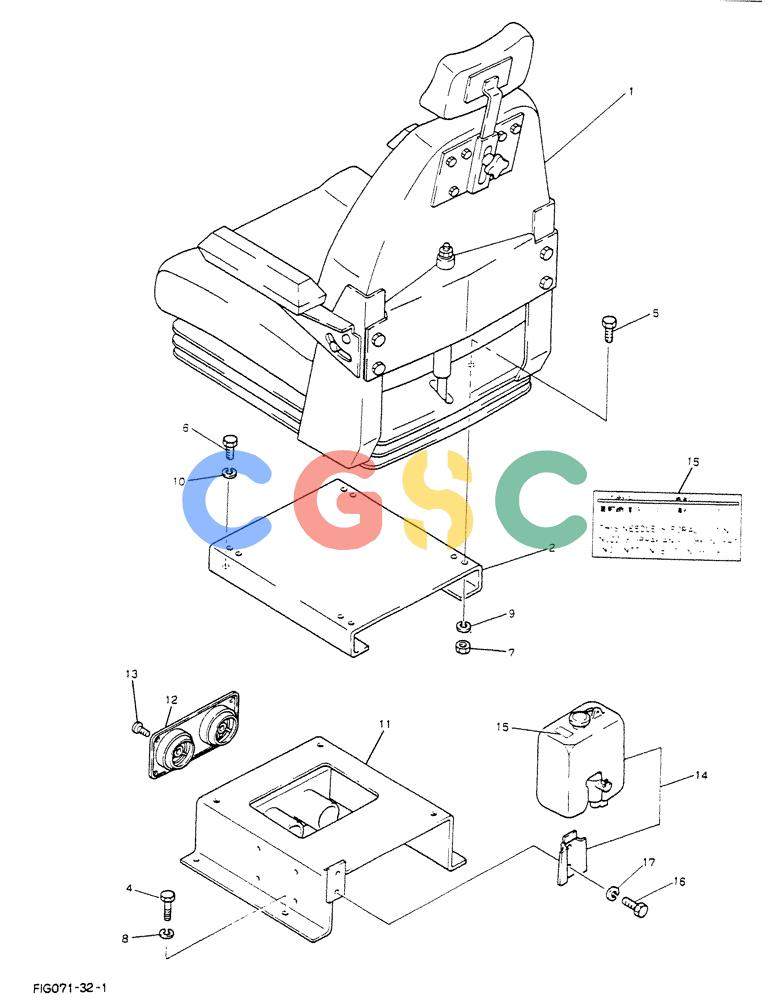

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (02-011) - SEAT ASSY (FOR NORTH EUROPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
647 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2160F3 | [1] | SEAT ASSY | SEAT ASSY |
| 2. | 2414P6346 | [1] | STAND | |
| 4. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 5. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 6. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 7. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 8. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 9. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 10. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 11. | 2416J867 | [1] | STAND | KOB |
| 12. | 2416R231 | [1] | GRILLE | KOB |
| 13. | 2420Z1040 | [4] | SCREW | KOB |
| 14. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| 15. | 2432Z327 | [1] | PLATE | KOB |
| 16. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 17. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
