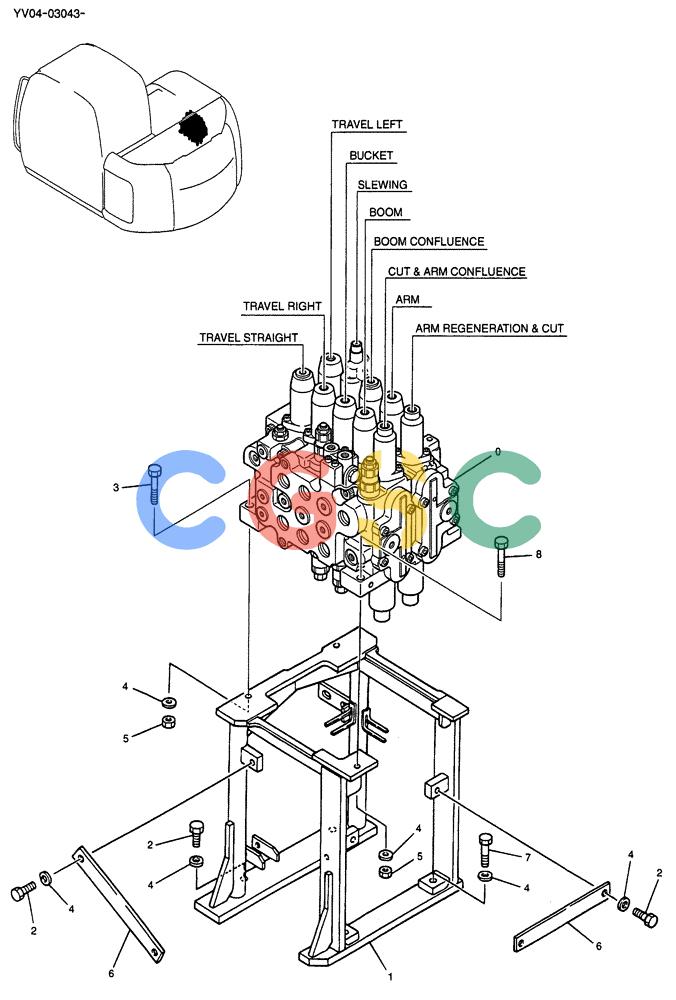

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-019) - VALVE INSTAL P/N YX64H00002F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YV30V00013F1 | [1] | CONTROL VALVE | KOBASSY |
| . . | YX64H00002F1 | [1] | VALVE | KOBINSTAL |
| 1. | YX64H01034P1 | [1] | BRACKET | KOB |
| 2. | ZS18C12030 | [6] | SCREW,Hex, M12 x 30mm | KOBCAP |
| 3. | ZS18C12060 | [2] | SCREW,Hex, M12 x 60mm | KOBCAP |
| 4. | ZW16H12000 | [11] | WASHER | KOB |
| 5. | ZN18C12010 | [3] | NUT | KOB |
| 6. | YX64H01010P1 | [2] | PLATE | KOB |
| 7. | ZS18C12045 | [2] | SCREW,Hex, M12 x 45mm | KOBCAP |
| 8. | ZS18C12070 | [1] | SCREW,Hex, M12 x 70mm | KOBCAP |
