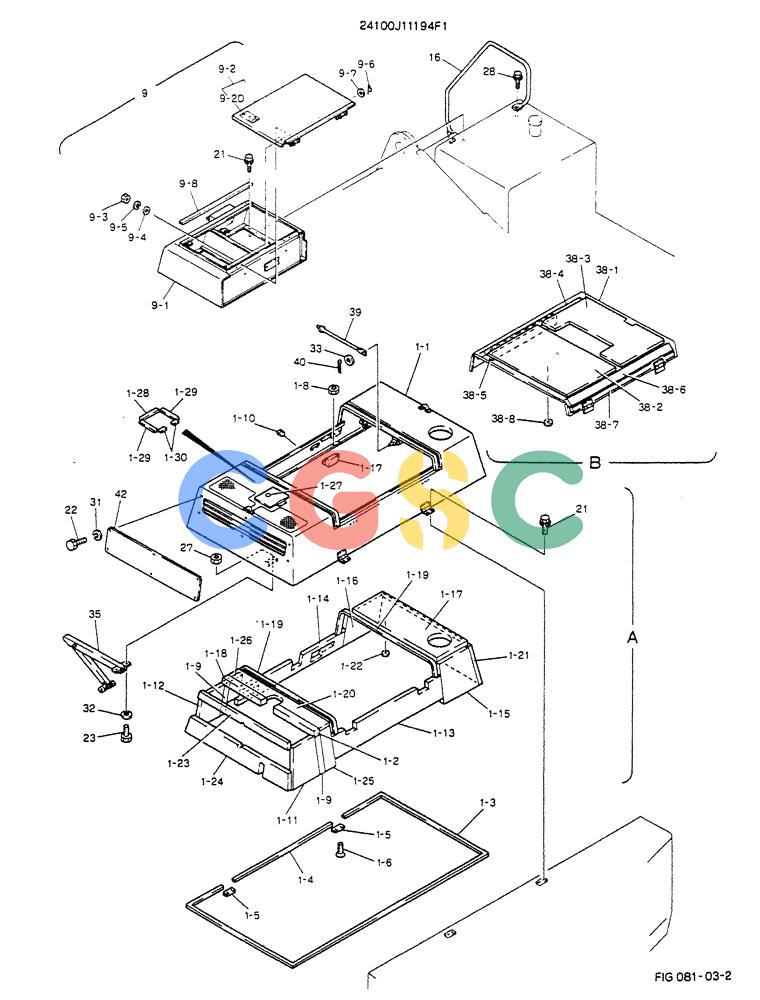

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (02-016[02]) - GUARD ASSY (FOR SILENT TYPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11194F1 | [1] | GUARD ASSY | |
| 1. | 24100N5953F1 | [1] | COVER ASSY | |
| 1-1. | 2414J2166 | [1] | COVER | |
| 1-2. | 2479Z1821 | [1] | INSULATOR | KOB |
| 1-3. | 2416Z603 | [1] | RUBBER SLEEVE | KOB |
| 1-4. | 2416Z490D23 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 1-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOB |
| 1-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 1-7. | 2406Z304 | [2] | HANDLE | KOB |
| 1-8. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 1-9. | 2479Z1499 | [2] | INSULATOR | KOB |
| 1-10. | 2420R429D14 | [2] | GROMMET | KOB |
| 1-11. | 2427Z1176 | [1] | INSULATION,SOUND | |
| 1-12. | 2427Z1177 | [1] | INSULATION,SOUND | |
| 1-13. | 2427Z1178 | [1] | INSULATION,SOUND | |
| 1-14. | 2427Z1179 | [1] | INSULATION,SOUND | |
| 1-15. | 242721180 | [1] | INSULATION,SOUND | |
| 1-16. | 2427Z1181 | [1] | INSULATION,SOUND | |
| 1-17. | 2427Z1182 | [1] | INSULATION,SOUND | |
| 1-18. | 2479Z1822 | [1] | INSULATOR | |
| 1-19. | 2416Z607 | [2] | RUBBER,CUSHION | |
| 1-20. | 2427Z1183 | [1] | INSULATION,SOUND | |
| 1-21. | 2427Z927 | [1] | INSULATION,SOUND | |
| 1-22. | 2418Z8864 | [29] | WASHER | |
| 1-23. | 2427Z1184 | [1] | INSULATION, SOUND | |
| 1-24. | 2427Z1185 | [1] | INSULATION, SOUND | |
| 1-25. | 2427Z1186 | [1] | INSULATION,SOUND | |
| 1-26. | 2427Z1187 | [1] | INSULATION,SOUND | |
| 1-27. | 2421T222 | [1] | LOCK | KOBCYLINDER Superseded by part number: YX21C01159F1 |
| 1-28. | 2416Z605D1 | [1] | RUBBER | KOB |
| 1-29. | 2416Z605D2 | [2] | RUBBER | KOB |
| 1-30. | 2416Z605D3 | [2] | RUBBER | KOB |
| 2. | 2414T4430F1 | [1] | COVER ASSY | |
| 2-1. | 2414P6656 | [1] | COVER | COVER |
| 2-10. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 2-2. | 2416Z485D1 | [1] | CUSHION | KOB |
| 2-3. | 2427Z1139 | [1] | INSULATION,SOUND | |
| 2-4. | 2427Z1140 | [1] | INSULATION,SOUND | |
| 2-5. | 2416Z490D21 | [1] | RUBBER.CUSHION | |
| 2-6. | 2427P1836D3 | [1] | INSULATING PANEL | KOBSTRIP,WEATHER |
| 3. | 2414T4429F1 | [1] | COVER ASSY | |
| 3-1. | 2414P6655 | [1] | COVER | COVER |
| 3-1D. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 3-2. | 2416Z485D1 | [1] | CUSHION | KOB |
| 3-3. | 2427Z1136 | [1] | INSULATION,SOUND | |
| 3-4. | 2427Z1137 | [1] | INSULATION,SOUND | |
| 3-5. | 2427Z1138 | [1] | INSULATION,SOUND | |
| 3-6. | 2416Z490D25 | [1] | RUBBER,CUSHION | |
| 4. | 2414T4431F1 | [1] | COVER ASSY | |
| 4-1. | 2414P6458 | [1] | COVER | COVER |
| 4-2. | 2427Z1141 | [1] | INSULATION,SOUND | |
| 4-3. | 2416Z487D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 4-4. | 2416Z490D3 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 5. | 2414P6763F1 | [1] | COVER ASSY | |
| 5-3. | 2416Z600 | [1] | INSULATOR | |
| 6. | 2414P5765 | [1] | COVER | |
| 7. | 2414N3783 | [1] | COVER | KOB |
| 8. | 2414N3784 | [1] | COVER | KOB |
| 9. | 24100N5771F1 | [1] | BATTERY BOX | KOB |
| 9-1. | 2414N3786 | [1] | BOX | KOB |
| 9-2. | 2414P6459 | [1] | COVER | COVER |
| 9-2D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-3. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-7. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 9-8. | 2416Z440D6 | [1] | RUBBER,CUSHION | |
| 10. | 2414T4425F1 | [1] | COVER ASSY | |
| 10-1. | 2414P6766 | [1] | COVER | COVER |
| 10-2. | 2479Z1792 | [1] | INSULATOR | |
| 11. | 2414T4395F1 | [1] | COVER ASSY | |
| 11-1. | 2414P6767 | [1] | COVER | COVER |
| 11-2. | 2479Z1765 | [1] | INSULATOR | |
| 11-3. | 2416Z822 | [1] | CUSHION | KOB |
| 11-4. | 2479Z1856 | [1] | INSULATOR | KOBINSULATOR |
| 12. | 2416J884 | [1] | BRACKET | BRACKET |
| 13. | 2416N3524 | [1] | BRACKET | KOB |
| 14. | 2416N3525 | [1] | BRACKET | BRACKET |
| 15. | 2416T13261 | [6] | BRACKET | KOB |
| 16. | 2427P2973 | [1] | HANDRAIL | KOB |
| 17. | 2427R475 | [2] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 18. | 2427R302D2 | [2] | CATCH | KOB |
| 19. | 2416T13435 | [2] | RUBBER | KOB |
| 20. | 2420T6788 | [12] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 21. | 2420T6786 | [45] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 22. | ZS18C10025 | [14] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZS18C08020 | [12] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 24. | 2416T6289D2 | [3] | STAY | KOB |
| 25. | 2414T4403 | [1] | COVER | COVER |
| 26. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 27. | ZN18C08007 | [16] | NUT | KOBM08x1.25mm |
| 28. | 2420T6787 | [12] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 29. | ZW16X08000 | [12] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | 2416N3522 | [1] | BRACKET | KOB |
| 31. | ZW26X10000 | [32] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW26X08000 | [20] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 33. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 35. | 2416P8732 | [1] | STAY | KOB |
| 36. | 2416N3523 | [1] | BRACKET | KOB |
| 37. | 2420Z1030 | [1] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 38. | 24100P2673F1 | [1] | COVER ASSY | |
| 38-1. | 2414J2165 | [1] | COVER | |
| 38-2. | 2427Z1239 | [1] | INSULATION,SOUND | |
| 38-3. | 2427Z1240 | [1] | INSULATION,SOUND | |
| 38-4. | 2479T1621D2 | [1] | INSULATION,SOUND | |
| 38-5. | 2427Z1190 | [1] | INSULATION,SOUND | |
| 38-6. | 2427Z1104D1 | [1] | INSULATION,SOUND | |
| 38-7. | 2427Z1104D2 | [1] | INSULATION,SOUND | |
| 38-8. | 2418T8864 | [37] | WASHER | KOB |
| 39. | 2416T11852 | [1] | | |
| 40. | ZP15D03020 | [1] | SPLIT PIN | KOB |
| 41. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 42. | 2418T19608 | [1] | PLATE | |
