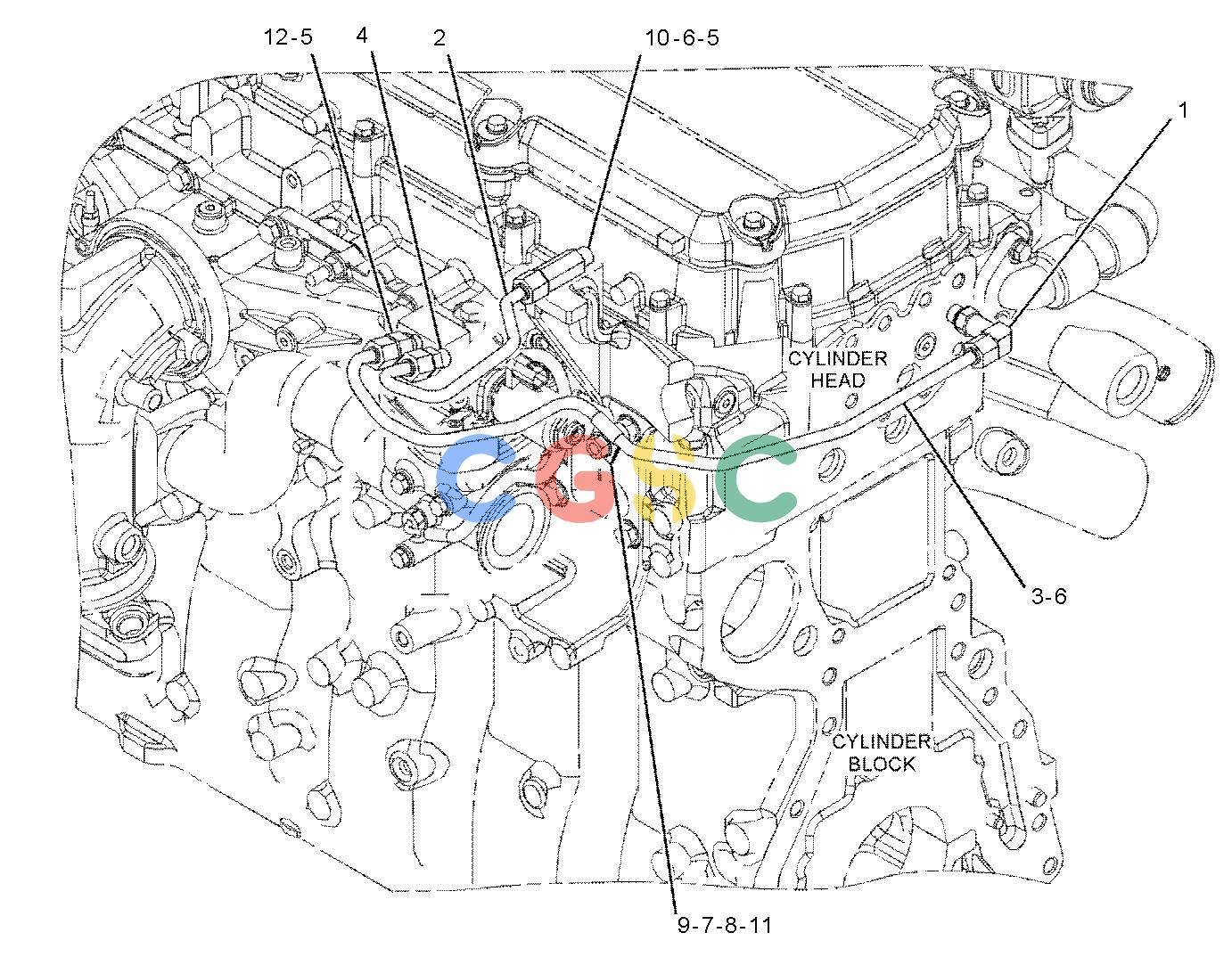

卡特零件查询（730C） 343-9868: LINES GP-ENGINE OIL
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 341-0102C | [1] | ELBOW AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 341-0101 | [1] | ELBOW | |
| 2. | 364-5883C | [1] | TUBE AS | |
| 3. | 364-5882C | [1] | TUBE AS | |
| 4. | 183-3399 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 5. | 214-7568C | [2] | SEAL-O-RING | |
| 6. | 228-7089C | [2] | SEAL-O-RING | |
| 7. | 6V-5839C | [1] | WASHER(11X21X2.5-MM THK) | |
| 8. | 2Y-5829CM | [1] | NUT(M10X1.5-THD) | |
| 9. | 8S-8820C | [1] | CLIP | |
| 10. | 9X-2297 | [1] | CONNECTOR | |
| 11. | 272-1777C | [1] | WASHER-HARD(11X18.5X15-MM THK) | |
| 12. | 7E-9898C | [1] | CONNECTOR | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
