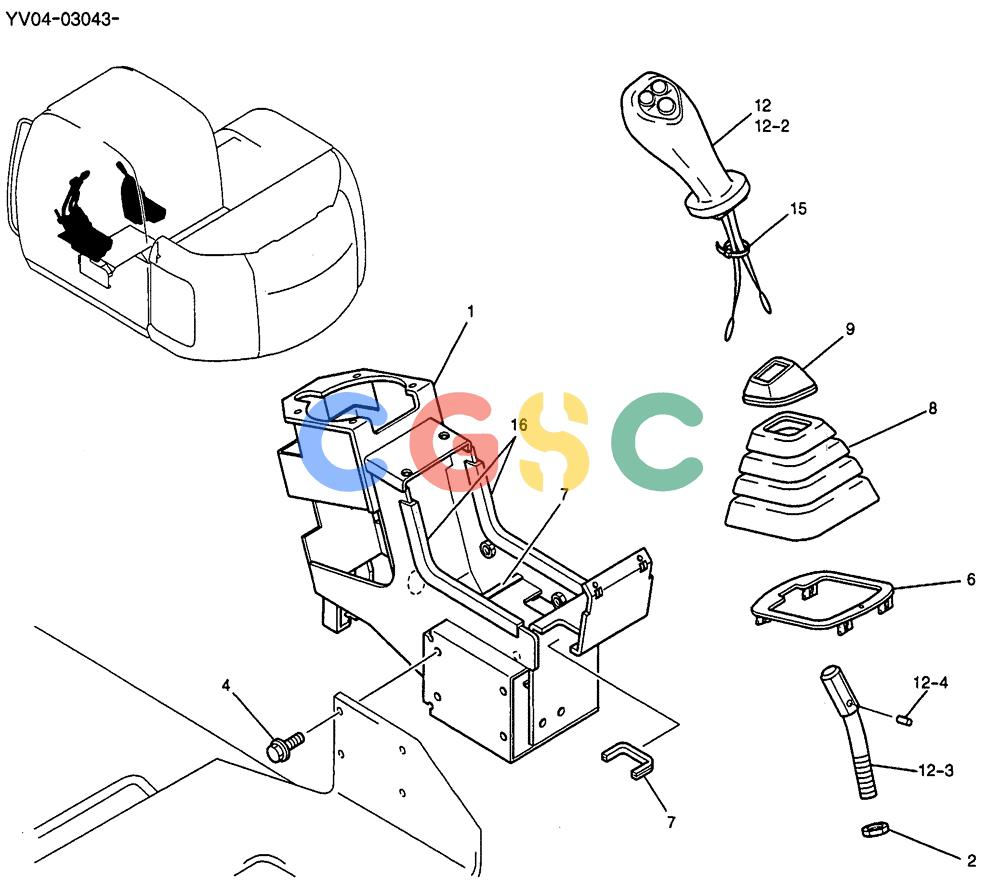

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-027) - CONTROL BOX ASSY (FOR RIGHT SIDE) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY03M01015P1 | [1] | CONTROL | KOBBOX |
| 2. | ZN18C14011 | [1] | NUT | KOB |
| 4. | ZM22C08025 | [4] | BOLT | KOBSEMS |
| 6. | YT03M01051P2 | [1] | PLATE | KOB |
| 7. | PM22C01020D5 | [1] | TRIM PANEL | KOB, Serial Range: YV04-03043-YV04-03251 |
| 8. | LF03M01008P1 | [1] | BELLOWS | KOB |
| 9. | LF03M01004P1 | [1] | BOOT | KOB |
| 12. | YB03M01003F3 | [1] | GRIP | KOBASSY |
| 12-2. | LF03M01005F3 | [1] | HANDLE | KOBASSY |
| 12-3. | YB03M01002P1 | [1] | LEVER | KOB |
| 12-4. | ZP26D05028 | [1] | PIN,5mm OD x 28mm L, Slotted | KOBSPRING |
| 15. | PY01P01043D1 | [1] | CABLE TIE,4.80mm W x 122mm L | KOB Superseded by part number: YT50C01100P1 |
| 16. | PM22C01020DD | [2] | TRIM, Start Serial: YV04-03252 | |
