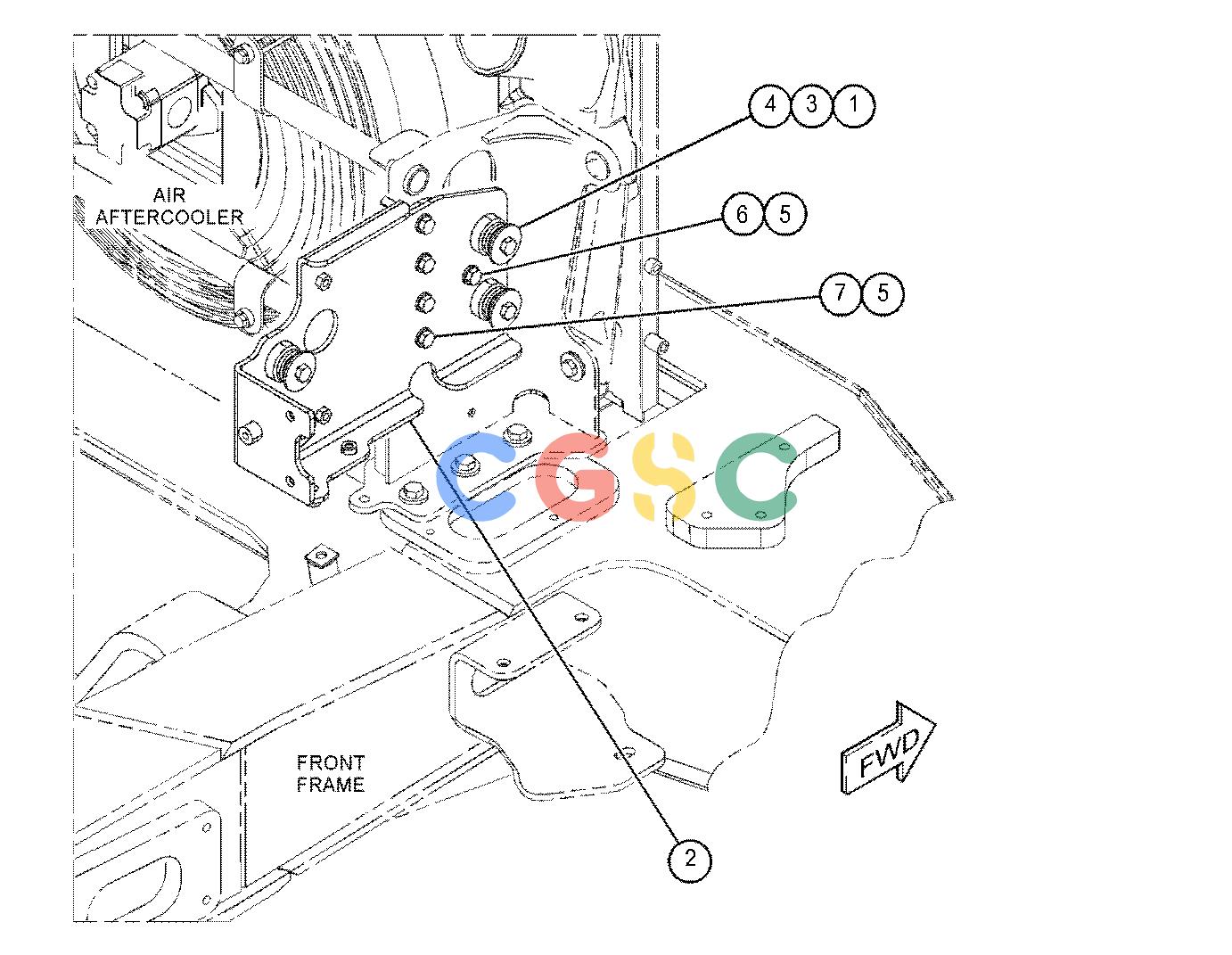

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 169-0908 | [4] | MOUNT AS | |
| 2. | 541-7657 | [1] | BRACKET AS | |
| 8R-3857M | [2] | BOSS(M8X1.25X12-MM) | ||
| 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | ||
| 3. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 4. | 8T-4226 | [4] | WASHER-PLATED(10.5X45X3-MM THK) | |
| 5. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 7. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| M | METRIC PART | |||
