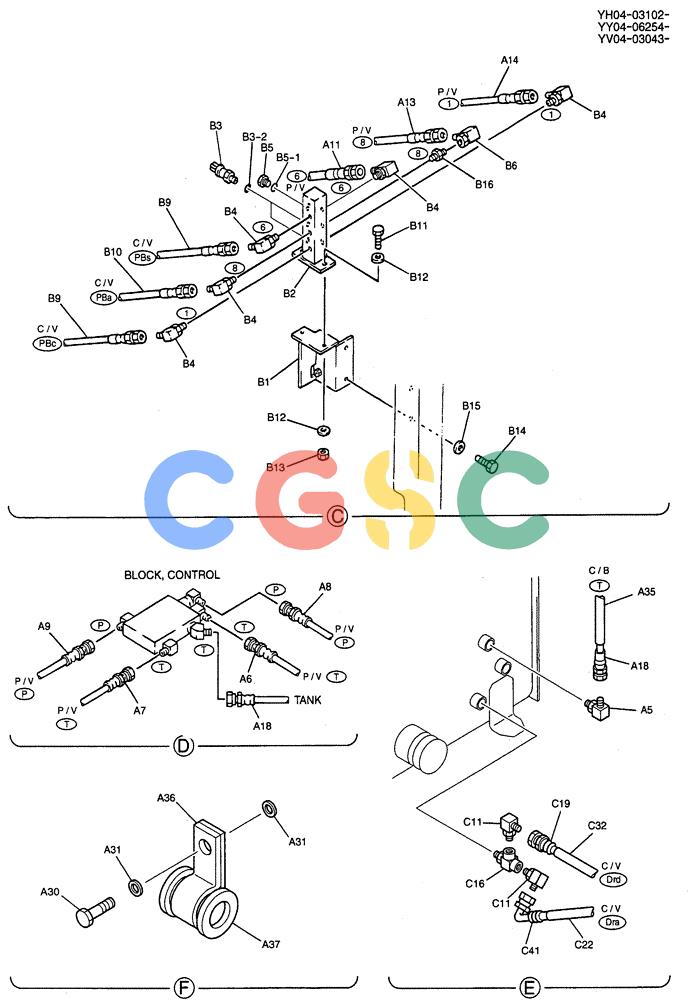

| . . | YY68H00043F1 | [1] | CONTROL | KOBLINES, REMOTE |
| A1. | YY30V00055F1 | [2] | PILOT VALVE | KOBASSY |
| A2. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB |
| A3. | PH03M01250P1 | [2] | BOOT | KOB |
| A4. | ZH22X06000 | [10] | HYD CONNECTOR | KOB |
| A5. | ZH32X06000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| A6. | 2420R537D140 | [1] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB |
| A7. | 2420R537D195 | [1] | HOSE,9.53mm ID x 1950mm L | KOB |
| A8. | 2420R349D145 | [1] | HOSE | KOB Superseded by part number: HX21E04145DX |
| A9. | 2420R349D200 | [1] | HOSE ASSY. | KOB |
| A10. | YV68H01012D4 | [1] | HOSE | KOB |
| A11. | YV68H01004D1 | [1] | HOSE | KOB |
| A12. | YY68H01004D2 | [1] | HOSE | KOB |
| A13. | YV68H01004D3 | [1] | HOSE | KOB |
| A14. | YV68H01003D1 | [1] | HOSE | KOB |
| A15. | YV68H01003D2 | [1] | HOSE | KOB |
| A16. | YV68H01005D3 | [1] | HOSE | KOB |
| A17. | YV68H01005D4 | [1] | HOSE | KOB |
| A12. | 2420R537D260 | [1] | HOSE,9.60mm ID x 2600mm L | KOB |
| A19. | YR68H01016D1 | [2] | HOSE | KOB |
| A20. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| A21. | YT64H01029D4 | [1] | RUBBER | KOB |
| A22. | YT64H01029D7 | [1] | RUBBER | KOB |
| A23. | YT64H01029D8 | [1] | RUBBER | KOB |
| A24. | YT64H01029D6 | [1] | RUBBER | KOB |
| A25. | YX68H01004D1 | [1] | GROMMET | KOB |
| A26. | PY01P01043D6 | [2] | CABLE TIE,4.80mm W x 383mm L | KOB |
| A27. | 2432R325 | [1] | CLIP | KOB |
| A28. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBCAP |
| A29. | ZW16X06000 | [8] | WASHER | KOB Superseded by part number: 86588450 |
| A30. | ZS18C10020 | [3] | SCREW,Hex, M10 x 20mm | KOBCap |
| A31. | ZW16H10000 | [4] | WASHER | KOB |
| A32. | YV68H01011P1 | [1] | GROMMET | KOB |
| A33. | ZC48X16011 | [1] | CLIP | KOB |
| A35. | PU13E01010DL | [1] | TUBE | KOBHOSE, GUARD |
| A36. | ZC46X46014 | [1] | CLIP | KOB |
| A37. | YN03H01434P1 | [1] | BUSHING | KOB |
| A38. | PY01P01043D8 | [1] | CABLE TIE,102mm L | KOB, Start Serial: YV04-03148 |
| . . | YY64H00035F2 | [1] | CONTROL | KOBLINES, BLOCK |
| B1. | YV64H01032P1 | [1] | BRACKET | KOB |
| B2. | YX64H01028P1 | [1] | BLOCK ASSY. | KOB |
| B3. | LC52S00011P1 | [2] | SENSOR | KOBPRESS (L P.) Superseded by part number: LC52S00019P1 |
| B3-2. | ZD12P01100 | [1] | O-RING | KOB |
| B5. | ZE72X04000 | [1] | PLUG | KOB |
| B6. | 2444R596D2 | [1] | ELBOW | KOB |
| B9. | ZX23M06070 | [2] | HOSE ASSY. | KOB |
| B10. | ZX23M06080 | [1] | HOSE ASSY. | KOB |
| B11. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBCAP |
| B12. | ZW16X08000 | [4] | WASHER | KOB |
| B13. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| B14. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBCAP |
| B15. | ZW16H12000 | [2] | WASHER | KOB |
| B16. | YN21V00005F3 | [1] | CHECK VALVE | KOBASSY, CHECK |
| . . | YY06H00015F1 | [1] | CONTROL LINES, MAIN | |
| C3. | 2444Z2525 | [3] | HYD CONNECTOR | KOB |
| C4. | 2444Z2891 | [2] | HYD CONNECTOR | KOB |
| C5. | 2444T2505 | [1] | HYD CONNECTOR | KOB |
| C6. | 2444Z3711 | [3] | HYD CONNECTOR | KOB |
| C7. | YN06H01017P1 | [1] | HYD CONNECTOR | KOB |
| C8. | ZH22X04006 | [2] | HYD CONNECTOR | KOB |
| C9. | ZH32X04000 | [4] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB |
| C11. | ZH32X04006 | [7] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| C12. | 2444Z2336 | [1] | HYD CONNECTOR | KOB |
| C13. | ZH52X04000 | [1] | TEE,30° Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB |
| C15. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| C16. | HH55Q06006G1 | [7] | TEE | KOB |
| C17. | 2444Z3546 | [1] | ELEC CONNECTOR | KOB |
| C18. | 2444R1120D065 | [1] | HOSE | KOB |
| C19. | 2444R1120D045 | [1] | HOSE | KOB |
| C20. | 2444R1120D050 | [1] | HOSE | KOB |
| C21. | 2444R596D1 | [2] | ELBOW | KOB |
| C22. | PU13E01010DJ | [2] | TUBE | KOB |
| C23. | ZH42X04006 | [1] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| C24. | 2444Z3943 | [1] | ELEC CONNECTOR | KOB |
| C25. | ZX23M04040 | [2] | HOSE ASSY. | KOB |
| C26. | ZX23M04076 | [2] | HOSE | KOB |
| C27. | 2444Z2894 | [3] | 90 ELBOW | KOB |
| C29. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| C30. | PU13E01010DN | [3] | TUBE | KOB |
| C31. | 2418Z1333D32 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 650mm Length | KOBProtective Plastic |
| C32. | PU13E01010D2 | [1] | TUBE | KOB |
| C33. | YN21V00005F2 | [2] | CHECK VALVE | KOBASSY, CHECK |
| C34. | HH55V04006G1 | [2] | TEE | KOB |
| C35. | ZX23M06076 | [1] | HOSE ASSY. | KOB Superseded by part number: ZX23M06080 |
| C37. | ZX23M04070 | [1] | HOSE ASSY. | KOB |
| C40. | HH55Q04004G1 | [2] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB |
| C41. | 2444R1122D065 | [1] | HOSE | KOB |
