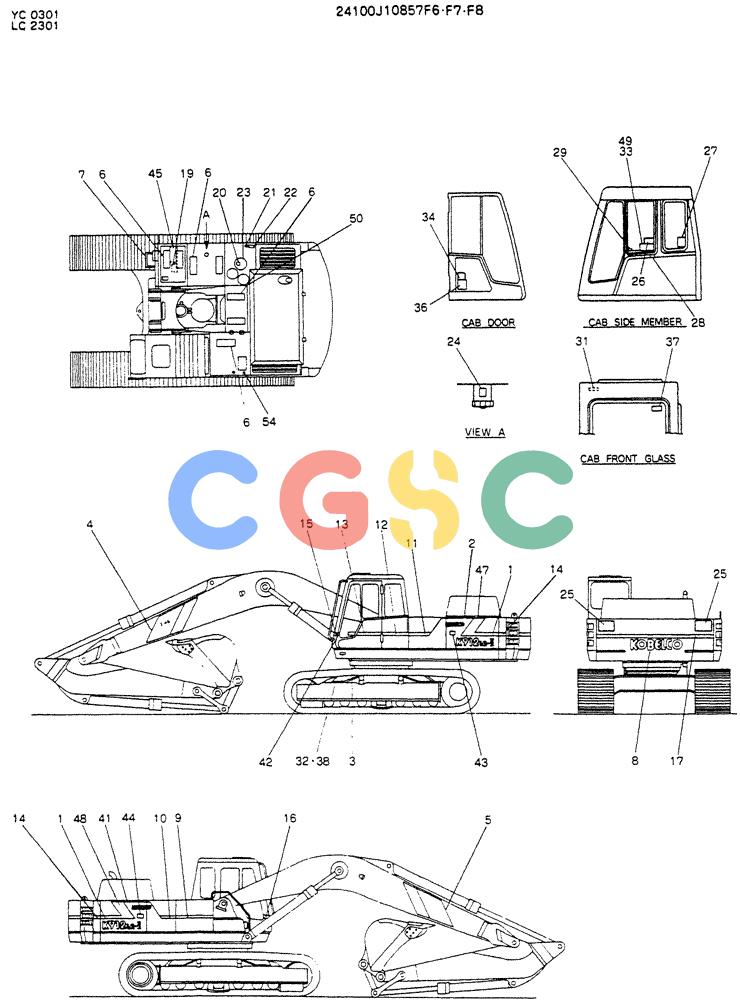

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (10-003[02]) - LABEL, NAME PLATE (FOR EXPORT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
374 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2432J1405 | [2] | NAME PLATE | |
| 2. | 2432N1115 | [1] | TYPE PLATE | KOB |
| 3. | 2432P1039 | [1] | LABEL | LABEL |
| 4. | 2432T4166 | [1] | TYPE PLATE | KOB |
| 5. | 2432T4167 | [1] | TYPE PLATE | KOB |
| 6. | 2427Z329D2 | [7] | SHEET | KOBAnti-Slip (400x150mm) |
| 7. | 2427Z329 | [1] | SHEET | KOBAnti-Slip (300x150mm) |
| 8. | 2432J1354 | [1] | TYPE PLATE | KOB |
| 9. | 2432T2304D23 | [1] | DECAL | KOB |
| 10. | 2432T4168 | [1] | LABEL | KOB |
| 11. | 2432T4169 | [1] | LABEL | KOB |
| 12. | 2432T2304D11 | [1] | LABEL | KOB |
| 13. | 2432T2485 | [1] | LABEL | KOB |
| 14. | 2432T2304D21 | [2] | LABEL | KOB |
| 15. | 2432T2486 | [1] | LABEL | KOB |
| 16. | 2432T2487 | [1] | LABEL | KOB |
| 17. | 2432T2304D24 | [1] | LABEL | KOB |
| 19. | 2432P1054 | [1] | LABEL | KOB |
| 20. | 2432T884 | [1] | LABEL | KOB |
| 21. | 2432T1231 | [1] | DATA PLAQUE | KOBDecal, Warning - |
| 22. | 2432T1202 | [1] | PLATE | KOB |
| 23. | 2446U228S12 | [1] | LABEL | KOB |
| 24. | 2432T2283 | [1] | LABEL | KOBDecal, Fuel location |
| 25. | 2432N1097 | [2] | LABEL | KOBDecal, Danger - Stay out of the swing area. |
| 26. | 2432T2532 | [1] | LABEL | KOB |
| 27. | 2432T2991D1 | [1] | LABEL | KOB |
| 28. | 2432T2342 | [1] | LABEL | LABEL |
| 29. | 2432T1753 | [1] | LABEL | KOBDecal, Kobelco Operation Superseded by part number: YN20T01407P1 |
| 31. | 2432T2341 | [1] | LABEL | KOB |
| 32. | 2432T1530 | [1] | IDENTITY PLATE | KOB |
| 33. | 2432N578 | [1] | PLATE | KOB |
| 34. | 2432T1215 | [1] | DATA PLAQUE | KOBDecal, Caution - To prevent accidents and bodily injury … |
| 36. | 2432T1759 | [1] | PLATE | KOB |
| 37. | 2432T892 | [1] | LABEL | KOB |
| 38. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 41. | 2432N1117 | [1] | TYPE PLATE | KOB |
| 42. | 2432T4142 | [1] | LABEL | KOB |
| 43. | 2432T4140 | [1] | LABEL | LABEL |
| 44. | 2432T4141 | [1] | LABEL | LABEL |
| 45. | 2432N2080 | [1] | LABEL | KOB |
| 47. | 2432T4252 | [1] | LABEL | KOB |
| 48. | 2432T4253 | [1] | LABEL | KOB |
| 49. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 50. | 2418T10311 | [2] | PLATE | KOBØ30mm round Superseded by part number: 2418T27058 |
| 54. | 2432T1142D3 | [2] | LABEL | KOB |
