神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (10-009) - TOOL ASSY (24100N4194F8) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
129 次

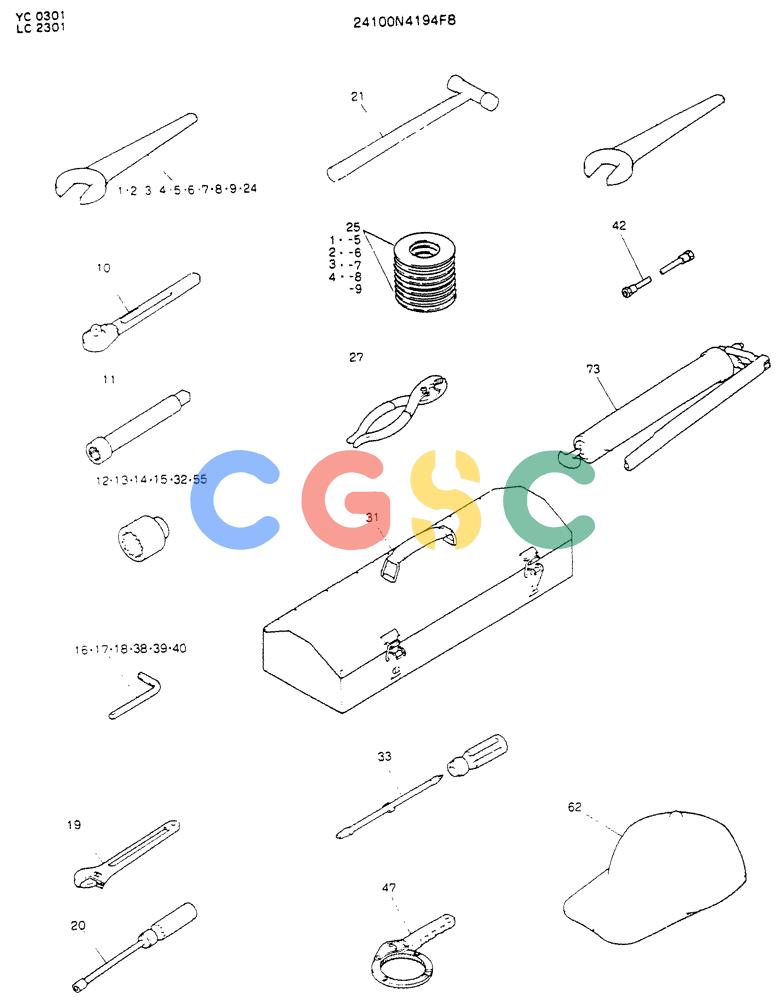

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4194F8 | [1] | TOOL ASSY | |
| 1. | ZT12A41000 | [1] | ADJUSTING WRENCH | KOBSpanner, 41mm |
| 2. | 4021Z1D3 | [1] | SPANNER | SPANNER |
| 3. | ZT12A36000 | [1] | SEAT BACK | KOBSpanner, 36mm |
| 4. | ZT12A32000 | [1] | SEAT BACK | KOB |
| 5. | ZT12A46000 | [1] | POINT | KOB46mm |
| 6. | ZT12A19000 | [1] | GEAR | KOBSpanner, 19mm |
| 7. | ZT12A17000 | [1] | PLUG | KOBSpanner, 17mm |
| 8. | ZT12A14000 | [1] | BOX SPANNER | KOB |
| 9. | ZT12A10000 | [1] | PLUG | KOBSpanner, 10mm |
| 10. | ZT31B13250 | [1] | HANDLE | KOB |
| 11. | ZT31D13150 | [1] | BAR | KOB |
| 12. | ZT31A17000 | [1] | SOCKET | KOB |
| 13. | ZT31A19000 | [1] | SOCKET | KOB |
| 14. | ZT31A24000 | [1] | SOCKET | KOB |
| 15. | ZT31A27000 | [1] | SOCKET | KOB |
| 16. | ZT22A06000 | [1] | KEY, SCREW 06mm | KEY, SCREW 06mm |
| 17. | ZT22A08000 | [1] | KEY | KOBScrew -- 08mm |
| 18. | ZT22A10000 | [1] | KEY | KOB10mm |
| 19. | ZT12D20000 | [1] | WRENCH, ADJUST 24mm Maximum | WRENCH, ADJUST 24mm Maximum |
| 20. | 2421T8 | [1] | TIGHTENER | KOB |
| 21. | ZT71A15000 | [1] | HAMMER | KOB |
| 24. | ZT12A55000 | [1] | SPECIAL WRENCH | KOBSpanner -- 55mm |
| 25. | 24100T422F1 | [1] | SHIM KIT | KOB |
| 25-1. | B16T0442D3 | [1] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 25-2. | B16T0442D4 | [1] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 25-3. | B16T0442D6 | [1] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
| 25-4. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 25-5. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 25-6. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| 25-7. | 2420T2747D2 | [1] | SHIM,102mm ID x 170mm OD x 1.2mm Thk | KOBID 102 x OD 170 x Th 1.2mm |
| 25-8. | 2420T2747D3 | [1] | SHIM,102mm ID x 170mm OD x 1.6mm Thk | KOBID 102 x OD 170 x Th 1.6mm |
| 25-9. | 2420T2747D4 | [1] | SHIM,102mm ID x 170mm OD x 2.3mm Thk | KOBID 102 x OD 170 x Th 2.3mm |
| 27. | ZT51A15000 | [1] | PLIERS | KOB |
| 31. | 2414T4185 | [1] | TOOL BOX | KOB400x155x110mm |
| 32. | ZT31A30000 | [1] | SOCKET | KOB |
| 33. | 2421Z294 | [1] | BLOCK DRIVER | KOBDRIVER Screw, 165mm Long |
| 38. | ZT22A14000 | [1] | KEY | KOB14mm |
| 39. | ZT22A05000 | [1] | KEY | KOBScrew -- 05mm |
| 40. | ZT22A17000 | [1] | KEY, SCREW 17mm | KEY, SCREW 17mm |
| 42. | 2444Z2329 | [1] | HOSE | KOB |
| 47. | 2421R170 | [1] | GENERAL TOOL | KOB Superseded by part number: YW01T01014P1 |
| 53. | ZT12A27000 | [1] | HEATER | KOB27mm |
| 54. | ZT12A50000 | [1] | POINT | KOBSpanner -- 50mm Long (1-31/32 in) |
| 55. | ZT31A22000 | [1] | SOCKET | KOB |
| 62. | 2421Z298 | [1] | CAP | KOB |
| 72. | 2421R154 | [1] | GREASE GUN | KOB Superseded by part number: EAPN17125A |
