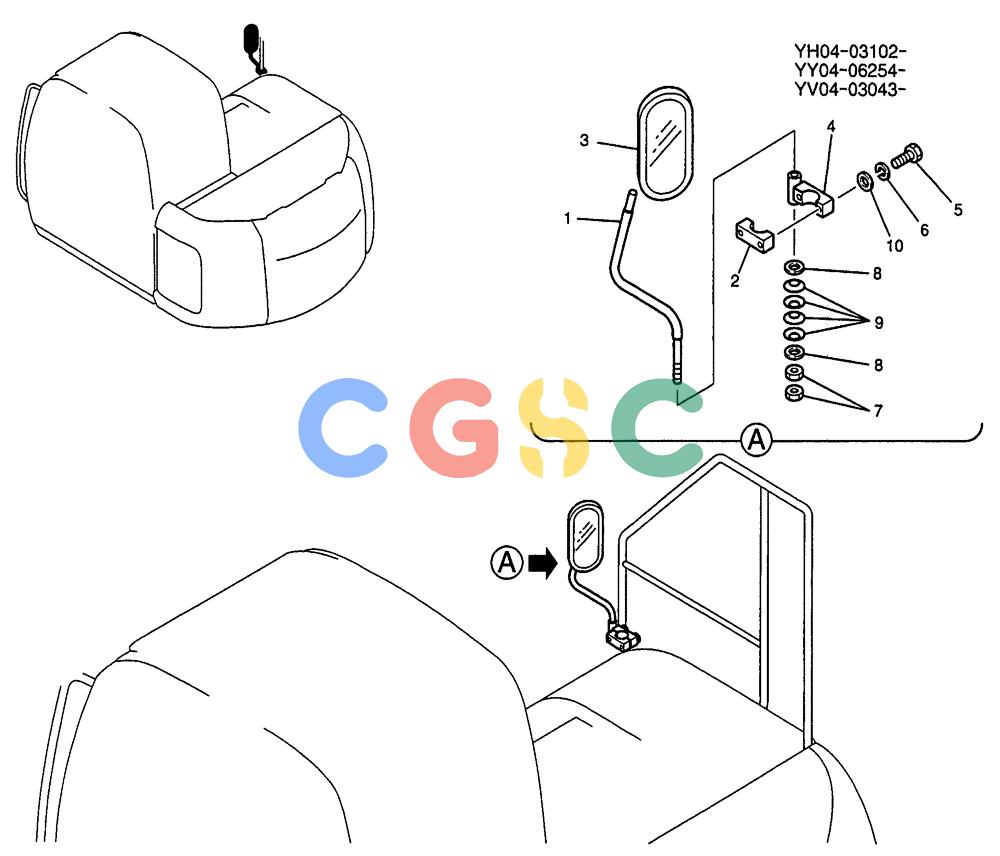

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-035) - MIRROR INSTAL P/N YT52C00003F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY52C00003F1 | [1] | MIRROR | KOBINSTAL |
| 1. | YY52C01007P1 | [1] | STAY | KOBSTAY |
| 2. | YY52C01003P1 | [1] | CLAMP | KOB |
| 3. | 2456Z253 | [1] | MIRROR | KOBBACK |
| 4. | YY52C01006P1 | [1] | SUPPORT | KOB |
| 5. | ZS18C08045 | [2] | SCREW,Hex, M8 x 45mm | KOBCAP |
| 6. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 7. | ZN18C12010 | [2] | NUT | KOB |
| 8. | ZW16X12000 | [2] | WASHER | KOB |
| 9. | R16T0137D1 | [4] | WASHER | KOB |
| 10. | ZW16X08000 | [2] | WASHER | KOB |
