神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (11-002) - VALVE ASSY, MAIN RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
111 次

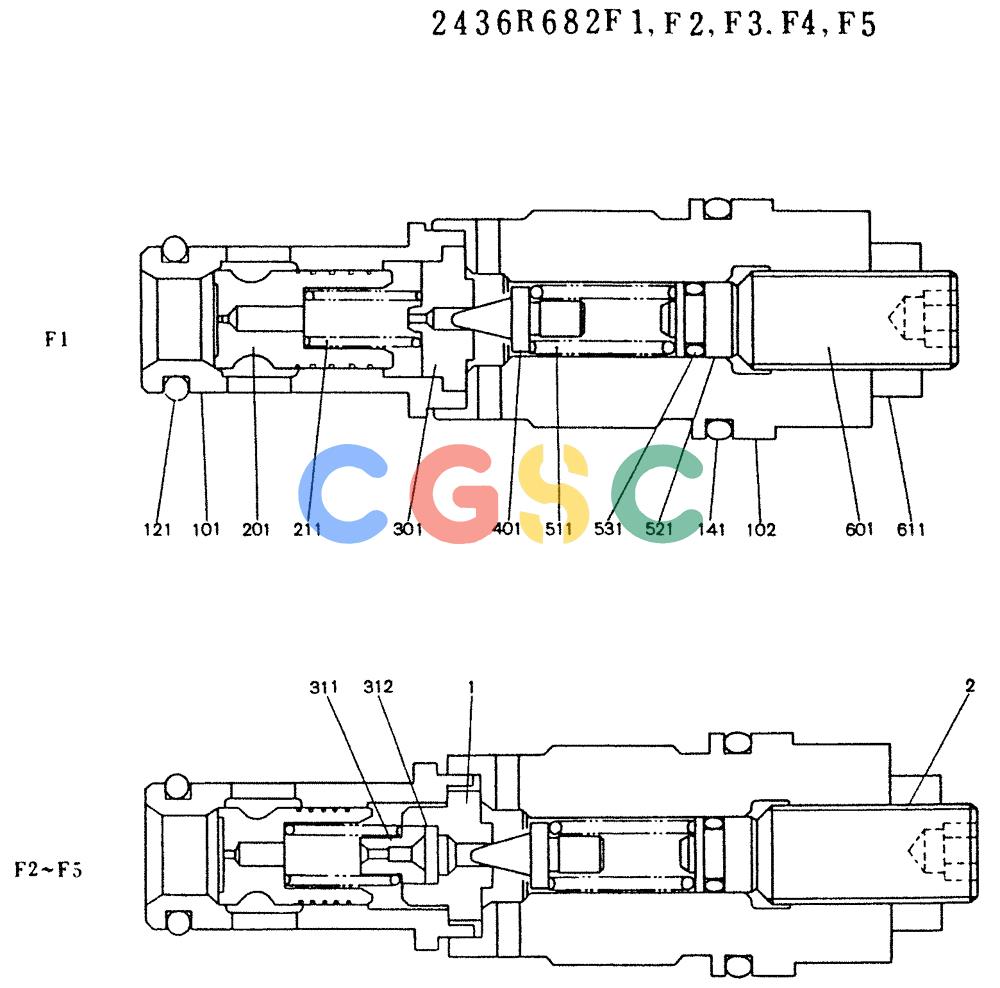

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R682F1 | [1] | VALVE ASSY, RELIEF MAIN RELIEF | VALVE ASSY, RELIEF MAIN RELIEF |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, FOR F2-F5 ONLY |
| . . | 2436R682F2 | [1] | VALVE PRESSURE RELIE | KOBMAIN RELIEF Superseded by part number: 2436R839F3 |
| 2. | 2436R682S2 | [1] | SET OF SCREWS | KOBFOR F2-F5 ONLY Superseded by part number: 2436R682S601 |
| . . | 2436R682F3 | [1] | VALVE PRESSURE RELIE | KOBMAIN RELIEF Superseded by part number: 2436R839F3 |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| . . | 2436R684F4 | [1] | VALVE ASSY, RELIEF MAIN RELIEF | VALVE ASSY, RELIEF MAIN RELIEF |
| . . | 2436R684F5 | [1] | VALVE ASSY, RELIEF MAIN RELIEF | VALVE ASSY, RELIEF MAIN RELIEF |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 121. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 141. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 211. | 2436R682S211 | [1] | SPRING | KOB |
| 301. | 2436R682S301 | [1] | SEAT, FOR F1 ONLY | |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING, FOR F2-F5 ONLY |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER, FOR F2-F5 ONLY |
| 401. | 2436R682S401 | [1] | POPPET | KOB |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 521. | 2436R682S521 | [1] | SEAT | KOB |
| 601. | 2436R682S601 | [1] | SET OF SCREWS | KOBFOR F1 ONLY |
| 611. | 2436R683S671 | [1] | NUT | KOB Superseded by part number: ZN18C12007 |
| 531. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
