凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (07.502[06]) - HYDRAULIC FITTINGS, PLUG Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
254 次

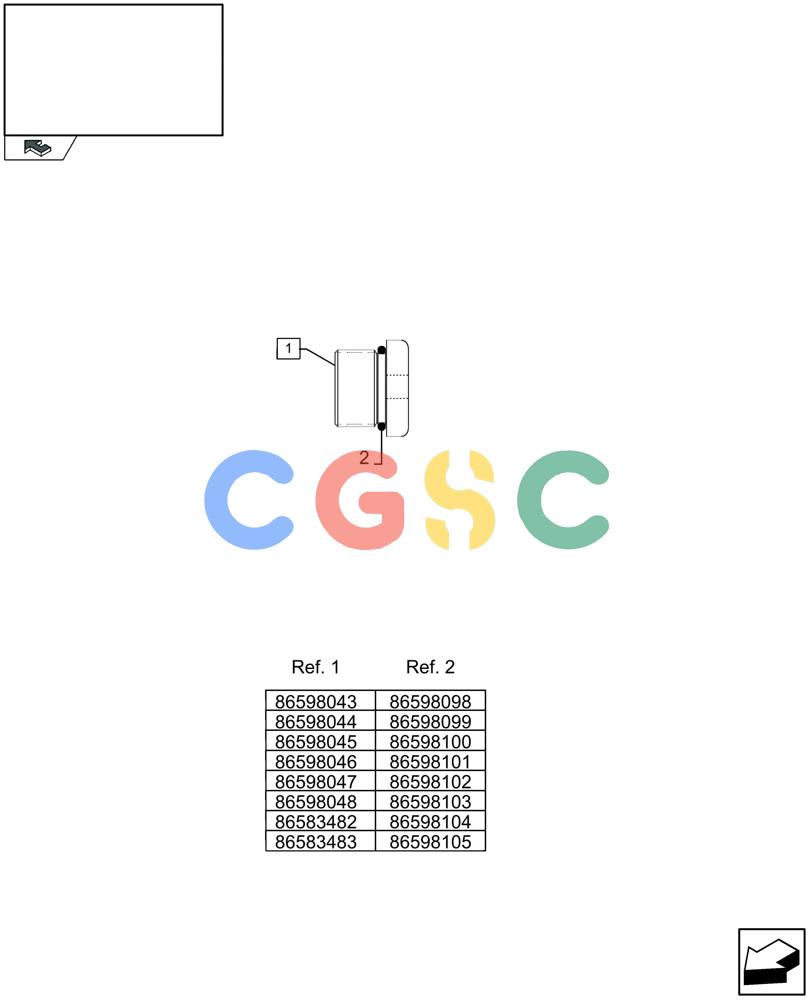

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86598043
|
[1] |
PLUG,M12 x 1.5 ORB
|
ZED
|
| 1. |
86598044
|
[1] |
PLUG,Hex, M14 x 1.5 ORB
|
ZED
|
| 1. |
86598045
|
[1] |
PLUG,M16 x 1.5
|
GI
|
| 1. |
86598046
|
[1] |
PLUG,M18 x 1.5 ORB
|
FAR
|
| 1. |
86598047
|
[1] |
PLUG,Hex Soc, M22 x 1.5, ORB
|
ZED
Superseded by part number: 221579A1
|
| 1. |
86598048
|
[1] |
PLUG,Hex Soc, M27 x 2, ORB
|
ZED
Superseded by part number: 221580A1
|
| 1. |
86583482
|
[1] |
HEX SOCKET PLUG,M33 x 2
|
ZED
|
| 1. |
86583483
|
[1] |
PLUG
|
ZED
|
| 2. |
86598098
|
[1] |
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
|
ZED
|
| 2. |
86598099
|
[1] |
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
|
NH
Superseded by part number: 86639042
|
| 2. |
86598100
|
[1] |
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
|
ZED
|
| 2. |
86598101
|
[1] |
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
|
ZED
|
| 2. |
86598102
|
[1] |
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
|
ZED
|
| 2. |
86598103
|
[1] |
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
|
ZED
|
| 2. |
86598104
|
[1] |
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
|
ZED
|
| 2. |
86598105
|
[1] |
O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro
|
ZED
|
