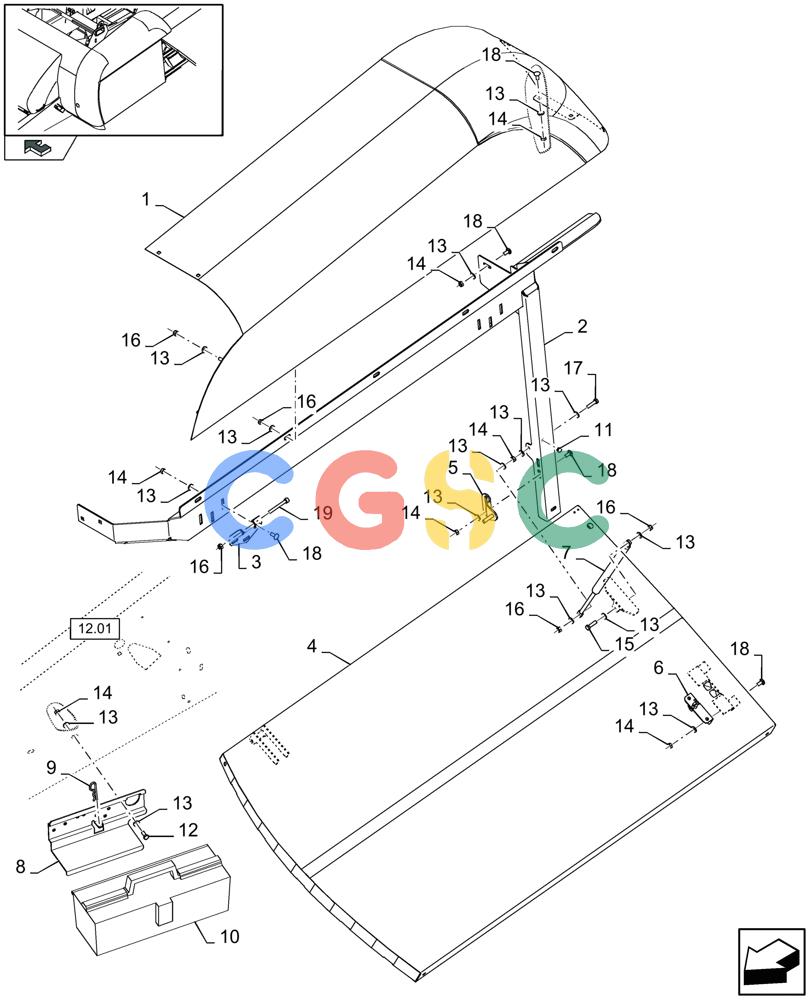

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (08.05[01]) - PROTECTIONS, LH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87727607
|
[1] |
SHIELD
|
ZED
|
| 2. |
84136469
|
[1] |
PROFILE
|
ZED
|
| 3. |
87471120
|
[2] |
HINGE
|
ZED
|
| 4. |
87488672
|
[1] |
DOOR
|
ZED
|
| 5. |
84100154
|
[1] |
LOCKING TAB
|
ZED
|
| 6. |
84015292
|
[1] |
LATCH
|
ZED
|
| 7. |
87393911
|
[1] |
GAS STRUT
|
ZED
|
| 8. |
84053844
|
[1] |
SUPPORT
|
ZED
|
| 9. |
437424
|
[1] |
COTTER PIN
|
GI
|
| 10. |
84038528
|
[1] |
TOOL BOX
|
ZED
Superseded by part number: 87386543
|
| 11. |
336455
|
[1] |
PLUG
|
ZED
|
| 12. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
322358
|
[32] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 14. |
9706690
|
[19] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 15. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 16. |
86629542
|
[10] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 17. |
300381
|
[1] |
BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8
|
NH
Superseded by part number: 412479, 412479, 614-8035
|
| 18. |
86507486
|
[16] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 19. |
9839580
|
[2] |
HEX SOC SCREW,M8 x 70mm, Cl 8.8
|
ZED
Superseded by part number: 89839580
|
