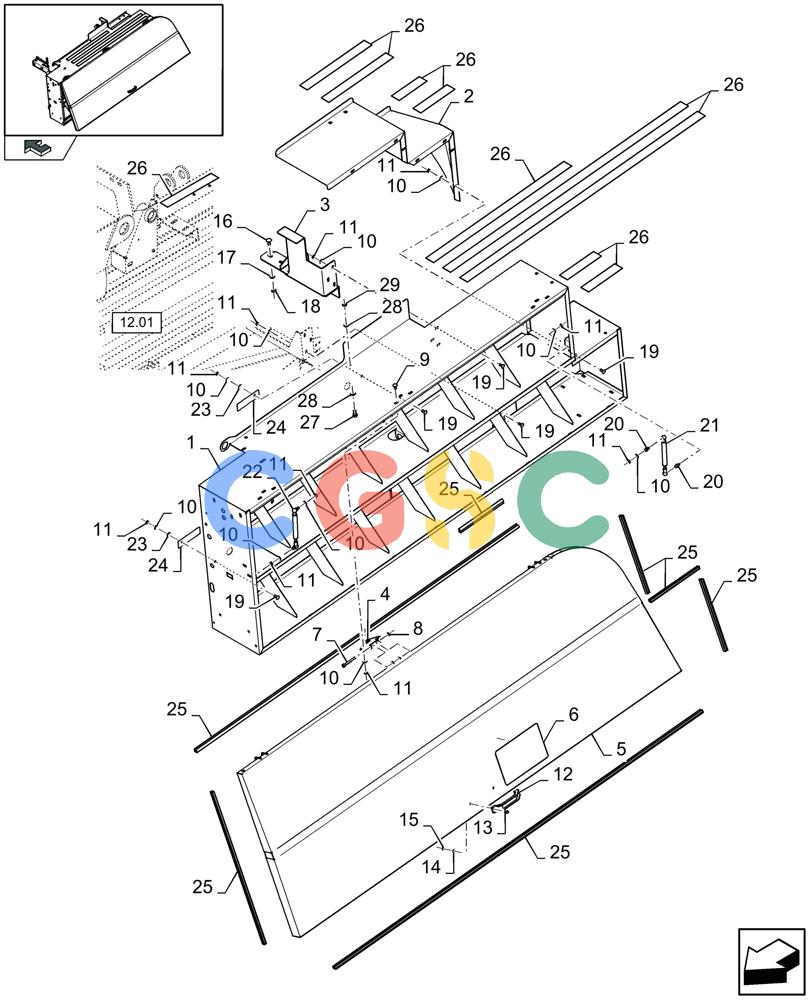

| 1. |
87727530
|
[1] |
TWINE BOX
|
ZED
|
| 2. |
84444411
|
[1] |
PLATE
|
ZED
|
| 3. |
84444404
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C727
|
| 3. |
84167568
|
[1] |
SUPPORT
|
ZED
, Start Serial: D728
|
| 3. |
84444406
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C727
|
| 3. |
84167606
|
[1] |
SUPPORT
|
ZED
, Start Serial: D728
|
| 4. |
87471120
|
[3] |
HINGE
|
ZED
|
| 5. |
87732475
|
[1] |
DOOR
|
ZED
|
| 6. |
84819404
|
[1] |
DECAL
|
ZED
|
| 6. |
84819406
|
[1] |
DECAL
|
ZED
|
| 7. |
9839580
|
[3] |
HEX SOC SCREW,M8 x 70mm, Cl 8.8
|
ZED
Superseded by part number: 89839580
|
| 8. |
86629542
|
[3] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 9. |
120037
|
[9] |
CARRIAGE BOLT,Short Nk, M8 x 20mm, Cl 8.8, Full Thd
|
ZED
Superseded by part number: 86507486
|
| 10. |
322358
|
[28] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
9706690
|
[28] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 12. |
9837395
|
[1] |
HANDLE
|
ZED
|
| 13. |
86508568
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 14. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 15. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 16. |
338949
|
[2] |
CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
|
| 17. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 18. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 19. |
86507486
|
[12] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 20. |
9837364
|
[2] |
BALL JOINT
|
ZED
Superseded by part number: 9837417
|
| 21. |
9837397
|
[1] |
GAS STRUT
|
ZED
|
| 22. |
84078857
|
[1] |
GAS STRUT
|
ZED
|
| 23. |
86511323
|
[2] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 24. |
84819384
|
[2] |
COVER
|
ZED
|
| 24. |
87332566
|
[2] |
FIXING PLATE
|
ZED
, Serial Range: -C927
|
| 24. |
84421934
|
[2] |
LEAF SPRING
|
ZED
, Start Serial: D928
|
| 25. |
84607251
|
[1] |
RUBBER WEATHERSTRIP
|
ZED
Superseded by part number: 84818178
|
| 26. |
401502
|
[1] |
ANTI-SKID STRIP
|
ZED
|
| 27. |
43140
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
, Start Serial: D728
|
| 29. |
84807411
|
[2] |
THIN NUT,Thin, M10 x 1.5, Cl 04
|
ZED
, Start Serial: D728 Superseded by part number: 57039
|
