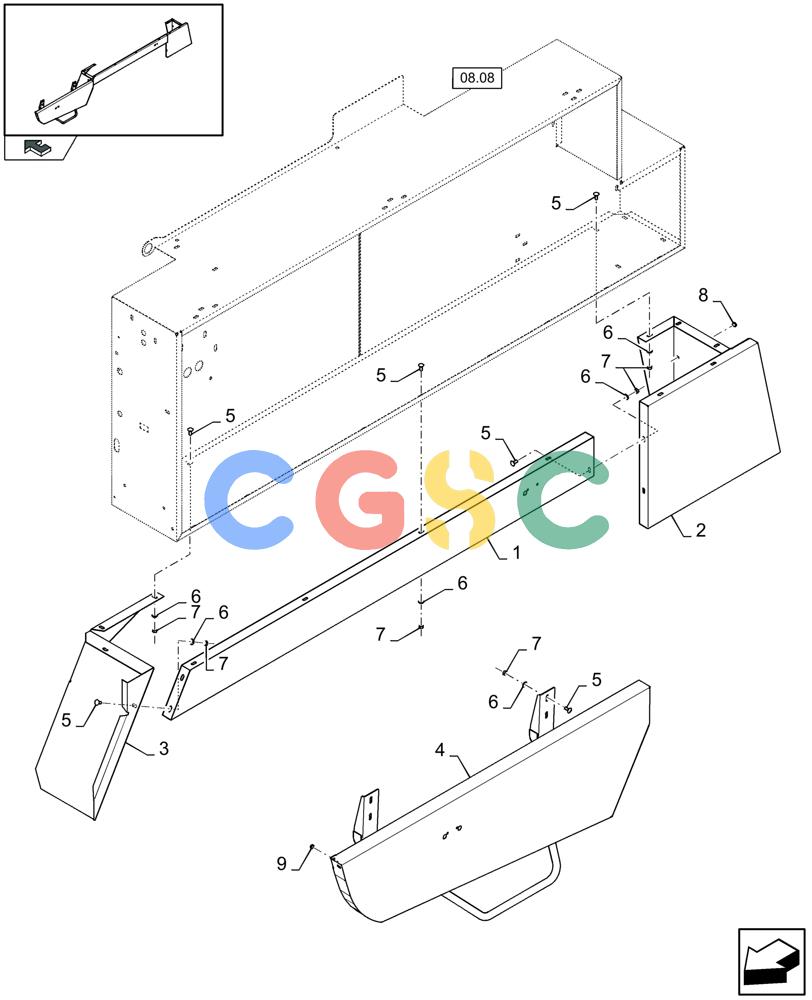

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (08.11[01]) - LOWER SHIELDS, TANDEM AXLE, LH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84819342
|
[1] |
GUARD
|
ZED
, Serial Range: -C835
|
| 1. |
84819361
|
[1] |
GUARD
|
ZED
, Start Serial: D836
|
| 2. |
87489212
|
[1] |
COVER PLATE
|
ZED
|
| 3. |
84819351
|
[1] |
GUARD
|
ZED
|
| 4. |
87485851
|
[1] |
DOOR
|
ZED
|
| 5. |
86507486
|
[19] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 6. |
322358
|
[19] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 7. |
9706690
|
[19] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 8. |
331233
|
[4] |
PLUG
|
ZED
|
| 9. |
336455
|
[3] |
PLUG
|
ZED
|
