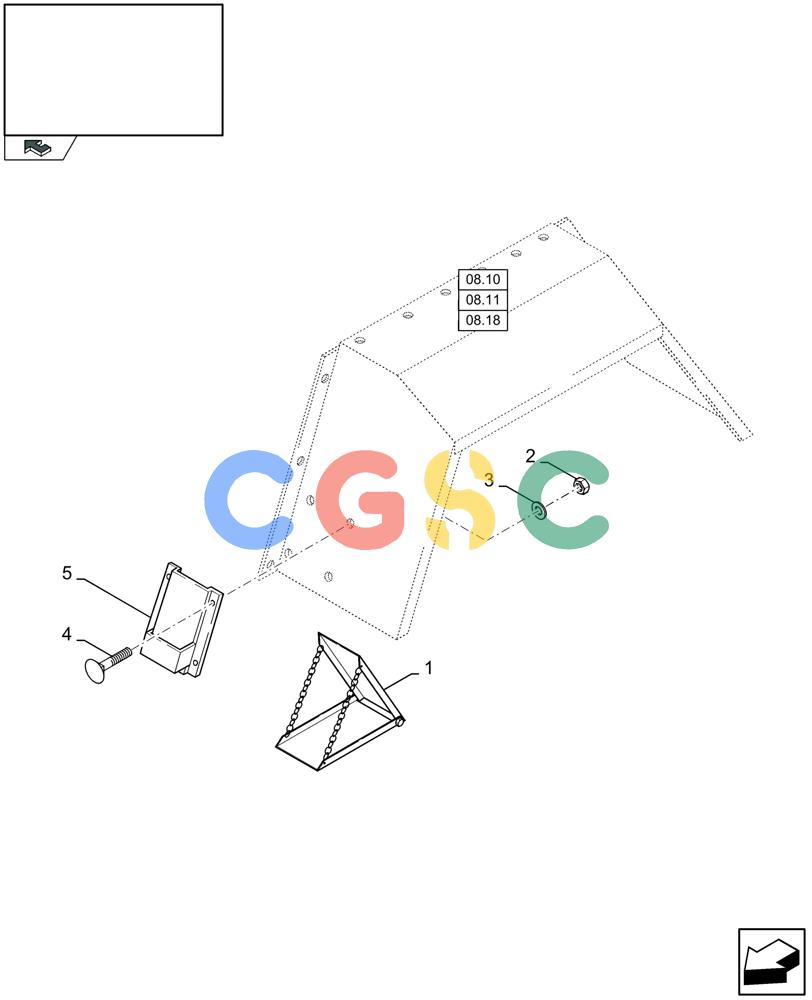

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (08.16[01]) - MUDGUARDS AND WHEEL CHOCK Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80411582
|
[2] |
WHEEL CHOCK
|
ZED
Superseded by part number: 411582
|
| 2. |
43362
|
[8] |
NUT,M8 x 1.25, Cl 10
|
BHB
|
| 3. |
80322358
|
[8] |
LOCK WASHER
|
ZED
8.2 MM Superseded by part number: 322358
|
| 4. |
80120037
|
[8] |
BOLT
|
ZED
M8 x 20 Superseded by part number: 86507486
|
| 5. |
80411583
|
[2] |
HOLDER
|
ZED
Superseded by part number: 85001998
|
