纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-057) - CONDITIONER ASSY, AIR P/N YV20M00003F3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
291 次

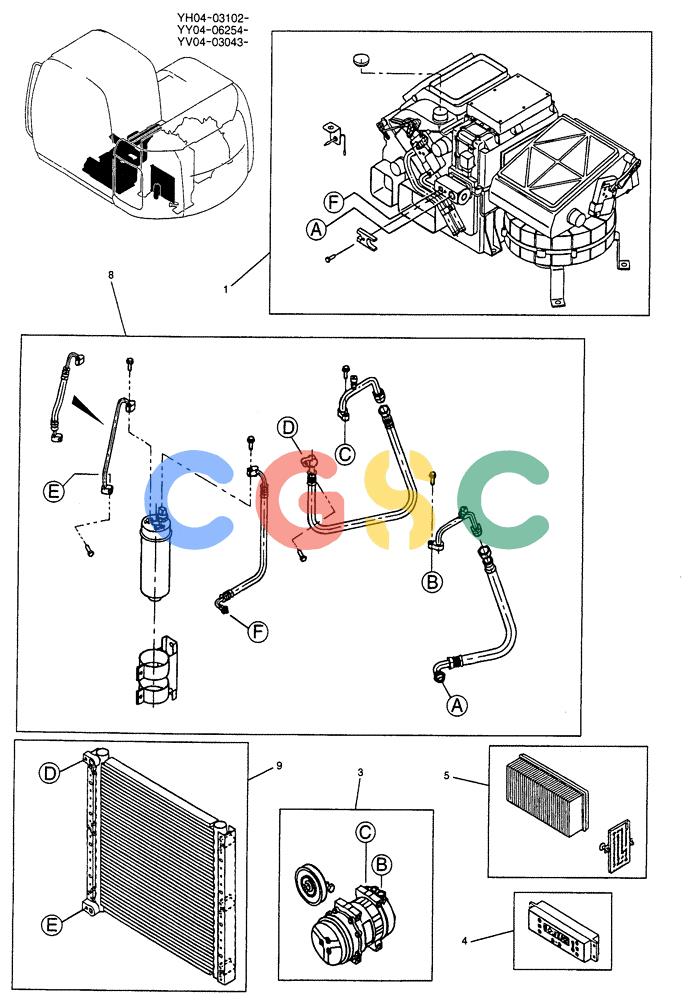

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV20M00003F3 | [1] | AIR CONDITIONER | KOBASSY |
| 1. | YT20M00009F1 | [1] | AIR CONDITIONER | KOBASSY, SEE FIG. 01-058 |
| 3. | YX91V00002F2 | [1] | COMPRESSOR | KOBASSY, AIR, SEE FIG. 01-061 |
| 4. | YT20M01104F1 | [1] | PANEL | KOBASSY, SEE FIG. 01-062 |
| 5. | YT95V00001F1 | [1] | FILTER ASSY | KOBAIR, SEE FIG. 01-062 |
| 8. | YV96V00001F3 | [1] | RECEIVER-DRIER | KOBASSY, AIR, SEE FIG. 01-062 YV04-03043, Serial Range: -YV04-03301 Superseded by part number: YV96V00001F6 |
| 8. | YV96V00001F6 | [1] | RECEIVER-DRIER | KOBDRIER ASSY, AIR, SEE FIG. 01-062 YV04-03302 to |
| 9. | YT20M01060P2 | [1] | CONDENSER | KOB |
