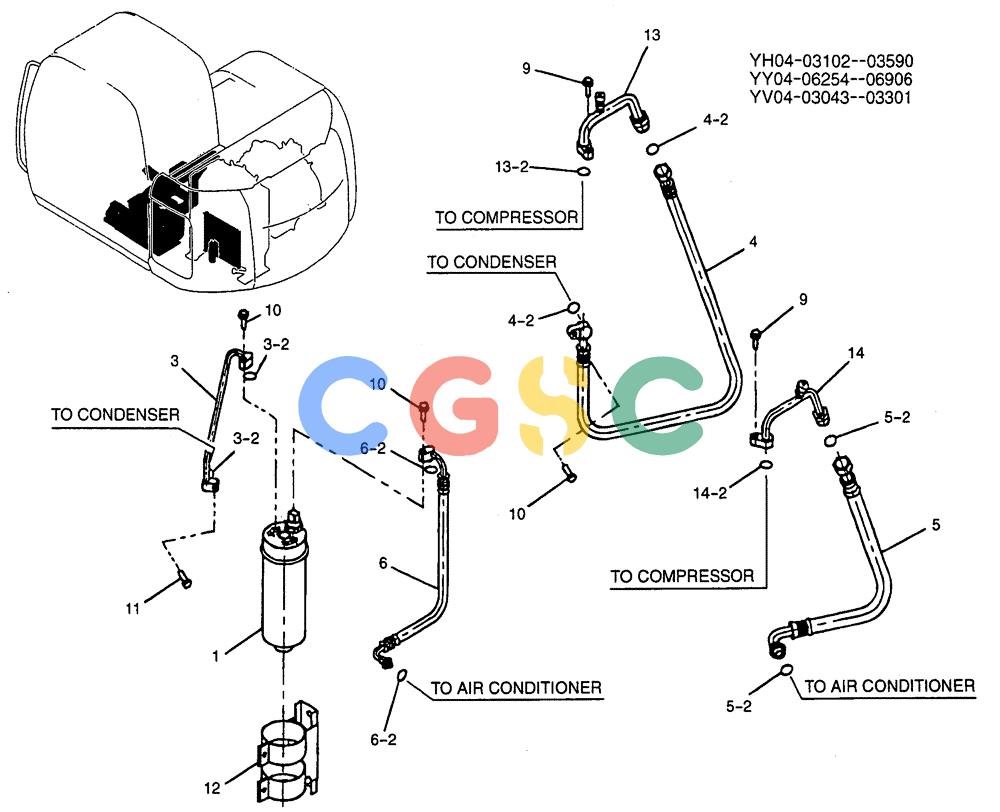

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-059) - DRIER ASSY, AIR P/N YV96V00001F3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
995 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV96V00001F3 | [1] | RECEIVER-DRIER | KOBASSY, AIR Superseded by part number: YV96V00001F6 |
| 1. | YT54S00002P1 | [1] | RECEIVER-DRIER | KOB |
| 3. | YX20M01028F1 | [1] | TUBE | KOBASSY Superseded by part number: YV20M01038F2 |
| 3-2. | 2445Z1604D6 | [2] | O-RING | KOB |
| 4. | YT20M01066F1 | [1] | HOSE ASSY. | KOB |
| 4-2. | 2445Z1604D4 | [2] | O-RING | KOB |
| 5. | YV20M01024F1 | [1] | HOSE ASSY. | KOB |
| 5-2. | 2445Z1604D5 | [2] | O-RING | KOB |
| 6. | YV20M01030F1 | [1] | HOSE ASSY. | KOB |
| 9. | YT96V00001S009 | [2] | SCREW | KOB |
| 10. | YT96V00001S010 | [3] | CAP | KOB |
| 11. | YT20M00009S005 | [1] | BOLT | KOBCAP |
| 12. | YN20M01355P1 | [1] | BRACKET | KOB |
| 13. | YV20M01034F1 | [1] | TUBE | KOBASSY |
| 14. | YV20M01035F1 | [1] | TUBE | KOBASSY |
