纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (01-061) - COMPRESSOR ASSY, AIR P/N YX91V00002F2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
364 次

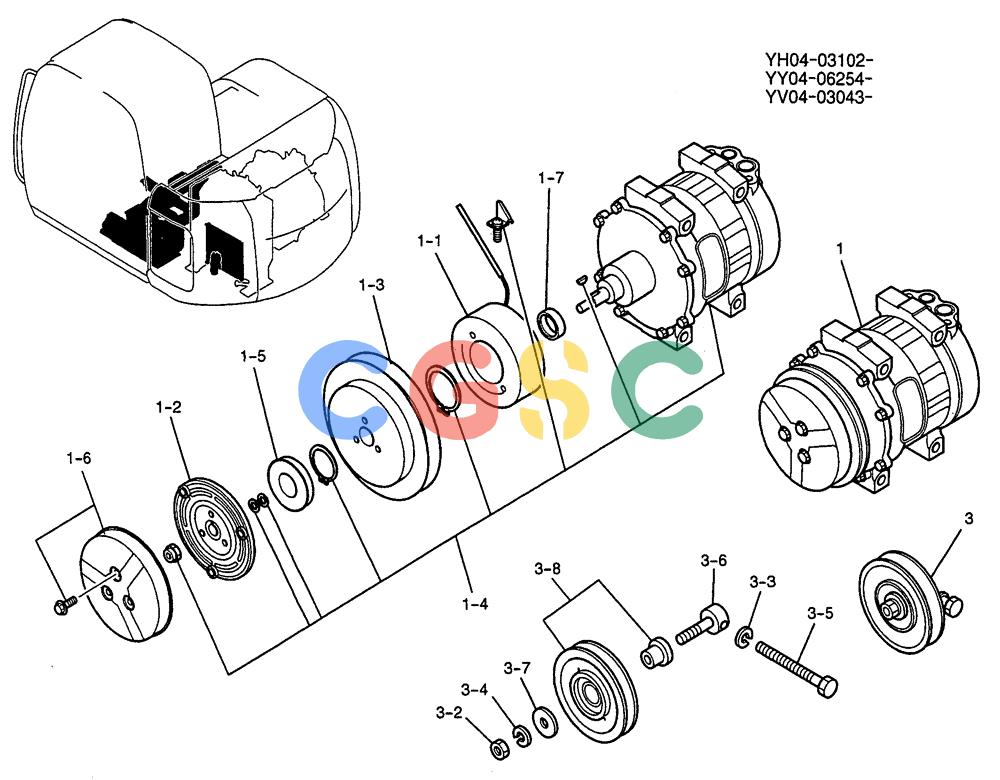

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX91V00002F2 | [1] | COMPRESSOR | KOBASSY, AIR |
| 1. | YX91V00001F1 | [1] | COMPRESSOR,W/ Pulley | KOBASSY, AIR |
| . . | YX91V00001F1R | [1] | REMAN-COMPRESSOR,W/ Pulley | KOBE115SR ASN YV04-03043 |
| . . | YX91V00001F1C | [1] | CORE-COMPRESSOR | KOBReturn Number |
| 1-1. | LC91V00001S002 | [1] | PLATE | KOB |
| 1-2. | YN91V01001S002 | [1] | PLATE | KOB |
| 1-3. | YN91V01001S003 | [1] | ROTOR | KOB |
| 1-4. | LC91V00001S004 | [1] | ACCESSORIES | KOB |
| 1-5. | YN91V01001S005 | [1] | COVER | KOB |
| 1-6. | YN91V01001S006 | [1] | COVER | KOB |
| 1-7. | YN91V01001S007 | [1] | RING | KOBASSY |
| 3. | YX20M01029F2 | [1] | PULLEY ASSY. | KOB Superseded by part number: YX20M01029F4 |
| 3-2. | 24100U1176S25 | [1] | NUT | KOB |
| 3-3. | 24100U1176S27 | [1] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| 3-4. | 24100U1176S26 | [1] | LOCK WASHER | KOB Superseded by part number: ZW26X10000 |
| 3-5. | 24100U1176S18 | [1] | BOLT | KOB |
| 3-6. | YX20M01029S006 | [1] | SHAFT | KOB |
| 3-7. | 24100U1176S19 | [1] | STOP | KOB |
| 3-8. | LC20M01060P1 | [1] | PULLEY | KOB Superseded by part number: YX20M01029F4 |
