神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (05-002) - POWER PLANT (FOR SILENT TYPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
716 次

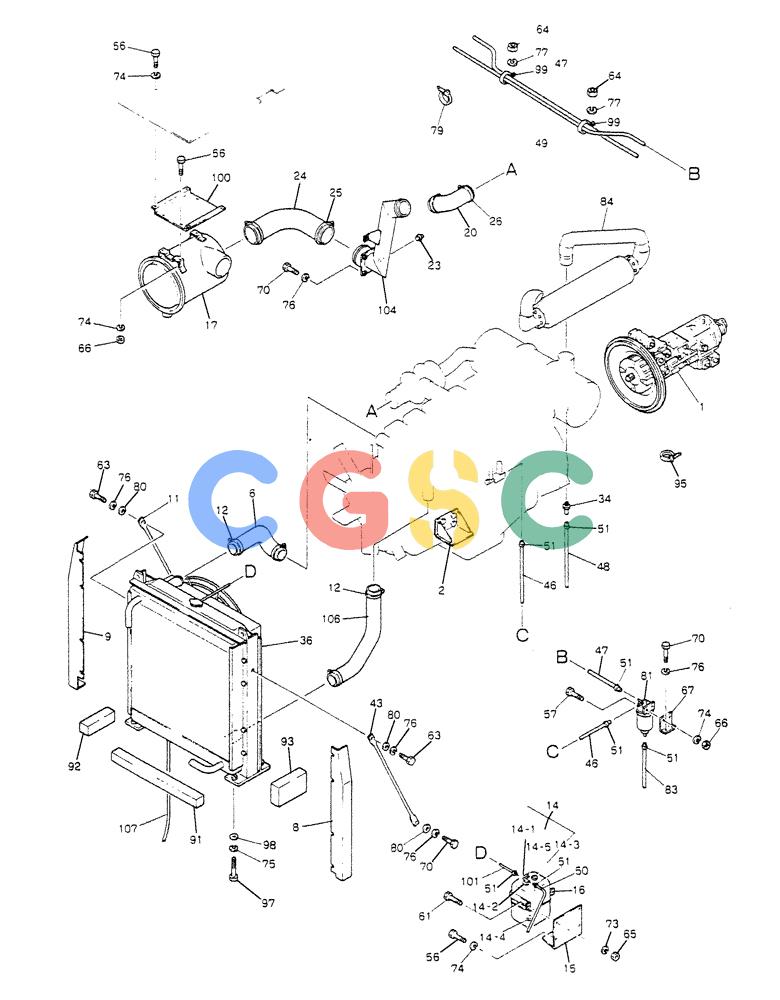

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11075F1 | [1] | POWER-PLANT | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPUMP ASSY,CONNECT |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONENGINE MOUNT |
| 6. | 2420R572 | [1] | FLEXIBLE HOSE | KOB |
| 8. | 2418P19834 | [1] | PLATE | |
| 9. | 2418P19835 | [1] | PLATE | |
| 11. | 2416T21380 | [1] | STAY | |
| 12. | ZC15X08000 | [8] | CLIP | KOB |
| 14. | 2427U407F1 | [1] | CONTAINER | KOB |
| 14-1. | 2427U407S1 | [1] | CONTAINER | KOB |
| 14-2. | 2427U407S2 | [1] | CAP | KOB |
| 14-3. | 2427U407S3 | [1] | CAP | KOB |
| 14-4. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| 14-5. | 2427U203S3 | [1] | LABEL | KOB |
| 15. | 2416P14230 | [1] | BRACKET | KOB |
| 16. | 2416T17287 | [1] | SUPPORT | |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONAIR CLEANER |
| 20. | 2444Z1600D3 | [1] | ELBOW UNION | KOBUnion Elbow Superseded by part number: 2444R620 |
| 23. | 2450R163F1 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 24. | 2444R1037 | [1] | FLEXIBLE HOSE | KOB |
| 25. | ZC15X13000 | [2] | CLIP | KOB |
| 26. | ZC15X10500 | [2] | CLIP | KOB |
| 34. | 2444Z1293D10 | [1] | LUBE NIPPLE | KOBNipple, Hose -- 3/8" PTx46mm Long |
| 36. | NSS | [1] | NOT SOLD SEPARAT | CONRADIATOR |
| 43. | 2416T21379 | [1] | STAY | |
| 46. | 4018Z1D5 | [1] | HOSE | HOSE |
| 47. | 4018Z1D36 | [1] | PLASTIC-RUBBER TUBE | KOB |
| 48. | 2420Z795D2 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 77254532, HX11Y07100DX |
| 49. | 4018Z1D37 | [1] | TUBE | KOB |
| 50. | 2420Z912D3 | [1] | FLEXIBLE HOSE | KOB |
| 51. | ZC15X01000 | [11] | CLIP | KOB |
| 56. | ZS18C10025 | [9] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 57. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 61. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 63. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 64. | ZN13C10008 | [7] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 65. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 66. | ZN18C10008 | [5] | NUT | KOBM10x1.50mm |
| 67. | 2418T19268 | [1] | PLATE | |
| 70. | ZS13C12025 | [10] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 73. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 74. | ZW26X10000 | [11] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 75. | ZW22X20000 | [4] | LOCK WASHER | KOBID 20 x OD 33.8 x Th 5.1mm |
| 76. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 77. | ZW22X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 79. | 2432Z290 | [6] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 80. | ZW13H12000 | [4] | WASHER | KOB |
| 81. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| 83. | 4018Z1D1 | [1] | TUBE | KOB |
| 84. | NSS | [1] | NOT SOLD SEPARAT | CONMUFFLER ASSY |
| 91. | 2479Z1501D1 | [1] | INSULATOR | KOB |
| 92. | 2479Z1501D2 | [1] | INSULATOR | KOB |
| 93. | 2479Z1502D1 | [1] | INSULATOR | KOB |
| 95. | 2432Z290D3 | [3] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 97. | ZS13C20055 | [4] | SCREW | KOBScrew -- M20x2.50x55mm |
| 98. | ZW13H20000 | [4] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 99. | ZC47X16011 | [4] | CLIP | KOB |
| 100. | 2416P13230 | [1] | BRACKET | |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
| 104. | 2420J161 | [1] | PIPE | PIPE |
| 106. | 2420R573 | [1] | FLEXIBLE HOSE | KOB |
| 107. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
