神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (05-004) - MOUNT, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
872 次

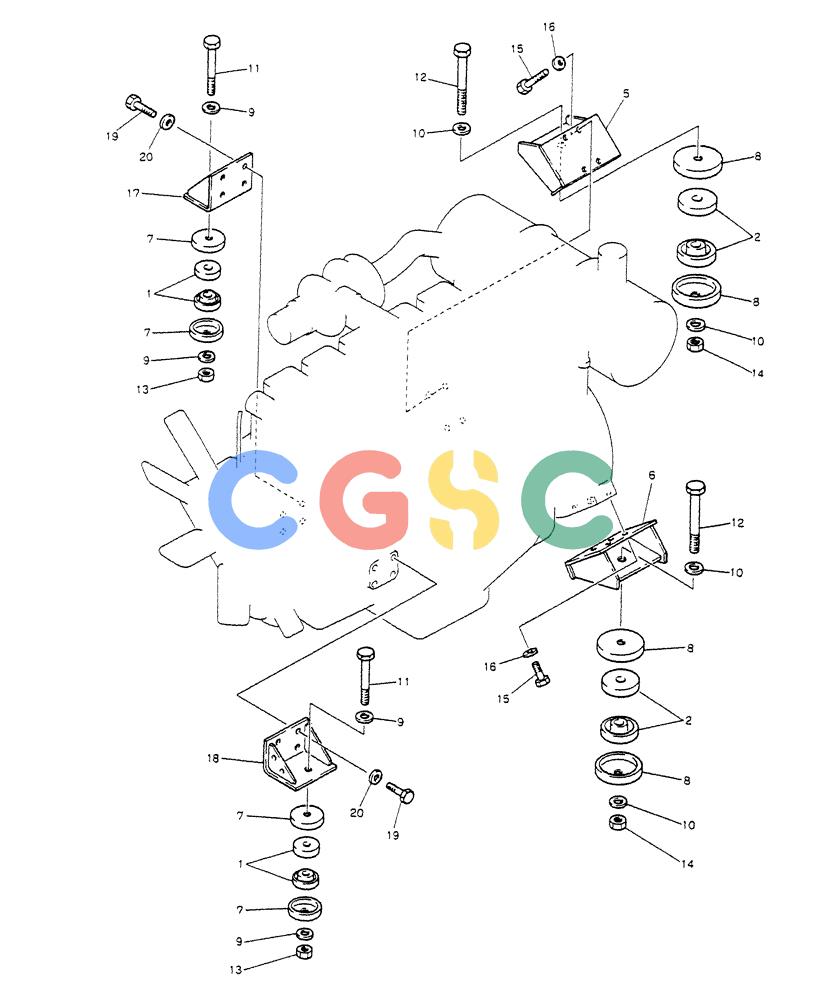

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10301F1 | [1] | MOUNT,ENGINE | |
| 1. | 2416R145D2 | [4] | RUBBER SLEEVE | KOB |
| 2. | 2416R155 | [4] | RUBBER MOUNTING | KOB |
| 5. | 2416P6072 | [1] | BRACKET, MTG | BRACKET, MTG |
| 6. | 2416P6256 | [1] | BRACKET, MTG | BRACKET, MTG |
| 7. | 2414T1512 | [4] | COVER | KOB |
| 8. | 2414T4253 | [4] | COVER | KOB |
| 9. | R16T0152D13 | [4] | WASHER | KOBFlat -- ID 19 x OD 40 x Th 4.5mm |
| 10. | ZW13H20000 | [4] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 11. | 2420Z840 | [2] | SCREW | KOB |
| 12. | 2420Z839 | [2] | SCREW | KOB Superseded by part number: ZS18C20130 |
| 13. | ZN13C18015 | [2] | NUT | KOBM18x2.5mm |
| 14. | ZN13C20016 | [2] | NUT | KOBM20x2.50mm |
| 15. | ZS13C12030 | [8] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 16. | ZW13H12000 | [8] | WASHER | KOB |
| 17. | 2416P6096 | [1] | U-BRACKET | KOB |
| 18. | 2416P13920 | [1] | U-BRACKET | KOB |
| 19. | ZS13C14035 | [8] | CAPSCREW | KOBSCREW M14x2.0x35mm Superseded by part number: ZS18C14035 |
| 20. | R16T0152D15 | [8] | WASHER | KOBFlat -- ID 15 x OD 28 x Th 3.2mm |
