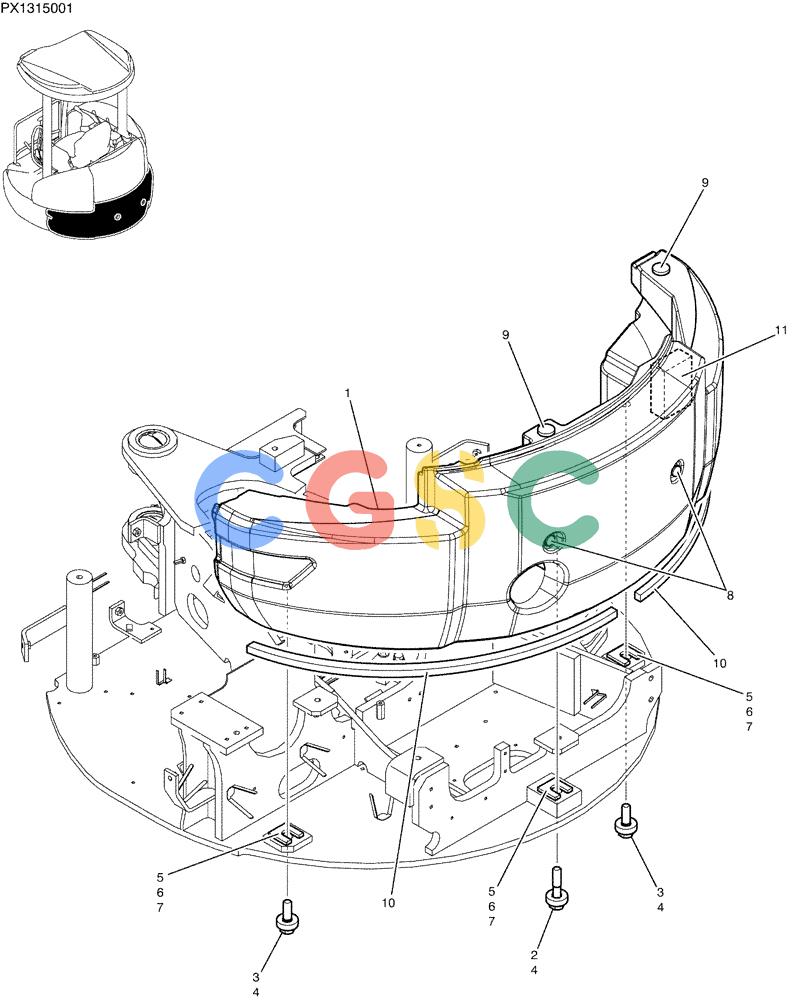

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-004) - COUNTERWEIGHT INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX60C00015F1 | [1] | COUNTERWEIGHT INSTAL | |
| 1. | PX60C00014P1 | [1] | COUNTERWEIGHT | KOB |
| 2. | HS18C20090G1 | [1] | BOLT | KOBCAP |
| 3. | HS18C20065G1 | [2] | BOLT | KOBCAP |
| 4. | HY26Y21050G4 | [3] | WASHER | KOB |
| 5. | PM60C01022D1 | [3] | SHIM | KOB(1.2) |
| 6. | PM60C01022D2 | [3] | SHIM,2.0mm Thk | KOB |
| 7. | PM60C01022D3 | [3] | SHIM | KOB(3.2) |
| 8. | YT60C01007P1 | [2] | PLUG | KOB |
| 9. | LE60C01028P1 | [2] | PLATE | KOB |
| 10. | PW60C01019P1 | [2] | RUBBER | KOB |
| 11. | PW60C01020P1 | [1] | FOAM INSULATION | KOB |
