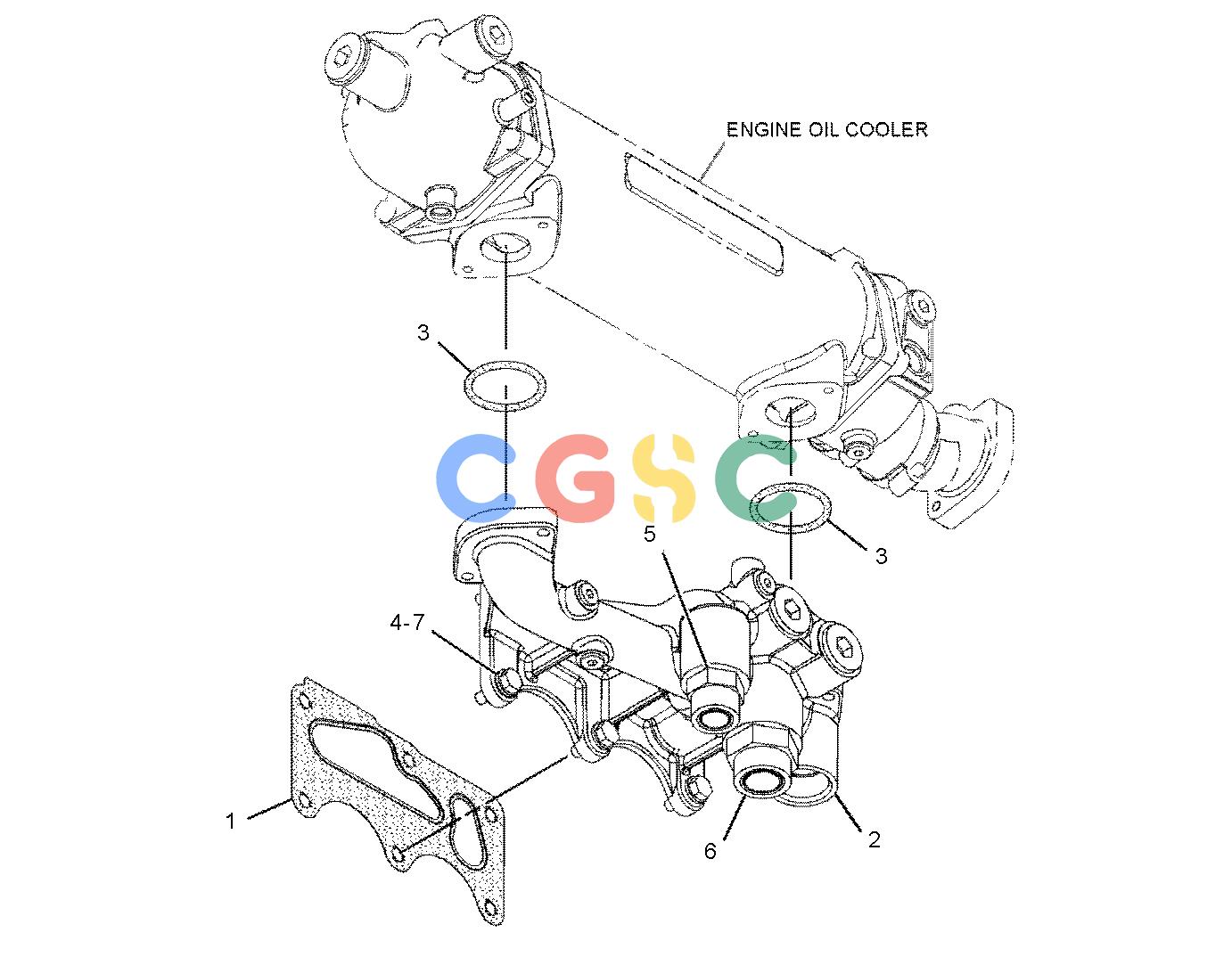

卡特零件查询（730C） 342-6070: BASE GP-OIL FILTER
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 336-2216 | [1] | GASKET-FILTER BASE | |
| 2. | 369-0818Y | [1] | BASE GP-OIL FILTER | |
| 3. | 113-5304 | [2] | SEAL-O-RING | |
| 4. | 134-5245M | [6] | BOLT(M10X1.5X30-MM) | |
| 5. | 309-5137 | [1] | CONNECTOR AS | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 228-7093 | [1] | SEAL-O-RING | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 6. | 330-9754 | [1] | CONNECTOR AS | |
| | 8T-3611 | [1] | CONNECTOR | |
| | 228-7094 | [1] | SEAL-O-RING | |
| | 228-7096 | [1] | SEAL-O-RING | |
| 7. | 6V-5839 | [6] | WASHER(11X21X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
